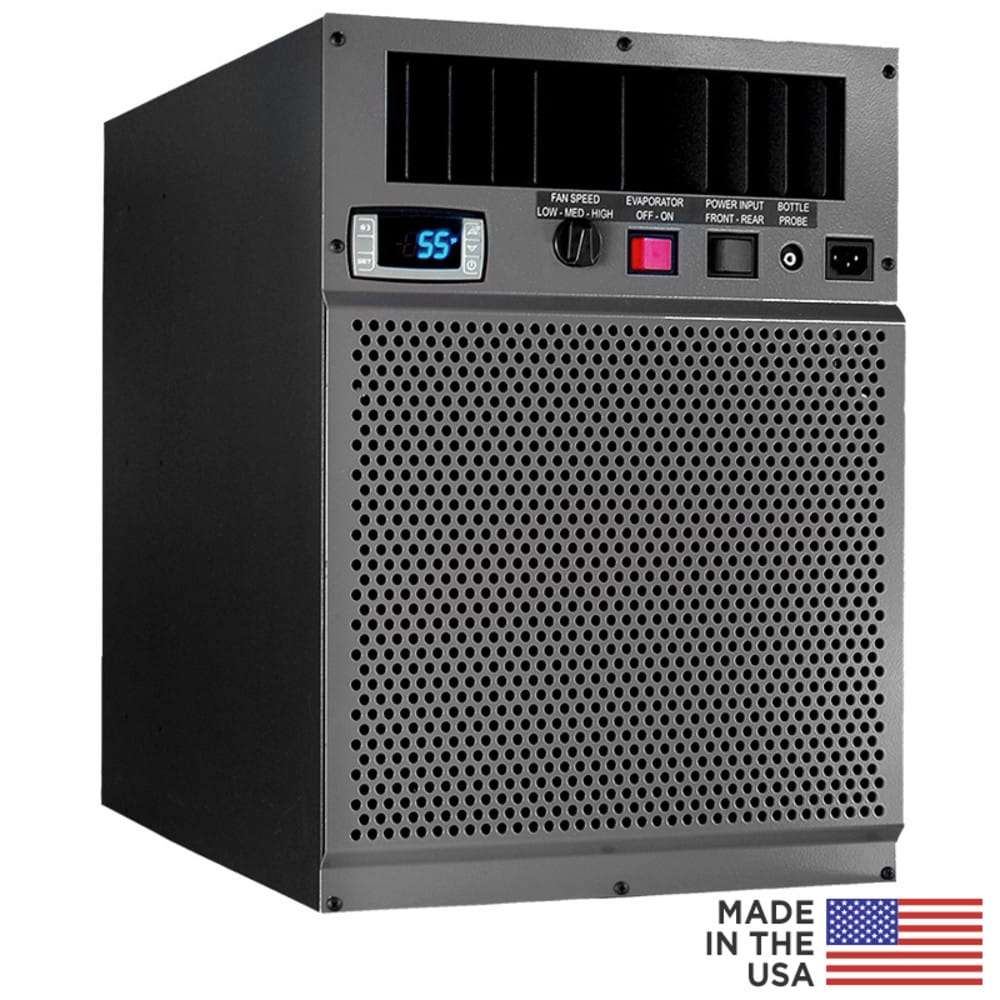

CellarPro 4200VSi-ECX-L Cooling Unit (P/N 2185). NOW WITH ENERGY-EFFICIENT EC FANS! CellarPro’s 4200VSi-ECX-L Wine Beer Cooler is engineered to maintain ideal temperature and humidity conditions for storage of expensive Leather products. 4200VSi-ECX-L Wine Beer Cooler uses an optimized compressor and oversized coils to generate cool, consistent 72-degree temperatures with minimal noise.
Wine Beer Cooler is made for indoor use only, 4200VSi-ECX-L units can operate in environments ranging from 110F to 40F out of the box. To operate the unit in colder temperatures, please see modifications listed on the Options & Upgrades tab.
All air-cooled refrigeration equipment requires fresh air intake to dissipate the heat generated by the cooling unit. The fresh air intake CANNOT come from the wine cellar space – it must come from space outside the cellar. The unit can be remotely located and ducted to/from the cellar using our cold-side duct hood, or located through a cellar wall (with or without a decorative grill – not included.)
CellarPro 4200VSi-ECX-L Cooling Unit (P/N 2185). CellarPro’s 4200VSi-ECX-L Wine Beer Cooler is made to maintain ideal temperature and humidity conditions for storage of expensive Leather products. 4200VSi-ECX-L Wine Beer Cooler an optimized compressor and oversized coils to generate cool, consistent 72-degree temperatures with minimal noise.
Designed for indoor use only, 4200VSi-ECX-L units can operate in environments ranging from 110F to 40F out of the box. To operate the unit in colder temperatures, please see modifications listed on the Options & Upgrades tab.
All air-cooled refrigeration equipment requires fresh air intake to dissipate the heat generated by the cooling unit. The fresh air intake CANNOT come from the wine cellar space – it must come from space outside the cellar.
- Now with energy-efficient EC Fans on both the cold and hot sides, save $191.58 in annual energy costs vs AC fans (assumes 75% runtime and $0.15/kWh)
- This Wine Beer Cooler can be configured to operate in extreme temperature conditions (-20 to 110F). If the unit’s location does not provide sufficient room for airflow, you may need to purchase a rear duct kit.
- Dual high-output centrifugal fans come with variable speed settings for your choice of maximum cooling power at the high fan speed, or super-quiet operation (53.7 decibels) at the low fan speed.
- Adjustable humidity control combines a high-output compressor with flexible fan cycles to maintain a recommended level of moisture inside your cellar.
- Extra-large coils generate maximum cooling power inside the cellar.
- Excess condensate is managed with a high-capacity stainless steel drain pan, welded 1/2″ drain line and 200W electric heating element with “On/Off” Control.
- Commercial-grade Electrofin coating protects the evaporator coils from leaks and corrosion.

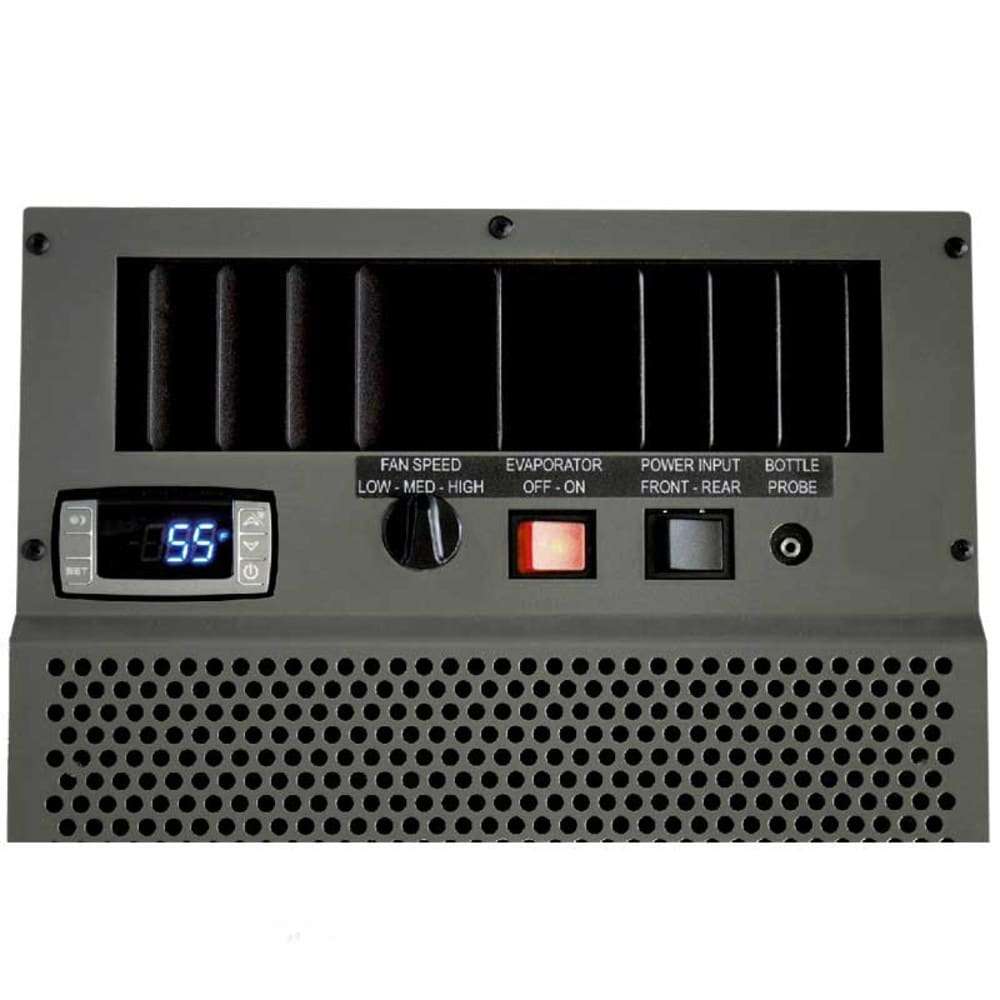

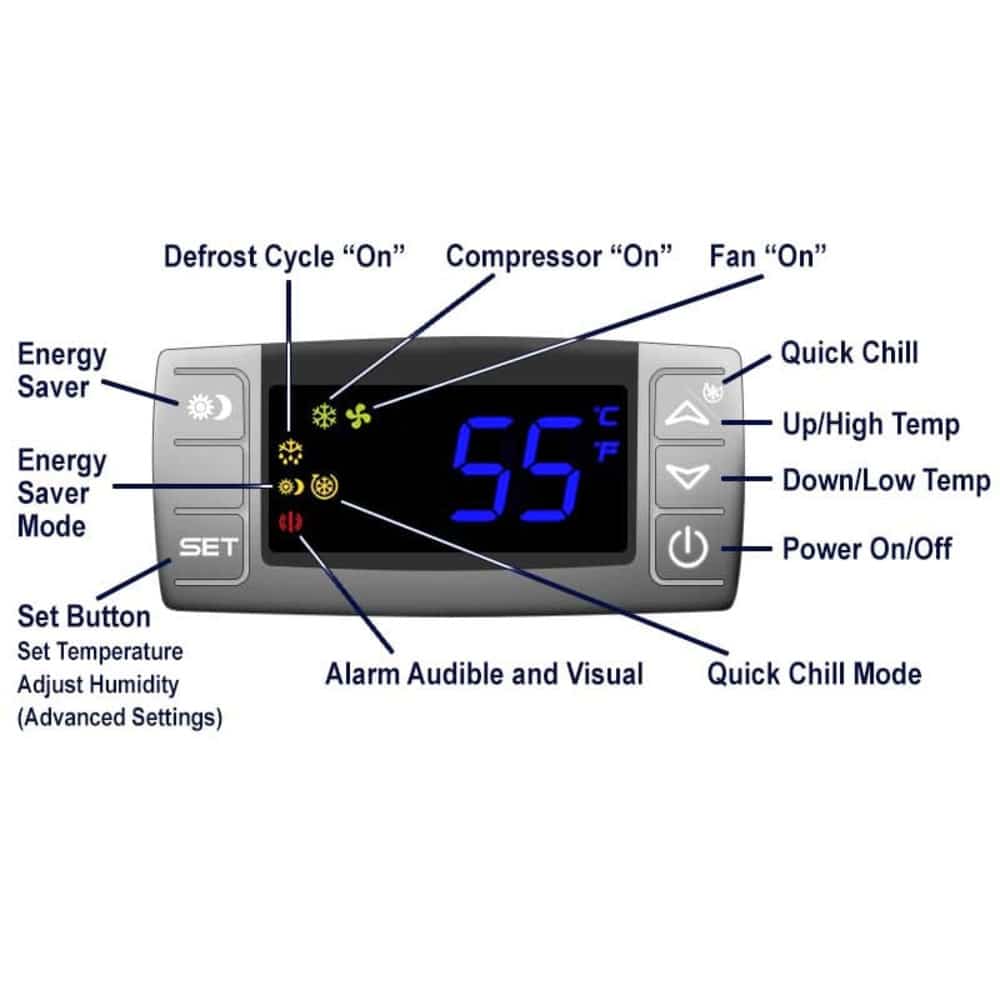

- Intuitive LED display panel mounted on the evaporator with digital programmable thermostat is simple and easy to use. Remote thermostat is available as an upgrade.
- Energy-saver mode, quick-chill mode, and auto-defrost cycle provide convenient solutions to common cellar needs.
- Temperature set point range is 60F to 78F when the cooling unit is properly sized.
- Wine Beer Cooler operates with minimal vibrations and less noise than comparable units from competitors.
- Audible and visual alarms and maintenance-needed indicator protect the cooling unit and the wine cellar.
- Common dedicated 15-amp circuit is required to power the unit.
- With dual power sources and a 10-foot power cord, the unit can be plugged into a receptacle from either the front or the rear of the cooling unit, providing flexibility for most installations.

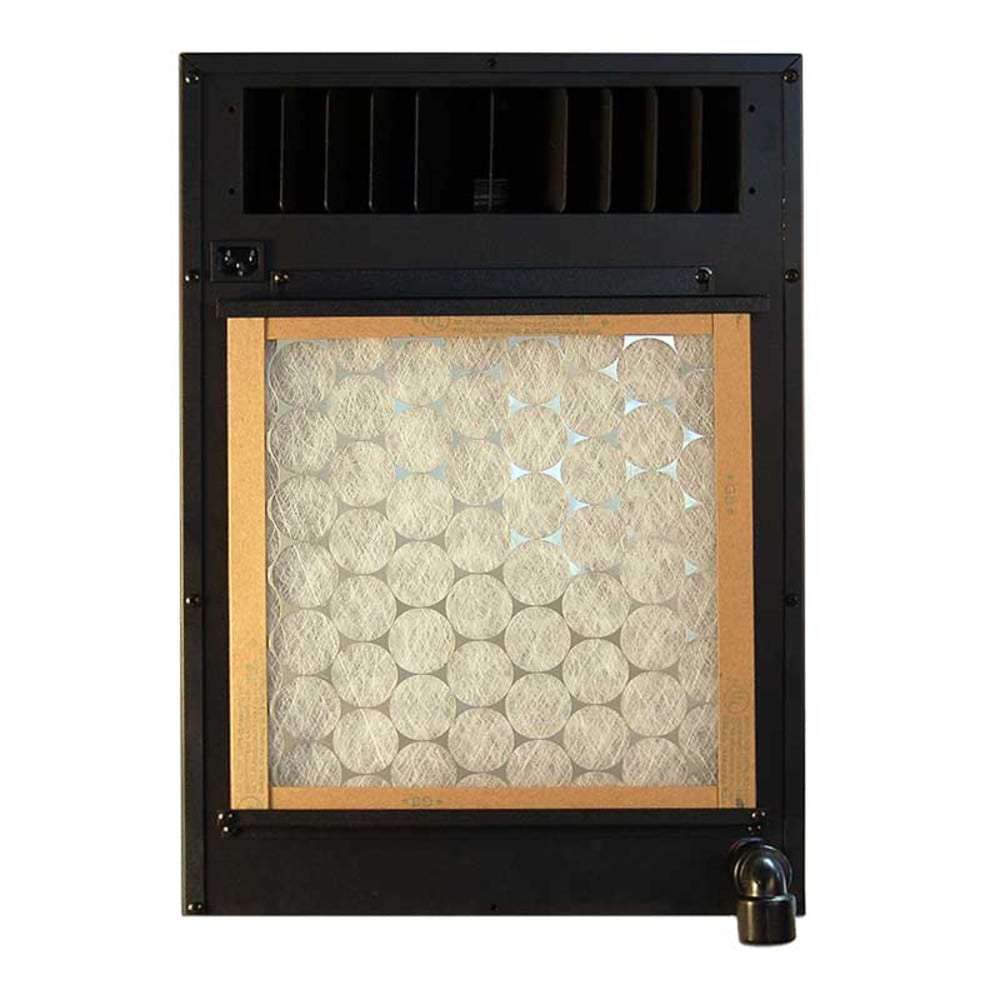

- Our easy-access disposable air filter protects the condenser coils and increases the expected useful life of the cooling unit.
- Adjustable mounting brackets, included as standard equipment, ensure easy installation.
- Removable steel case and refrigerant access valve provides access to the internal components for servicing and repair.
- CellarPro’s 5-Year Standard Warranty, the most thorough in the industry, protects the unit against manufacturing defects.
- An optional Extended Warranty (P/N 1836) is available for additional protection.
- ETL Tested and Certified to rigorous UL Standards for safety.
4905 SENSIBLE BTUH @ 72F.
CellarPro’s 4200VSi-ECX-L cooling unit is engineered to maintain cool, constant temperatures from 65-70F and relative humidity from 45-55% with limited fluctuations and ample airflow, which are ideal conditions for storing leather. Now with energy-efficient EC fans.
The BTU/h value shown here is a theoretical number. There are often circumstances under which a cellar design may require a larger unit due to variables not accounted for in the formula. For example, these variables could be building materials (such as glass, stone, concrete, etc.)
Which do not offer the insulation capacity required to maintain the optimal cellar environment. We recommend purchasing a unit with a larger capacity to compensate for these unaccounted-for variables. An undersized unit can lead to premature failure and will most likely prevent the cellar from reaching your desired temperature.
Brand: CellarPro
UPC: 077757021855
Size: 14 1/10w x 25 1/10d x 19 3/5h (in)
Weight: 155 lbs
Power/Rating:
115V AC / 60 Hz
Compressor Amps:
– Common dedicated 15-amp circuit is required to power the unit.
– Startup: 42.0 Amps
– Unit Amp Rating: 10.5 Amps (high fan speed)
– 1/2 Ton Nominal
– Total Watts: 578 (med fan speed)
Capacity: 4905 BTUH @ 72F*
Warranty Resources
– Warranty Overview
Cold Temperature
- Compressr Heater #1727: protects the unit when installed in environments that drop below 40F down to 20F.
- Fan Cyclin Switch #6972: supports the unit in temperatures below 20F and as low as -20F when combined with our compressor heater.
Duct Hoods
- Duct Hoods (Cold Side) (#7408 for low-humidity environments or #7427 for high-humidity environments) and Kits (#1476 for low-humidity environments or #7426 for high-humidity environments): permits the cooling unit to be located remotely, up to 50 equivalent feet away from the cellar.
- Duct Hood (Hot Side)#7407 and Kit #1113: allows you to install the unit completely inside your cellar or in a small space with limited airflow, up to 100 equivalent feet (50 feet per duct).
- Duct Kits are the same as Duct Hoods, and also include 2 x 25-feet of 8-inch insulated (R-6) flex ducting.
Filters & Grills
- Use our filter & grill guide to find the cooling unit filter or duct filter and/or duct grill that is appropriate for your cooling unit.
Remote Thermostats, Displays & Probes
- Networkable Thermostats #27346 and #27310: connect your cooling unit to a networkable, wi-fi enabled thermostat (sold separately). Must be ordered at the same time that the equipment is ordered. Other limitations apply – read the networkable thermostat description for more information. Includes 10 feet of wiring.
- Remote Display 1603: lets you place the digital panel wherever you want, whether inside or outside the cellar. Includes 10 feet of wiring.
- Bottle Probe #1434: this remote thermostat with a 10-foot cord overrides the thermostat on the face of the cooling unit, and allows it to monitor air or liquid temperatures at various locations inside the cellar.
- Extension cords available in 25-foot (#1780) and 50-foot (#1781) lengths.
DID YOU KNOW?
Nobody protects your wine cellar better than CellarPro Cooling Systems! In the event your cooling unit fails and the failed components are covered by our warranty, we’ll send a replacement cooling unit to you per the terms of our Replacement Unit Program
CellarPro Replacement Unit Program
If your CellarPro cooling unit fails and the parts that failed are still covered by warranty, we’ll send a replacement cooling unit to you, as follows:
- Your cooling unit must be registered at CellarPro
- Your cooling unit must have been properly sized, installed and maintained
- Your cooling unit may not have been permanently modified, damaged or disfigured
Please note:
- Replacement units are factory-refurbished cooling units with a similar build date as your original unit
- You are responsible for the shipping cost to send the replacement unit to you and return the original unit to us, and the cost (if any) to remove the original unit and install the replacement unit
- In order to send a replacement unit, we require a deposit, which will be refunded minus shipping costs upon the return and pending the inspection of the original unit
- If the original unit failed due to improper intallation or use, the failure is not covered by warranty and we will deduct the cost of the repairs from the refund of your deposit
