$3,395.00

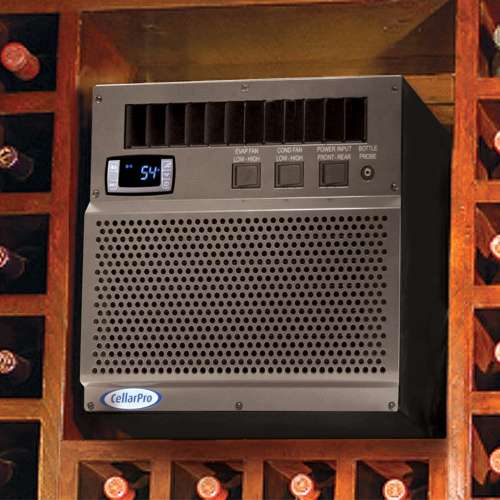

CellarPro 2000VSi-ECX
Through The Wall Cooling Unit
#27056

Free Shipping
*Shipments to AK and HI – Please call for a quote

1886 BTUH @ 55°F.
CellarPro’s 3200VSi cooling units (1/3 Ton Nominal) are suitable for wine cellars up to 800 cubic feet in both commercial and residential wine cellars. The 800 cubic feet cellar size assumes that the cellar is constructed with insulation of R19 or better in all walls and ceiling (ie no glass or uninsulated concrete), the cooling unit is not ducted, a setpoint of 55°F inside the cellar and ambient temperatures up to 85°F outside the cellar.

Description

1886 SENSIBLE BTUH @ 55F.
CellarPro 2000VSi-ECX Through Wall Wine Cellar Cooling Unit (1/5 Ton Nominal). These Through Wall Wine Cellar Cooling Unit use energy-efficient EC fans. And are made for low profile installations in commercial and residential wine cellars up to 400 cubic feet. (see assumptions below).

Features include:

  • Cold intake and exhaust exit from the front
    • Maximize racking below the cooling unit
    • Better air circulation inside the cellar
  • Low profile for maximum flexibility
    • Shallow height fits above doors: 13 1/5″ H
    • Shallow width fits in between studs: 14 1/8″ W
  • Variable-speed fan inside the cellar
    • 1886 SENSIBLE BTUH on high fan speed
    • 1713 SENSIBLE BTUH on low fan speed
  • Variable-speed fan outside the cellar
    • 110F maximum intake temperature / 61.5 dBA on the high fan speed
    • 100F maximum intake temperature / 55.5 dBA on the low fan speed
  • Cooling unit can be ducted on hot, cold or both sides
    • To duct, our OEM duct hoods are required
    • Cold side ducting should be insulated to R6 or better, and all corners must use rigid ducting
  • Condensate management system
    • Oversized stainless-steel drain pan
    • 1/2″ ID drain line for excess condensate
    • 100W heating element
  • Choice of power source
    • Front or rear
    • Removable 10-ft cord
  • Optional remote display
  • Optional bottle probe

*Assumptions for 400cf are:

  • the cellar is constructed with insulation of R19 or better in all walls and ceiling (ie no glass or uninsulated concrete),
  • the cooling unit is not ducted, a setpoint of 55F inside the cellar and
  • ambient temperatures up to 85F outside the cellar

Our cooling units are designed to be used in properly-constructed wine cellars that are adequately insulated, airtight and sealed with a vapor barrier. In improperly-constructed cellars, the cooling unit will create excess condensation, leading to damage and premature failure of your cooling unit (not covered by warranty).

Configurations

Configurations

  • CellarPro 2000VSi-ECX units are self-contained. Fully-charged units made to be attached to the ceiling inside the cellar, or above the cellar.
  • 2000VSi-ECX  units also can be located remotely from the cellar with the addition of one of our cold-side duct packages. Sold with or without insulated flex ducting, in a choice of configurations for low or high humidity conditions. Our cold-side duct packages allow these cooling units to be ducted up to 50 equivalent feet.  (25′ per duct). Ducting must be 8-inch (or greater) from start to finish.
  • When calculating equivalent feet, each 90-degree turn counts for 8 feet.
  • For remote or inaccessible installations, we offer a remote control display kit. Which is wired to the cooling unit and allows the digital display to be mounted inside or outside the cellar.
  • 2000VSi-ECX cooling units require fresh air intake without interference from the unit’s hot air exhaust. If sufficient space does not exist to provide fresh air, you may need our hot-side duct kit.
  • If the fresh air intake (on the hot side) will pull air below below 40F, the cooling unit will require our Compressor Heater
  • If the fresh air intake (on the hot side) will pull air below 20F down to -20F, we recommend our Fan-Cycling Switch (P/N 6972) combined with our compressor heater.
  • The cooling unit should never be exposed to temperatures below 32F.
  • A CellarPro cooling unit must always be used in the upright position, and should never be operated on its side or upside down.

Specs & Resources

Brand: CellarPro

UPC: 077757270567

Size: 14.1w x 22 1/4d x 13 1/4h (in)

Weight: 72 lbs

Power/Rating:
115V AC / 60 Hz
Compressor Amps:
– Startup (LRA): 22.2 Amps
– Unit Amp Rating: 4.02 Amps
– Total Watts with Fans on Low: 305
– Total Watts with Fans on Low: 305
– Compatible with Dedicated 15-Amp Circuit

BTUH @ 55F:
– Low Fan Speed: 1713 BTUH
– High Fan Speed: 1886 BTUH
– 1/4 Ton Nominal

PLACEMENT REQUIREMENTS
– 110F Max Intake Temperature / 61.5 dBA (high fan speed)
– 100F Max Intake Temperature / 55.5 dBA (low fan speed)

Warranty Resources
– Warranty Overview

Click on one of the following links for more information:

WARNING - This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Features

CellarPro 2000VSi-ECX Cooling Unit (P/N 27056). CellarPro made the low profile 2000VSi-ECX Through Wall Wine Cellar Cooling Unit. Specifically for installations in wine cellars with limited space.

Just 14 1/8-inches wide and 13 1/4-inches tall. The 2000VSi-ECX cooling unit will fit in between studs and/or above door frames. Dual independent variable-speed fans offer flexibility to trade-off between super-quiet operation vs maximum performance.

All air-cooled refrigeration equipment requires fresh air intake to dissipate the heat generated by the cooling unit. The fresh air intake CANNOT come from the wine cellar space. It must come from space outside the cellar.

Before purchasing this Through Wall Wine Cellar Cooling Unit. Let us calculate the thermal load of your wine cellar.

  • Features energy-efficient EC Fans on both the cold and hot sides
  • Intuitive LED display panel mounted on the evaporator with digital programmable thermostat is simple and easy to use. Remote thermostat is available as an upgrade
  • Adjustable humidity control combines a high-output compressor with flexible fan cycles to maintain a recommended level of moisture inside your cellar.
  • Commercial-grade Electrofin coating protects the evaporator and condenser coils from leaks and corrosion.
  • Low profile for maximum flexibility
  • Shallow height fits above doors: 13 1/4″ H
  • Shallow width fits in between studs: 14 1/8″ W
  • Variable-speed fan inside the cellar
    • 1886 BTUH on high fan speed
    • 1713 BTUH on low fan speed
  • Variable-speed fan outside the cellar
    • 110F maximum intake temperature / 61.5 dBA on the high fan speed
    • 100F maximum intake temperature / 55.5 dBA on the low fan speed
  • Condensate management system
    • Oversized stainless-steel drain pan
    • 1/2″ ID drain line for excess condensate
    • Optional 100W heating element
  • Energy-saver mode, quick-chill mode, and auto-defrost cycle provide convenient solutions to common cellar needs.
  • Temperature set point range is 47F to 62F when the cooling unit is properly sized.
  • Unit operates with minimal vibrations and less noise than comparable units from competitors.
  • Audible and visual alarms and maintenance-needed indicator protect the cooling unit and the wine cellar.
  • With dual power sources and a 10-foot power cord, the unit can be plugged into a receptacle from either the front or the rear of the cooling unit, providing flexibility for most installations.
  • Common dedicated 15-amp circuit is required to power the unit.
  • Our easy-access air filter protects the condenser coils and increases the expected useful life of the cooling unit.
  • Adjustable mounting brackets, included as standard equipment, ensure easy installation.
  • Removable steel case and refrigerant access valve provides access to the internal components for servicing and repair.
  • CellarPro’s 5-Year Standard Warrantythe most thorough in the industry, protects the unit against manufacturing defects.
  • An optional Extended Warranty (P/N 1836) is available for additional protection.
  • ETL Tested and Certified to rigorous UL Standards for safety.

Options & Upgrades


Cold Temperature

  • Compressor Heater #1727: protects the unit when installed in environments that drop below 40F down to 20F.
  • Fan Cycling Switch #6972: supports the unit in temperatures below 20F and as low as -20F when combined with our compressor heater.

Condensate Management

  • 100W Heating Element#27318: Designed to burn off condensate to reduce or eliminate condensate flow exiting from the drain line. INCLUDED AS STANDARD EQUIPMENT.


Duct Hoods

  • Cold Side Duct Hood #27107and Kit#27104: Cold side ducting permits the cooling unit to be located remotely and duct the airflow up to 50 equivalent feet (25′ per duct). Cold-side ducting must be 8″ (or greater) from start to finish. Hot side ducting permits the unit to be installed in a small space and use ducting for airflow up to 50 equivalent feet (25′ per duct). Hot-side ducting must be 8″ (or greater) from start to finish.
  • Hot Side Duct Hood #27111 and Kit #27106: allows you to install the unit in a small space with limited airflow, and duct the airflow up to 50 equivalent feet (25 feet per duct)
  • Duct Kits are the same as Duct Hoods, and also include 2 x 25-feet of insulated (R-6) flex ducting.
  • The duct items above are designed for installation in climate-controlled environments. Choose our High RH duct hood #27108 or kit #27105 for installation in environments that are NOT climate controlled.


Filters & Grills

  • Use our filter & grill guide to find the cooling unit filter or duct filter and/or duct grill that is appropriate for your cooling unit.


Remote Thermostats, Displays & Probes

  • Networkable Thermostats #27346 and #27310: connect your cooling unit to a networkable, wi-fi enabled thermostat (sold separately). Must be ordered at the same time that the equipment is ordered. Other limitations apply – read the networkable thermostat description for more information. Includes 10 feet of wiring.
  • Remote Display #1603: lets you place the digital panel wherever you want, whether inside or outside the cellar. Includes 10 feet of wiring.
  • Bottle Probe #1434: this remote thermostat with a 10-foot cord overrides the thermostat on the face of the cooling unit, and allows it to monitor air or liquid temperatures at various locations inside the cellar.
  • Extension cords available in 25-foot (#1780) and 50-foot (#1781) lengths.

DID YOU KNOW?
Nobody protects your wine cellar better than CellarPro Cooling Systems! In the event your cooling unit fails and the failed components are covered by our warranty, we’ll send a replacement cooling unit to you per the terms of our Replacement Unit Program

CellarPro Replacement Unit Program
If your CellarPro cooling unit fails and the parts that failed are still covered by warranty, we’ll send a replacement cooling unit to you, as follows:

  1. Your cooling unit must be registered at CellarPro
  2. Your cooling unit must have been properly sized, installed and maintained
  3. Your cooling unit may not have been permanently modified, damaged or disfigured

Please note:

  • Replacement units are factory-refurbished cooling units with a similar build date as your original unit
  • You are responsible for the shipping cost to send the replacement unit to you and return the original unit to us, and the cost (if any) to remove the original unit and install the replacement unit
  • In order to send a replacement unit, we require a deposit, which will be refunded minus shipping costs upon the return and pending the inspection of the original unit
  • If the original unit failed due to improper installation or use, the failure is not covered by warranty and we will deduct the cost of the repairs from the refund of your deposit



Additional information

Brand

CellarPro

SPECS

Capacity: 3040 BTUH @ 55F Size: 14.1 W x 25.1 D x 19.6 H (in) Weight: 92 lb Power/Rating: 115V AC / 60 Hz Compressor Amps: – Startup: 30.0 Amps – Unit Amp Rating: 9.2 Amps (high fan speed) – Total Watts with Evaporator On / Med Fan: 808 – Total Watts with Evaporator Off / Med Fan: 608 – Compatible with Dedicated 15-Amp Circuit 1/4 Ton Nominal Warranty: 2 Years (Entire System) / 5 Years (Compressor) Optional Extended Warranty

Configurations

1. Ceiling Mount/Wall Mount/Floor Mount – Through the Wall 2. Front Ducted – Unit located remotely with supply and return air from cellar ducted 3. Front and Rear Ducted – Unit located remotely with supply and return air from cellar ducted. Ambient and exhaust air through rear duct. 4. In Wine Cellar – Ambient and exhaust air through rear ducting adapter

Btu

1886
