$1,035.00

CellarPro 3200/4200 VS & Split
Duct KIT (Cold Side) Low Relative Humidity
#1476

Shipping $85.00

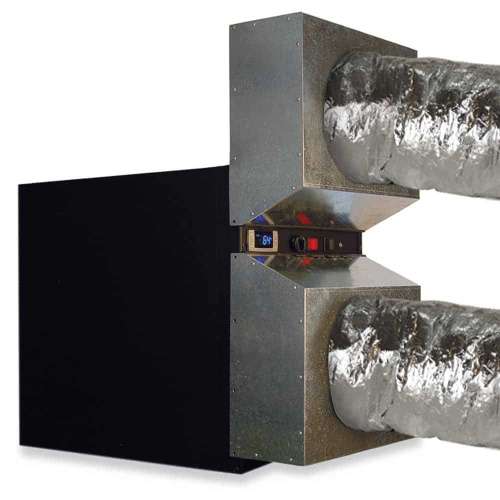

CellarPro VS / Split Duct KIT (Cold Side) Low RH. Duct openings are designed to attach to two 8-inch ducts for evaporator intake and exhaust. Ducting should be 8-inch or greater from start to finish, and must not be reduced. Custom design allows access to controls and switches on the face of the cooling unit.

Requires 9 inches of additional height at the front of the cooling unit.

Kit includes: Duct hood, 50 feet (2×25) of 8-inch insulated (R-6) ducting, remote display kit and bottle probe.

The high fan speed setting is required when our unit is ducted.

Description

Custom duct kit for CellarPro 3200 / 4200 VS and 3000S / 4000S Split Refrigeration Systems. With this kit, the cold air intake/exhaust can be ducted up to 100 equivalent feet (50 feet per opening).

Only recommended for use in low humidity environments. Please use our high-humidity duct kit if the system will be used in a warm, moderate or high humidity environment.

  • Attaches easily to the front of 3200/4200 VS and 3000S/4000S Split refrigeration systems
  • Provides access to cooling unit control panel and switches
  • Designed for easy hook-up to 8″ ducting
  • One or both openings may be ducted (total of 100 equivalent feet)
  • Bottle probe with 10′ cord plugs into face of the cooling unit
  • Maintains accurate temperatures inside the wine cellar
  • Designed to be used in Low Humidity environments

Configurations

Please refer to the following resources before purchasing this kit:
This kit may only be used in conditioned, low humidity environments. Use our Low RH vs High RH Duct Kit Chart to determine whether this kit is appropriate for your installation. In some cases, the high-humidity duct hood may be required, and in some cases, the conditions are too extreme for any of our cold-side duct kits.
Use our ducting heat loss table and our duct correction table to correctly adjust the sizing of your cooling unit, because ducting will add to the thermal load of the cellar.
Refer to our Bottle Probe Operating Instructions to correctly set the cooling unit depending on how you’re using the Bottle Probe

Specs & Resources

Brand: CellarPro

UPC: 077757014765

Size: 14 1/4w x 4 3/4d x 27 1/2h (in)

Weight: 35 lbs

Capacity: 100 Equivalent Feet

Warranty:
1 Year

Click on one of the following links for more information:

Features

Custom duct kit for CellarPro 3200 / 4200 VS and 3000S / 4000S Split Refrigeration Systems. With this kit, the cold air intake/exhaust can be ducted up to 100 equivalent feet (50 feet per opening).

Only recommended for use in a conditioned and low-humidity environment. Please use our high-humidity duct kit if the system will be used in an unconditioned space with warm temperatures and/or,moderate , unconditioned or high humidity conditions.

  • Attaches easily to the front of 3200/4200 VS and 3000S/4000S Split refrigeration systems
  • Designed to be used in Low Humidity environments
  • Provides access to cooling unit control panel and switches
  • Designed for easy hook-up to insulated 8″ ducting (included)
  • Both openings must be ducted (total of 100 equivalent feet) to/from the cellar
  • Maintains accurate temperatures inside the wine cellar
  • Includes our remote thermostat bottle probe (measures air or liquid temperatures)
  • Includes our remote control display kit



Additional information

SPECS

Capacity: 100 Equivalent Feet Size: 14 3/16w x 4 11/16d x 27 1/2h (in) Weight: 35 lb
