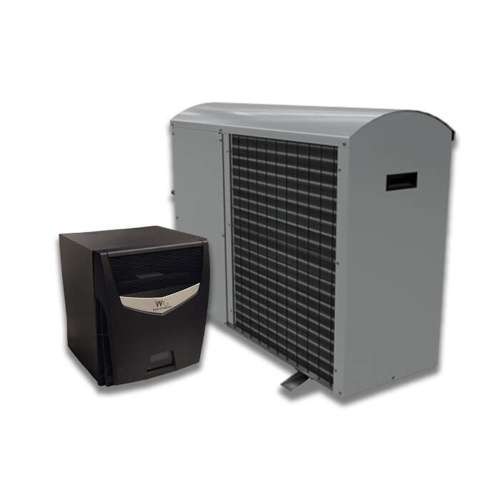

Wine Guardian SS018 – DUCTLESS SPLIT SYSTEM

$5,910.00

  • BTU/H: 2,520 BTU/h
  • Dimensions: Length: 13.31″ , Width: 14.25″ , Height: 15.87″
  • Space-saving through-the-wall mounting while providing the flexibility of a split system

Wine Guardian SS018 Ductless Split Cooling System is an entirely new, cutting-edge system. It’s versatile enough for either surface mounting or space-saving through-the-wall mounting while providing the flexibility of a split system. The Wine Guardian wine cellar ductless split system offers high ambient protection in a sleek, newly styled condensing unit. The condensing unit comes in a small footprint, giving it the ability to mount to a variety of structures.

Request Free Heatload Calculation to choose the best wine cooling unit.

Standard Features

  • Commercial-grade, corrosion-resistant construction for long-term durability
  • Fan-coil can be mounted through-the-wall or surface mount— exclusive to this unit
  • Condensing unit operating capacities from 40°F/4°C to 115°F/46°C
  • Condensing unit standard with outdoor enclosure
  • Small footprint— fan coil fits well within racking or above a doorway
  • Quiet and efficient operation
  • Adjustable louvers

Options

BTU/H RATING

2,520

The BTU/h value shown here is a theoretical number. There are often circumstances under which a cellar design may require a larger unit due to variables not accounted for in the formula. For example, these variables could be building materials (such as glass, stone, concrete, etc.)

Which do not offer the insulation capacity required to maintain the optimal cellar environment. We recommend purchasing a unit with a larger capacity to compensate for these unaccounted-for variables. An undersized unit can lead to premature failure and will most likely prevent the cellar from reaching your desired temperature.

Model

SS018 (TTW)

Line Frequency

60 Hz

Capacity

400 – 2800 BTU

Volume

100 – 1200 ft³

Length

13.31″
34″ (condenser)

Width

14.25″
12.3″ (condenser)

Height

15.87″
26″ (condenser)

Weight

25 lbs
75 lbs (condenser)

Electrical

115/1/60
