$8,655.00

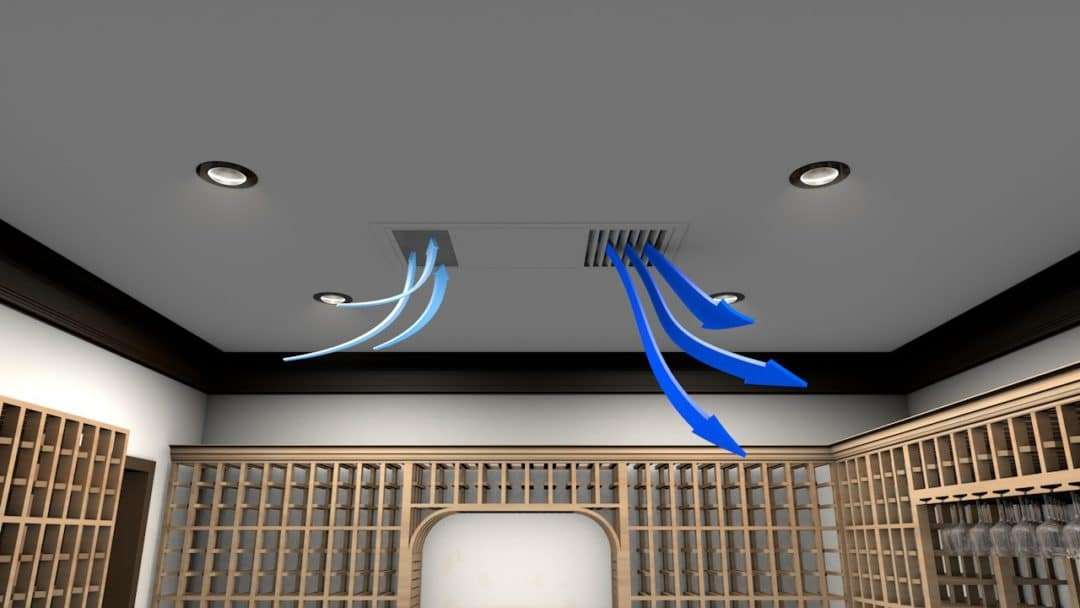

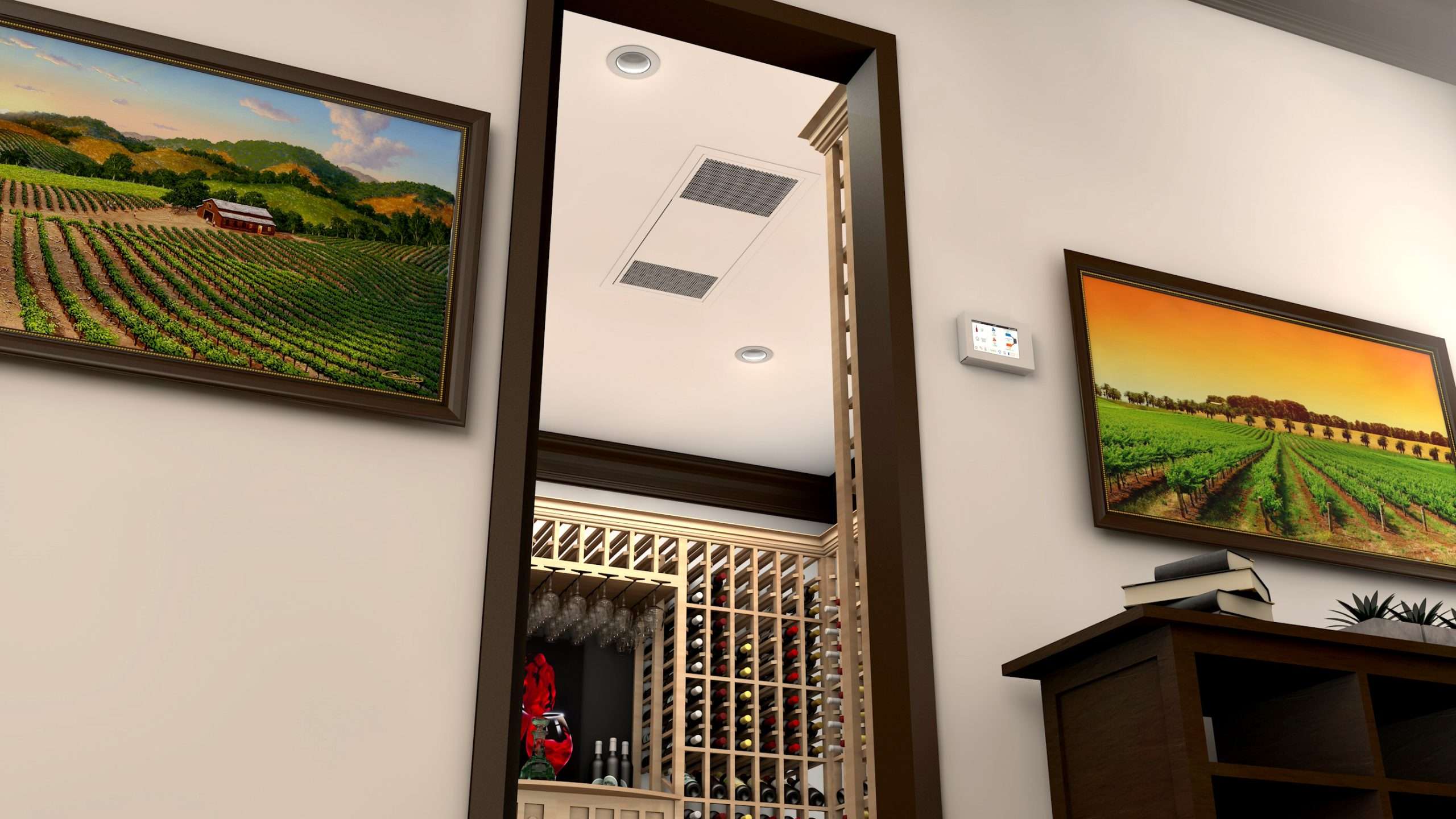

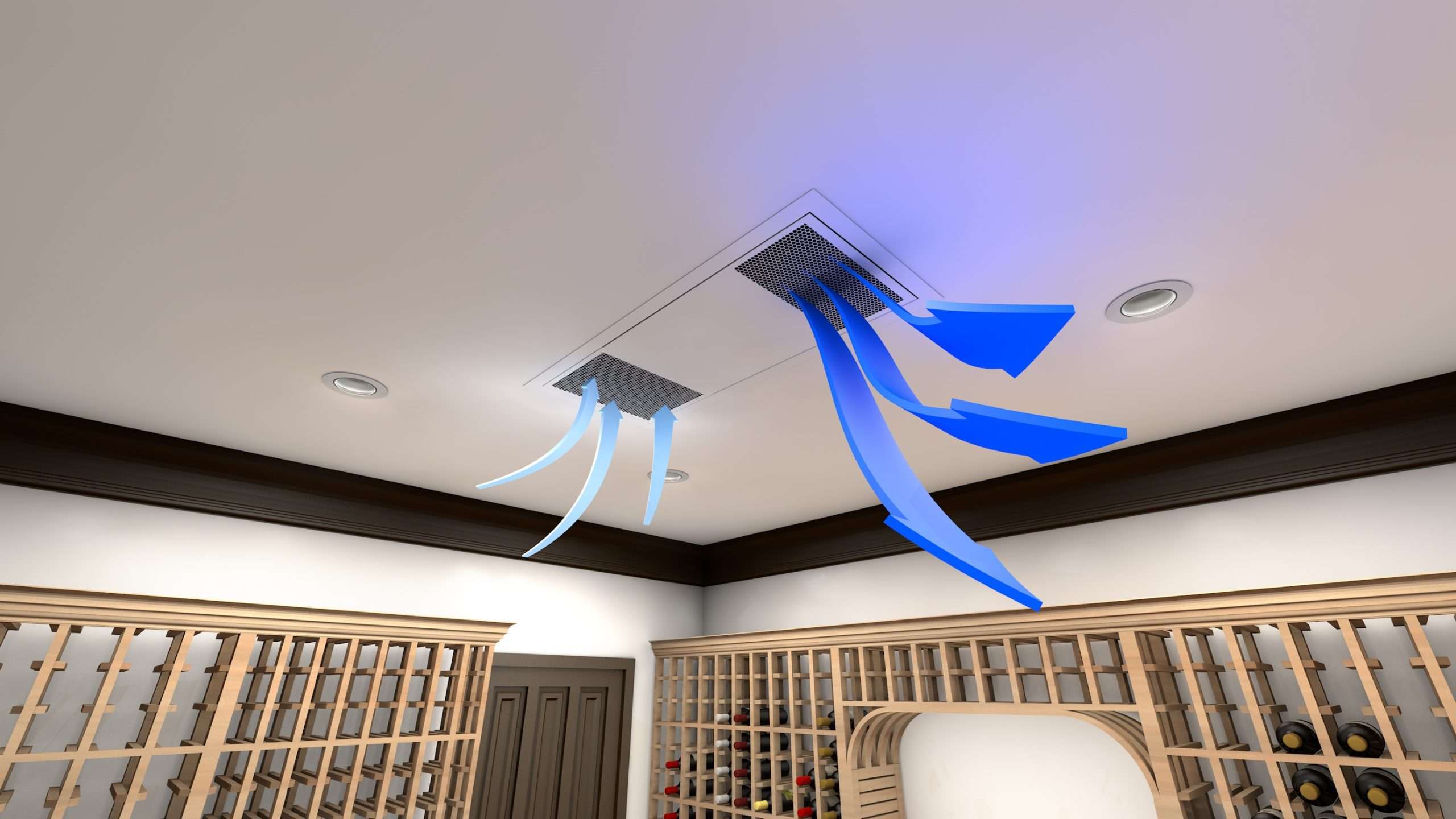

At WhisperKOOL, we have created Ceiling Mounted Ductless Mini Split evaporator because we want you to experience KOOL without seeing it. Your wine should be the center of attention, not a cooling unit.
Technicians and installers will be happy to hear that the electrical wiring, bottle probe wiring, and the line set are all located at the bottom of the unit, rather than the top. Not only are the essential components relocated and easier to access, flare fittings will now be utilized so that there is no brazing needed in the field.
The redesign includes e-coated duramax evaporator coils which will improve system performance, and a new looking hex mesh grille with an air filter to protect the unit from the intake of potentially harmful debris during the initial start-up.
5254 – 6411
The BTU/h value shown here is a theoretical number. There are often circumstances under which a cellar design may require a larger unit due to variables not accounted for in the formula. For example, these variables could be building materials (such as glass, stone, concrete, etc.) that do not offer the insulation capacity required to maintain the optimal cellar environment. We recommend purchasing a unit with a larger capacity to compensate for these unaccounted-for variables. An undersized unit can lead to premature failure and will most likely prevent the cellar from reaching your desired temperature.
EVAPORATOR
Model 8000
Cellar Size 2000 cu. ft.*
Fan Speed Medium | High
BTU/h (60°F condenser air intake temperature) Sensible / Total 5305 / 6264 | 5411 / 6411
BTU/h (75°F condenser air intake temperature) Sensible / Total 5114 / 5498 | 5217 / 5615
BTU/h (85°F condenser air intake temperature) Sensible / Total 5064 / 5358 | 5157 / 5544
dBA 48 | 53
Dimensions 35.75”L x 14.5”W x 12.75”H
Refrigerant R-134a
Voltage Rating 120V (15-amp dedicated circuit required)
Weight (lbs) 66
Amps 1.4 (Running Amps)
Drain Line 1/4″ ID clear plastic tubing (not provided) – Rigid tube recommended
Installation Evaporator unit is installed in the cellar. Condensing unit can be installed up to 100 line feet from the evaporator unit.
Thermostat Advanced digital display (50-ft. cable), liquid-temperature-measuring bottle probe (50-ft. cable), 24V – customer supplied
Temp. Delta Can maintain a 55°F cellar temperature with up to 120°F condenser air intake temperature
Warranty Two-year limited warranty (parts and labor)
CONDENSER
Model 8000
dBA 48
Dimensions 31.18″L x 10.75″W x 21.18″H
Condensing Unit HP 0.7HP
Voltage Rating 220V (15-amp dedicated circuit required)
Weight (lbs) 56
Amps LRA 13.2, RLA 3.19, FLA 3.66
Line Set Liquid line 1/4” OD; Suction line 1/2” OD (less than 50 ft.), 5/8” (greater than 50 ft.)
Installation Evaporator unit is installed in the cellar. The condensing unit is installed up to 100 line feet from the evaporator unit.
Temp. Delta Can maintain a 55°F cellar temperature with up to 120°F condenser air intake temperature.
Warranty Two-year limited warranty (parts and labor)
The ΩMEGA 110V H.E. Condenser is WhisperKOOL’s innovative solution for high-performance, reliable wine cellar cooling. Designed for maximum energy efficiency and ease of installation, this condenser is ideal for diverse applications and environmental conditions.
The 220V High Efficiency Condensers offer a host of advantages over our traditional 110V condensers, including simplified installation, ultra-quiet operation, energy efficiency, & ability to operate in extreme climates.
