Wine Guardian SP25 PRO Sentinel – Split System Unit – 1/4 TON

  • High and low ambient temp protection
  • Electric heater option
  • 24 Volt – Compatible with Smart Thermostats
  • 5 Year Compressor Warranty
  • Made in the USA

Options:

  • Electric Heat Option: Protects wine cellar from low-temperature conditions.
  • Water-cooled Configuration

Description

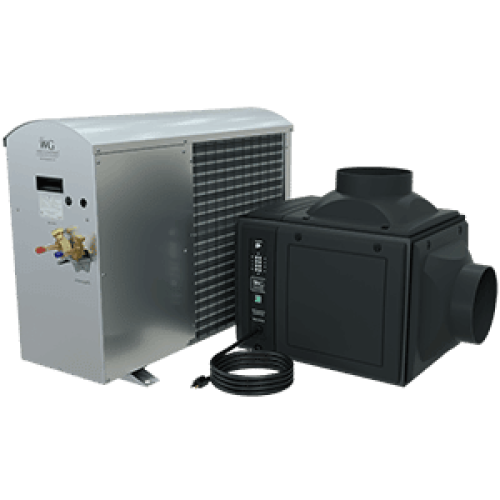

Wine Guardian PRO SP25 is a Wine Cellar Split System for specialty cooling applications like fur storage, instrument storage, and computer closets. Split Wine Cooling Systems are a perfectly-paired condensing unit and evaporator section. That comes standard with features such as electric heat and high ambient protection.

This Wine Guardian PRO SP25 Wine Cellar Split System has a max capacity of 4,140 BTU/H. The SP25 is compatible with modern smart thermostats and features enhanced refrigeration controls. Wine Guardian PRO SP25 cooling units are the most versatile specialty cooling systems on the market. Applications include wine cellars, art or document preservation, instrument or fur storage, computer closets, niche environments, and more.

These wine cooling units can be used in nearly any application.

  • 3,760-15,680 BTU/H capacity

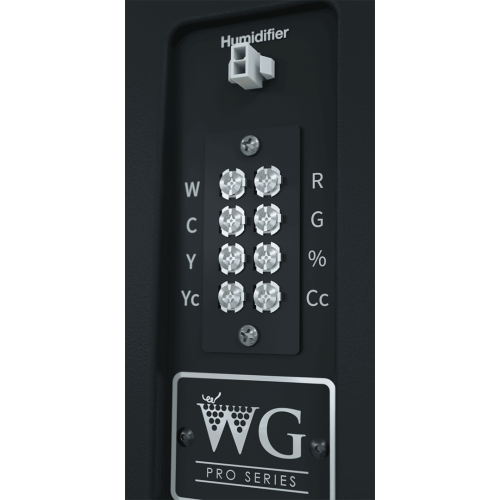

  • 24-volt electronics for use with today’s smart thermostats and building management systems
  • High- and low-pressure safety switches
  • Refrigerant sight glass, filter drier, and access ports
  • Duct collar connections
  • Low ambient protection
  • High ambient protection (on limited models)
  • 5-year compressor warranty

Versatility

  • Utility piping in one easily accessible location
  • Multiple evaporator and condenser outlet locations (Any of three sides)
  • Easily mountable in floor, ceiling, or wall applications
  • Duct collars on supply & return and intake & exhaust

Quality

  • Aluminum body and all-aluminum evaporator coils (fins & tubes) are corrosion-resistant
  • Standard high static pressure fan for extended lengths of ductwork
  • Completely serviceable in the field

Options

  • Bolt-on humidifier
  • Electric heat
  • Water-cooled or air-cooled

Wine Cellar Split System Specifications

Specifications For Wine Guardian PRO SP25

Condenser

  • Height: 26 in
  • Width: 34 in
  • Depth: 12 in body / 16 in base
  • Weight: 57 lbs
  • Capacity: 3,400 BTUH
  • Electrical Requirements: 115 Hz

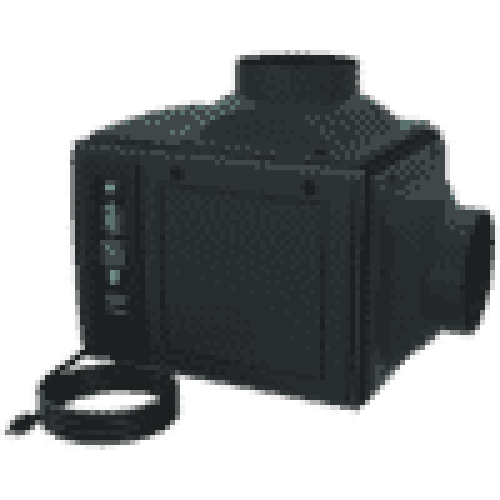

Evaporator

  • Height: 14.25 in
  • Width: 16.75 in
  • Depth: 14 in
  • Weight: 25 lbs

BTU/H Rating

3485

The BTU/h value shown here is a theoretical number. There are often circumstances under which a cellar design may require a larger unit due to variables not accounted for in the formula. For example, these variables could be building materials (such as glass, stone, concrete, etc.)

That do not offer the insulation capacity required to maintain the optimal cellar environment. We recommend purchasing a unit with a larger capacity to compensate for these unaccounted-for variables. An undersized unit can lead to premature failure and will most likely prevent the cellar from reaching your desired temperature.

Manual / Warranty

PRODUCT BROCHURE (PDF)

PRODUCT OPTIONS(PDF)

Spec Sheet (PDF)

Owners Manual (PDF)

Warranty (PDF)



Additional information

Specs

Model: SS025 Capacity: 400-2,000 cubic feet Fan Coil: Length: 14″ Width: 17″ Height: 14″ Electrical 115v/1ph/60hz Weight: 25 lbs. Condensing Unit: Length: 24″ Width: 19″ Height: 18″ Electrical 115v/1ph/60hz Weight: 85 lbs.

Brand

Wine Guardian
