WhisperKOOL
Fully Ducted Extreme 8000tiR
2000 Cubic Feet

$6,689.00

Free Shipping

SKU: U-WKEX8000-115-FD-4 Category:

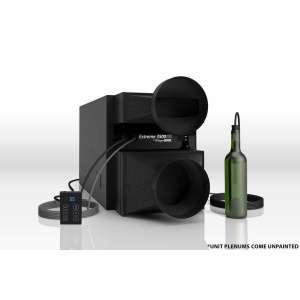

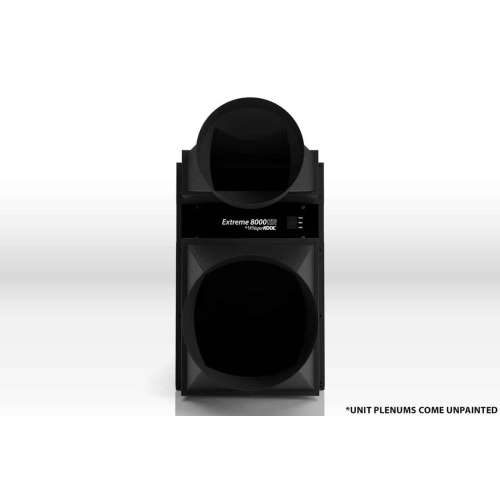

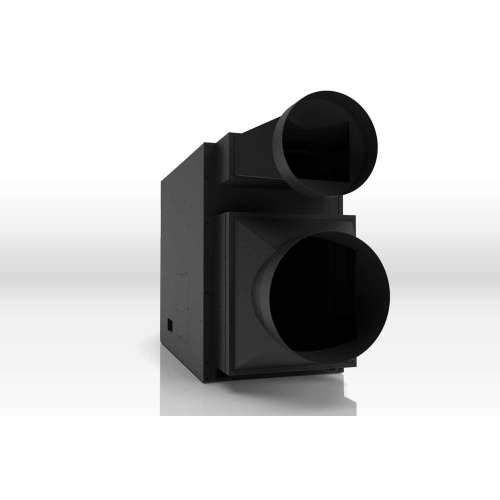

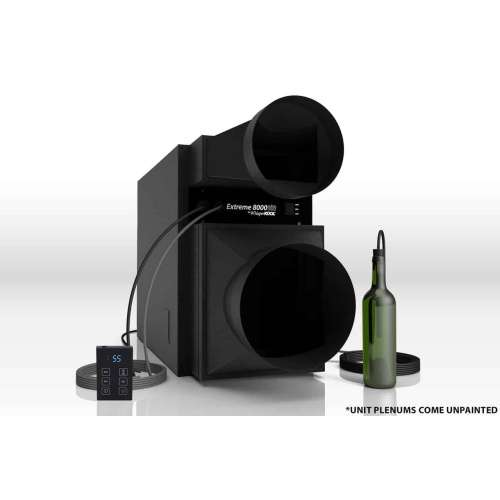

The Whisperkool Fully Ducted Extreme Series 8000tiR wine cellar cooling unit can be positioned up to 25 ducted feet from the cellar, creating a noise-free cellar environment. The fully ducted installation provides many installation options, allowing you to not only put the unit in more remote areas of the home but also have full control of where the exhaust air vents to. The Extreme series features an advanced liquid temperature controller with a remote LED display (which can be placed up to 300 line feet from the unit) and an electronic thermostat. Maintain 55°F and 50-70% relative humidity in cellars up to 2000 cu. Ft.

Features:

  • The cooling unit can be located up to 25 ducted feet from the cellar
  • Selectable 3-speed fans
  • Extreme Series Technology provides reliable starting and running performance, even under the most extreme outdoor conditions
  • Fits neatly between wall studs for quick and simple installation
  • Advanced electronic display
  • Remote digital LED readout w/ 50ft. communication line
  • New Built-in Humidity Option adds moisture to dry wine cellar environment.
  • Liquid bottle probe
  • Superior Humidity control allows the system to manage the moisture for improved wine quality
  • Two-year parts and labor warranty
  • Maintains 55 degrees and 50-70% humidity in cellars up to 800 cu ft.
  • Designed to blend seamlessly within cellar racking
  • Oversized coils
  • Noise-free cellar environment
  • Durable finish

WhisperKOOL does not provide a smart thermostat upon purchase of your Extreme tiR 8000. By selecting the 24V Thermostat Conversion Kit, you have acknowledged that the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. You will have to source and purchase your own 24V smart thermostat to run the equipment. The WhisperKOOL Customer Satisfaction Team does not provide technical support for smart thermostats.

One of the main things we like to focus on at Cool Wine Cellar is creating fascinating custom wine cellars that go beyond simple wine racks. Stunning wine cellar doors, custom wine cellar lighting, and beautiful wood shelves are just some of the great items that allow us to create a space for you to store, display, and above all, enjoy your wine collection with family and friends. Traditional wood wine cellars, glass and steel wine cellars, contemporary wine cellars, tasting centers, and custom wine cellar cabinetry are some of the fantastic options we can provide to our clients.

5760

The BTU/h value shown here is a theoretical number. There are often circumstances under which a cellar design may require a larger unit due to variables not accounted for in the formula. For example, these variables could be building materials (such as glass, stone, concrete, etc.) which do not offer the insulation capacity required to maintain the optimal cellar environment. We recommend purchasing a unit with a larger capacity to compensate for these unaccounted-for variables. An undersized unit can lead to premature failure and will most likely prevent the cellar from reaching your desired temperature.

Cellar Size:
Approx. 2,000 cu. ft. when the cellar is fully insulated and sealed with a proper vapor barrier (each wine cellar is unique and has specific cooling requirements; heat load calculations should always be performed prior to selecting a cooling unit)
BTU/h w/85°F air entering condenser coil:
5760
CFM:
333
Dimensions:
39.5”L x 26”H x 14.25”W (w/ Duct Plenums)
Refrigerant:
R-134a
HP:
2.26
Voltage Rating:
115V (20-amp dedicated circuit required); 230V (subject to availability)
Weight:
150 lbs
Amps:
10 (running amps)
Duct Size:
10” Return • 8” Supply (evaporator & condenser)
Drain Line:
1/2″ ID clear plastic tubing
Installation:
Can be installed up to 25 duct feet away from the cellar
Thermostat:
Advanced digital display (50ft. cable), liquid-temperature-measuring bottle probe (50ft. cable)
Temp. Delta:
Can maintain a 55°F cellar temperature with up to 85°F condenser air intake temperature
Outside Venting:
Can be done if the outside temperature does not exceed 110°F, the external grille cover is highly
recommended
Ducting Options:
Condensing side can be ducted
Warranty:
Two-year limited warranty (parts and labor) / Five-year limited warranty (compressor)
