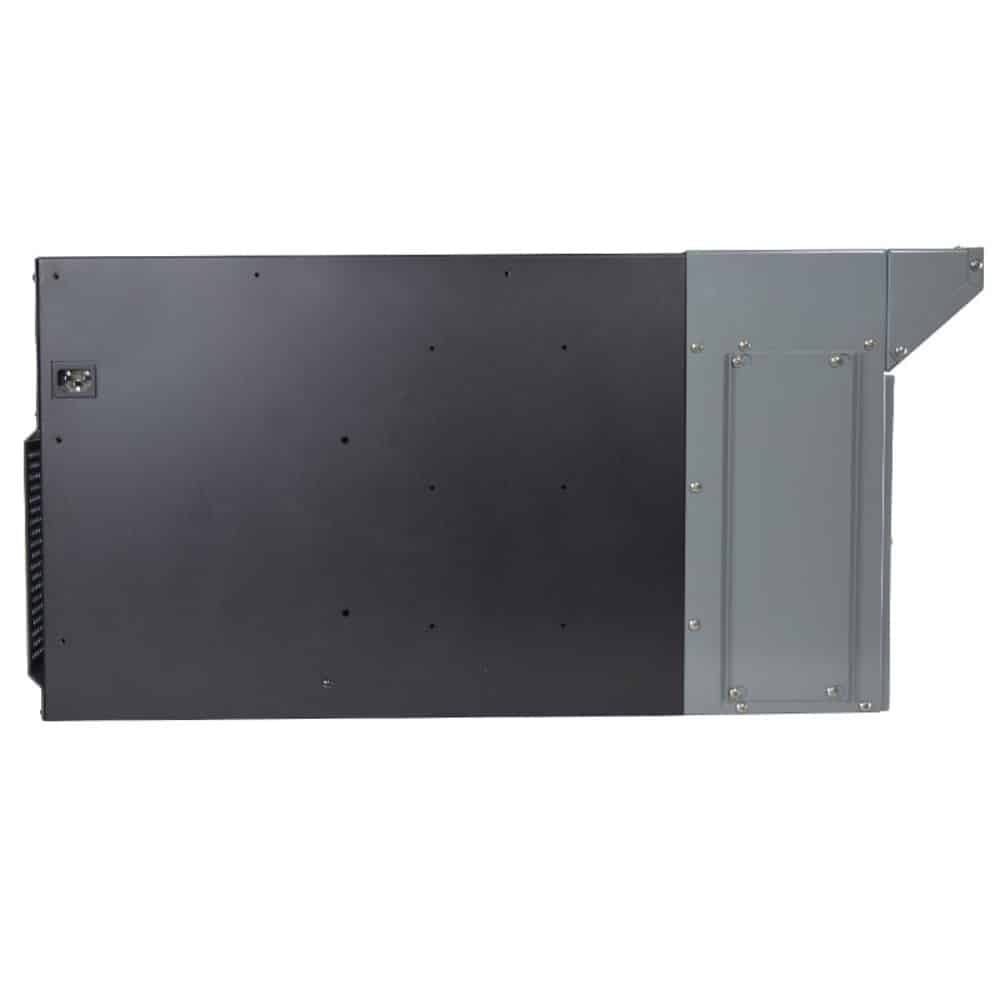

CellarPro 2000VSx-ECX VS 2000 Cooling Unit (Exterior) (P/N 27249). NOW WITH ENERGY-EFFICIENT EC FANS! CellarPro engineered the low profile VS 2000 wine cooling unit specifically for installations in wine cellars with limited space and exterior exposure for the hot side.
Just 358mm wide and 338mm tall, the 2000VSx-ECX cooling unit will fit in between studs and/or above door frames. Dual independent variable-speed fans offer flexibility to trade-off between super-quiet operation vs maximum performance.
All air-cooled refrigeration equipment requires fresh air intake to dissipate the heat generated by the cooling unit. The fresh air intake CANNOT come from the wine cellar space – it must come from space outside the cellar.
condensation, leading to damage and premature failure of your cooling unit (not covered by warranty).
CellarPro 2000VSx-ECX VS 2000 Wine Cooling Unit (Exterior) (P/N 27249). CellarPro engineered the low profile 2000VSx-ECX cooling unit specifically for installations in wine cellars with limited space and exterior exposure for the hot side.
Just 358mm wide and 338mm tall, the 2000VSx-ECX 220V cooling unit will fit in between studs and/or above door frames. Dual independent variable-speed fans offer flexibility to trade-off between super-quiet operation vs maximum performance.
All air-cooled refrigeration equipment requires fresh air intake to dissipate the heat generated by the cooling unit. The fresh air intake CANNOT come from the wine cellar space – it must come from space outside the cellar.
Before purchasing the CellarPro 2000VSx-ECX 220V cooling unit, let us calculate the thermal load of your wine cellar.
- Features energy-efficient EC Fans on both the cold and hot sides

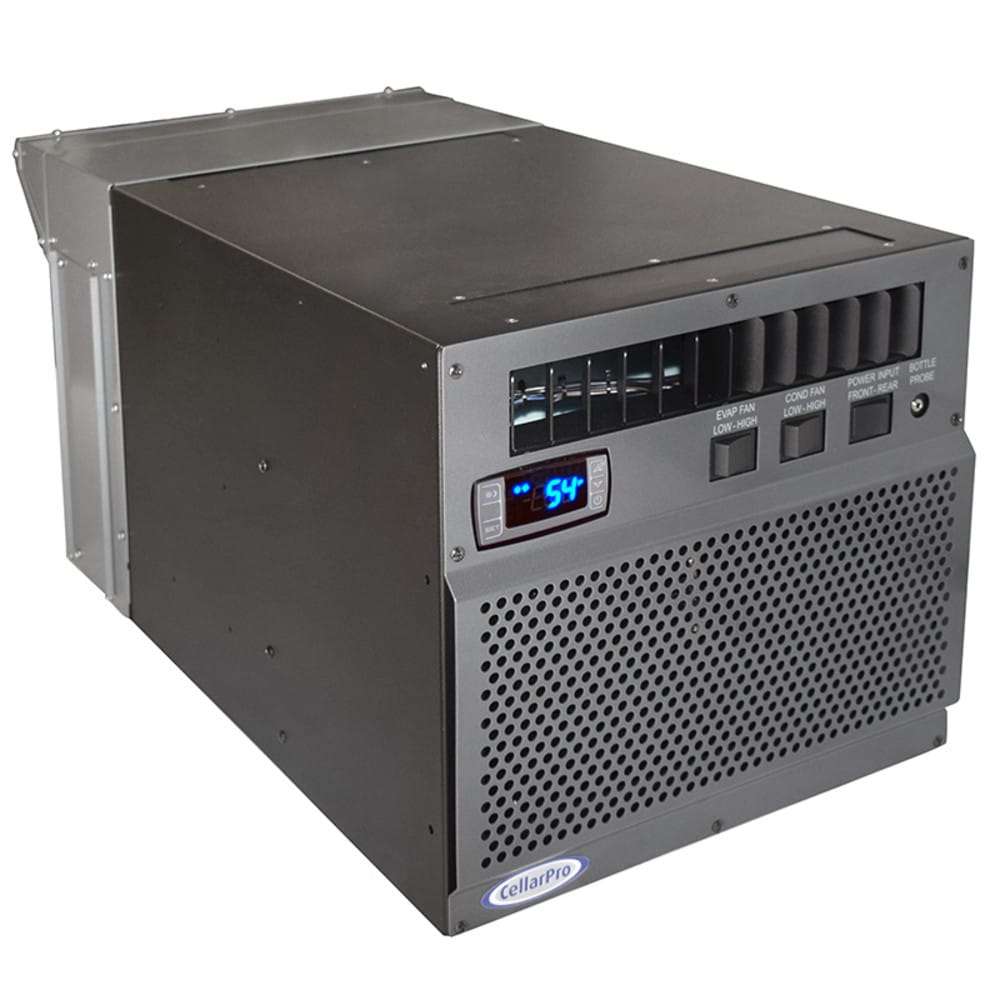

- Intuitive LED display panel mounted on the evaporator with digital programmable thermostat is simple and easy to use. Remote thermostat is available as an upgrade
- Adjustable humidity control combines a high-output compressor with flexible fan cycles to maintain a recommended level of moisture inside your cellar.
- Commercial-grade Electrofin coating protects the evaporator and condenser coils from leaks and corrosion.
- Low profile for maximum flexibility
- Shallow height fits above doors: 338mm H
- Shallow width fits in between studs: 358mm W
- Upgrades for exterior exposure

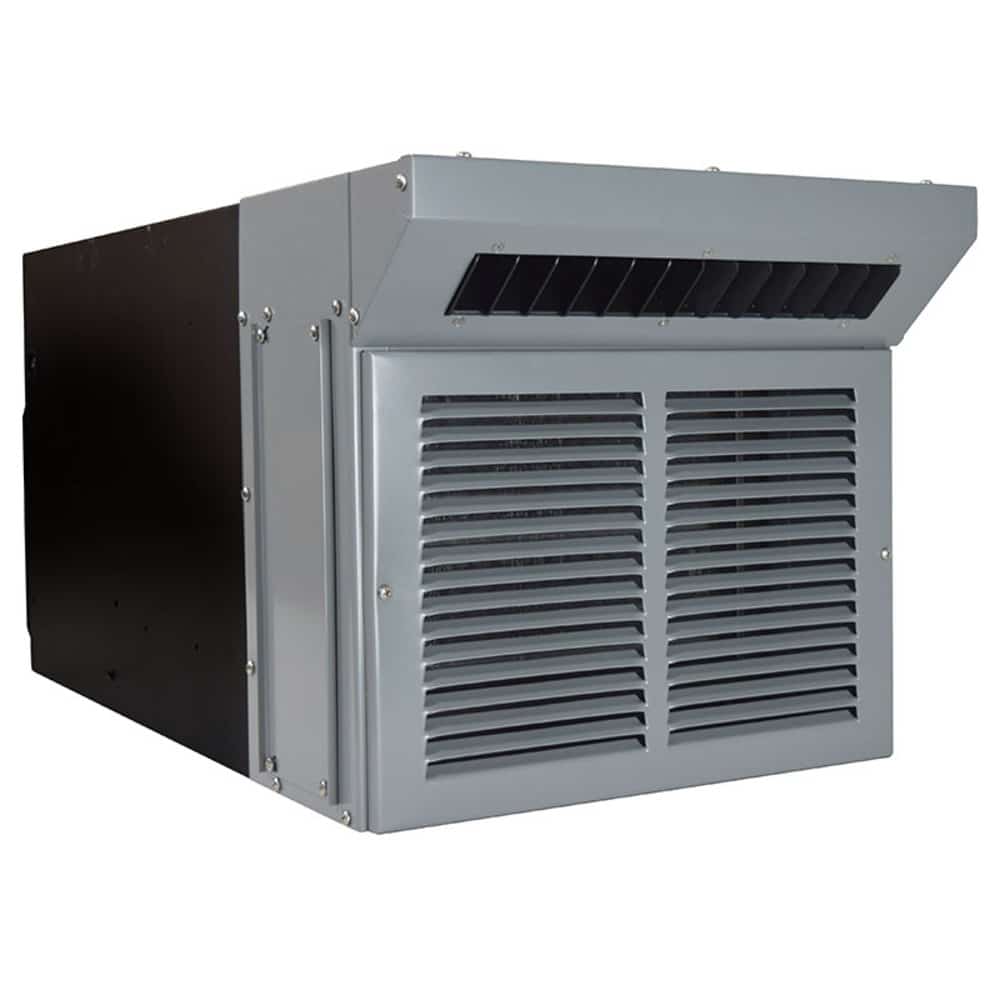

- Exterior weather hood to cover the rear of the cooling unit
- Coated condenser coils
- Commercial-grade Electrofin coating protects the evaporator and condenser coils from leaks and corrosion.
- Cold-temperature compressor heater, allows exposure down to -6.7C
- Reusable aluminum filter
- Exterior-grade power cord
- Variable-speed fan inside the cellar
- 1745 BTUH on high fan speed
- 1581 BTUH on low fan speed
- Variable-speed fan outside the cellar
- 43C maximum intake temperature / 61.5 dBA on the high fan speed
- 38C maximum intake temperature / 55.5 dBA on the low fan speed
- Condensate management system
- Oversized stainless-steel drain pan
- 100W heating element
- 12.7mm ID drain line for excess condensate
- Energy-saver mode, quick-chill mode, and auto-defrost cycle provide convenient solutions to common cellar needs.
- Temperature set point range is 8.3C to 16.7C when the cooling unit is properly sized.
- Unit operates with minimal vibrations and less noise than comparable units from competitors.
- Audible and visual alarms and maintenance-needed indicator protect the cooling unit and the wine cellar.
- With dual power sources and a 3-meter power cord, the unit can be plugged into a receptacle from either the front or the rear of the cooling unit, providing flexibility for most installations.
- Common dedicated 15-amp circuit is required to power the unit.

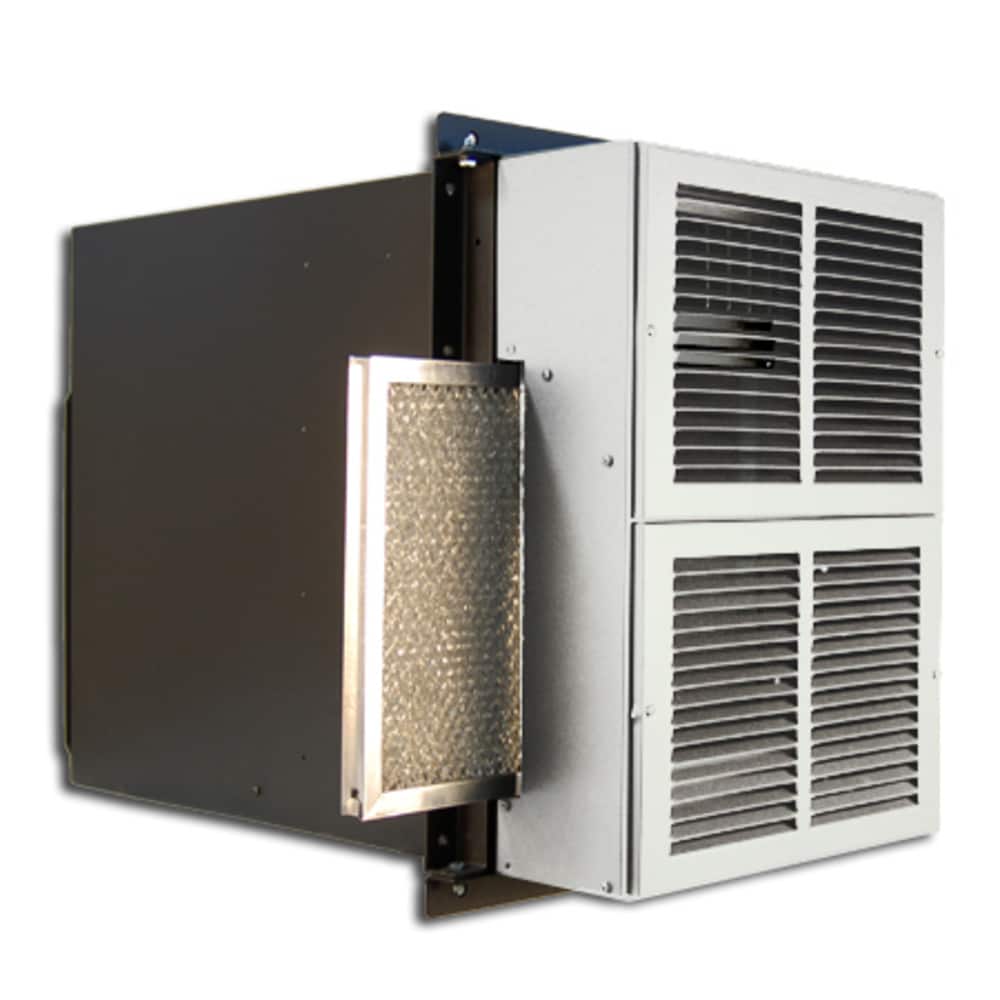

- Our easy-access air filter protects the condenser coils and increases the expected useful life of the cooling unit.
- Adjustable mounting brackets, included as standard equipment, ensure easy installation.
- Removable steel case and refrigerant access valve provides access to the internal components for servicing and repair.
- CellarPro’s 1-Year Standard Warranty, the most thorough in the industry, protects the unit against manufacturing defects.
1745 SENSIBLE BTUH @ 12.8C.
CellarPro 2000VSx-ECX 220V / 50Hz cooling units (1/6 Ton Nominal) use energy-efficient EC fans and are suitable for external exposure and are designed for low profile installations in commercial and residential wine cellars up to 11.3 cubic meters*
The BTU/h value shown here is a theoretical number. There are often circumstances under which a cellar design may require a larger unit due to variables not accounted for in the formula. For example, these variables could be building materials (such as glass, stone, concrete, etc.)
Which do not offer the insulation capacity required to maintain the optimal cellar environment. We recommend purchasing a unit with a larger capacity to compensate for these unaccounted-for variables. An undersized unit can lead to premature failure and will most likely prevent the cellar from reaching your desired temperature.
Brand:Â CellarPro
Size:Â 376w x 709d x 338h (mm)
Weight:Â 72 lbs
Power/Rating:
220V AC / 50 Hz
Compressor Amps:
– Startup (LRA): 13.5 Amps
– Unit Amp Rating: 2.82 Amps
– Total Watts with Fans on Low: 304
– Total Watts with Fans on Low: 404
– Compatible with Dedicated 15-Amp Circuit
BTUH @ 12.8C:
– Low Fan Speed: 1581 BTUH
– High Fan Speed: 1745 BTUH
– 1/4 Ton Nominal
Cold Temperature
- Compressor Heter #1727:Â protects the unit when installed in environments that drop below 40F down to 20F.
- Fan Cycling Switch #6972: supports the unit in temperatures below 20F and as low as -20F when combined with our compressor heater.
Duct Hoods
- Duct Hood (Cold Side)#27107and Kit#27104: permits the cooling unit to be located remotely, up to 50 equivalent feet away from the cellar (cold side) using 203mm diameter ducting.
- Duct Kits are the same as Duct Hoods, and also include 2 x 25-feet of insulated (R-6) flex ducting.
- The duct items above are designed for installation in climate-controlled environments. Choose our High RH duct hood #27108 or kit #27105 for installation in environments that are NOT climate controlled.
Filters & Grills
- Use our filter & grill guide to find the cooling unit filter or duct filter and/or duct grill that is appropriate for your cooling unit.
Remote Control & Probe
- Remote Display #1603: lets you place the digital panel wherever you want, whether inside or outside the cellar. Includes 10 feet of wiring.
- Bottle Probe #1434: this remote thermostat with a 10-foot cord overrides the thermostat on the face of the cooling unit, and allows it to monitor air or liquid temperatures at various locations inside the cellar.
- Extension cords available in 25-foot (#1780) and 50-foot (#1781) lengths.
