$5,950.00
BTU/H: 2780 – 3390 BTU/h
Dimensions: Length: 27.6″ , Width: 14.1″ , Height: 15.8″
Ideal for smaller residential wine cellars.

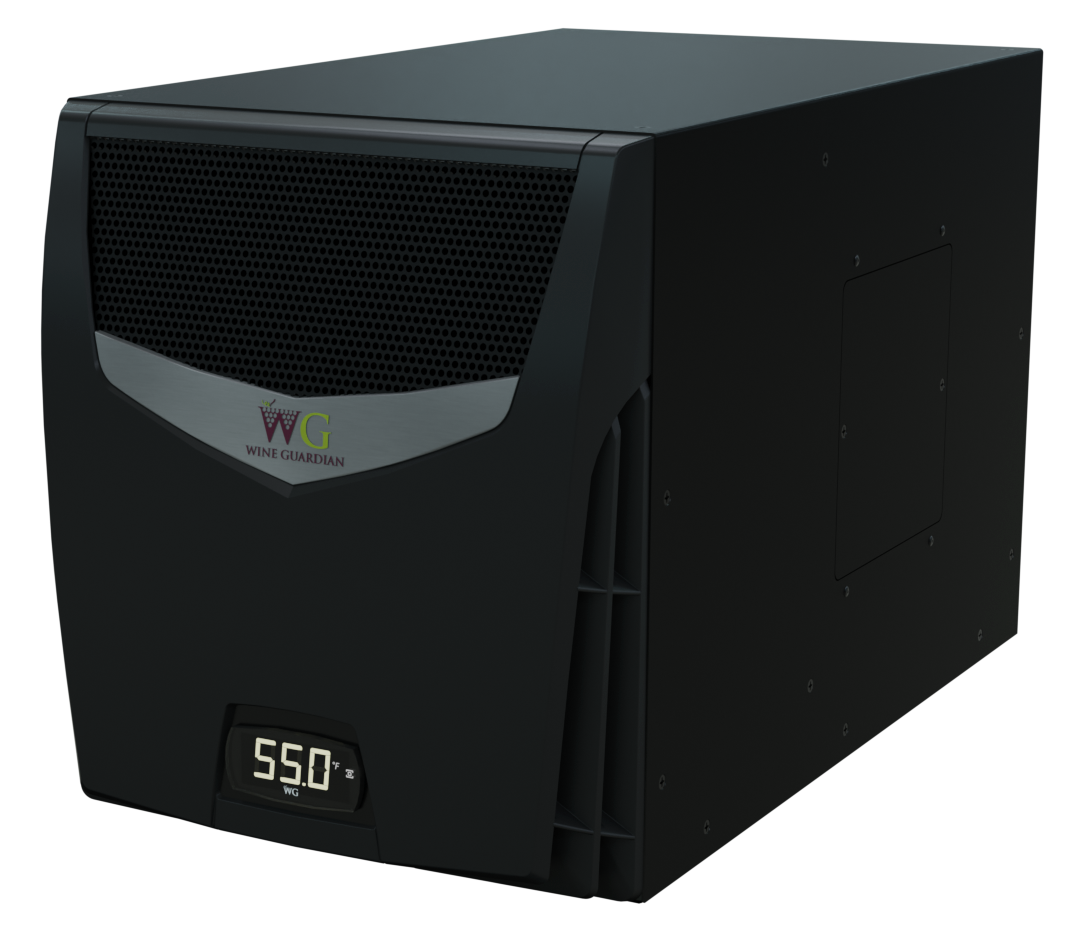

The Wine Guardian Sentinel Series Through-the-Wall Cooling Unit is a versatile system designed for a wide range of wine cellars and display applications. With precise temperature control and aesthetic design, it delivers reliable performance while protecting your collection in style.
The TTW04F, G, I, and J are 50 Hz units. The Sentinel Series is built for easy, do-it-yourself installation — no contractor required.
The Wine Guardian TTW04 Sentinel Series provides versatile through-the-wall cooling for a variety of cellar and display applications. With a standard plug connection and simplified design, this unit offers precise temperature control and effortless installation for indoor use.
Additional features include sound reduction foam and a humidity sensor to allow seamless humidifier connection.
Please note: this unit is not rated for exterior use and should be installed in an interior through-the-wall application only.
2780-3390
The BTU/h value shown here is a theoretical number. There are often circumstances under which a cellar design may require a larger unit due to variables not accounted for in the formula. For example, these variables could be building materials (such as glass, stone, concrete, etc.)
Which do not offer the insulation capacity required to maintain the optimal cellar environment. We recommend purchasing a unit with a larger capacity to compensate for these unaccounted-for variables. An undersized unit can lead to premature failure and will most likely prevent the cellar from reaching your desired temperature.
| Weight | 71 lbs |
|---|---|
| Dimensions | 27.6 × 14.1 × 15.75 in |
| Model | TTW04 Sentinel |
| Capacity | 2,780 – 3,390 BTU/h |
| Line Frequency | 50 Hz |
| Ductless/Ducted | Ductless |
| Where to Buy | Distributor, Online |
| Plug Type | Plug Type F, Plug Type G, Plug Type I, Plug Type J |
| Installation Level | Do-It-Yourself |
| Sound | 63.5 dBA |
| Length | 27.6 |
| Height | 15.75 |
| Width | 14.1 |
| Weight | 71 |
| Electrical | 240/1/50 |
| Notable Features | Bluetooth / NFC Controls, Noise Reduction, Extended Temperature Control Range |
Allows the system to control to an extended temperature range from 42°F to 64°F (5°C to 18°C). This option is ideal for single to multiple cabinet applications and small wine rooms where consumption-temperature cooling is preferred. It also allows the user to rotate wine stock and change set point from season to season, making it ideal for restaurants, wine bars, clubs, etc.
The Freestanding Humidifier is installed inside your wine space to provide optimal humidity for perfect long-term wine storage. The Humidifier can be controlled by your existing Wine Guardian controller.
