$9,705.00

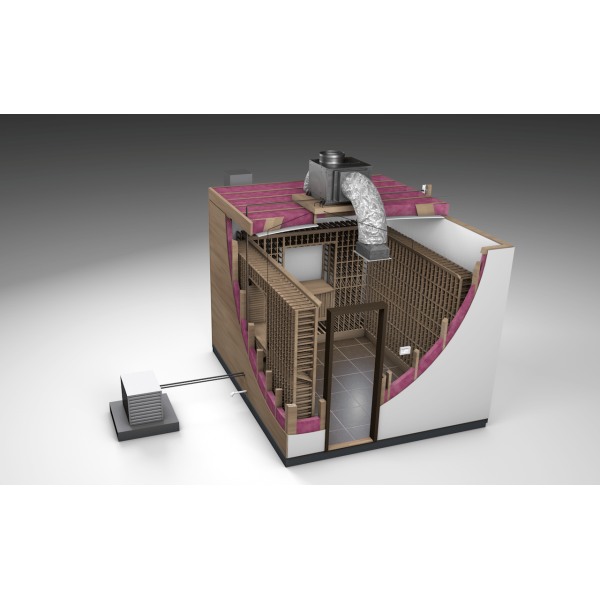

The WhisperKOOL® Quantum 9000 wine cellar cooling system is engineered for high-end residential and commercial wine storage. This fully ducted split system is designed for wine cellars requiring superior cooling capacity, precise temperature and humidity control, and silent operation. Perfect for large-scale wine cellars, the Quantum Series offers flexible installation options with up to 25 feet of ducting between the evaporator and condensing units, ensuring a quiet cellar environment without compromising cooling efficiency.
The Quantum 9000 wine cellar cooling system is now enhanced with premium features such as a stainless steel drip tray, a sleek black metal kit, and a three-speed fan switch for airflow customization. The external insulation blanket improves energy efficiency by reducing heat loss, and the optional UV-C lighting system provides additional protection by inhibiting microorganism growth in the system.
Designed for reliability and durability, the Quantum 9000 wine cellar cooling system operates effectively in ambient temperatures as low as -15°F. With professional-grade components, the Quantum Series ensures long-term performance, protecting your wine collection for years to come.
9,572 – 10,786
The BTU/h value range shown here is a theoretical number. There are often circumstances under which a cellar design may require a larger unit due to variables not accounted for in the formula. For example, these variables could be building materials (such as glass, stone, concrete, etc.) which do not offer the insulation capacity required to maintain the optimal cellar environment. We recommend purchasing a unit with a larger capacity to compensate for these unaccounted-for variables. An undersized unit can lead to premature failure and will most likely prevent the cellar from reaching your desired temperature.
This Whisperkool Quantum 9000 Ducted Cooling Unit is designed to operate in ambient conditions as low as -15 degrees and is crafted with the highest quality, professional-grade parts for longevity and performance. The Quantum 9000 Ducted Cooling Unit is sure to give you that extra boost of cooling power and the quality you have come to expect from WhisperKOOL.
FREE HEATLOAD CALCULATION
Not sure if the Platinum Split is suitable for your wine cellar? Call 800-323-3130.
Note: A qualified HVAC-R technician is required for installation. Failure to install the system by a qualified technician will void the warranty.
THERMOSTAT & BOTTLE PROBE
*PLEASE NOTE: WhisperKOOL does not provide a smart thermostat. By selecting the 24V Thermostat Conversion Kit, you have acknowledged that the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. To run the equipment, you will have to source and purchase your own 24V smart thermostat. The WhisperKOOL Customer Satisfaction Team does not provide technical support for smart thermostats.
220V
220V HE
Condenser
