$7,455.00

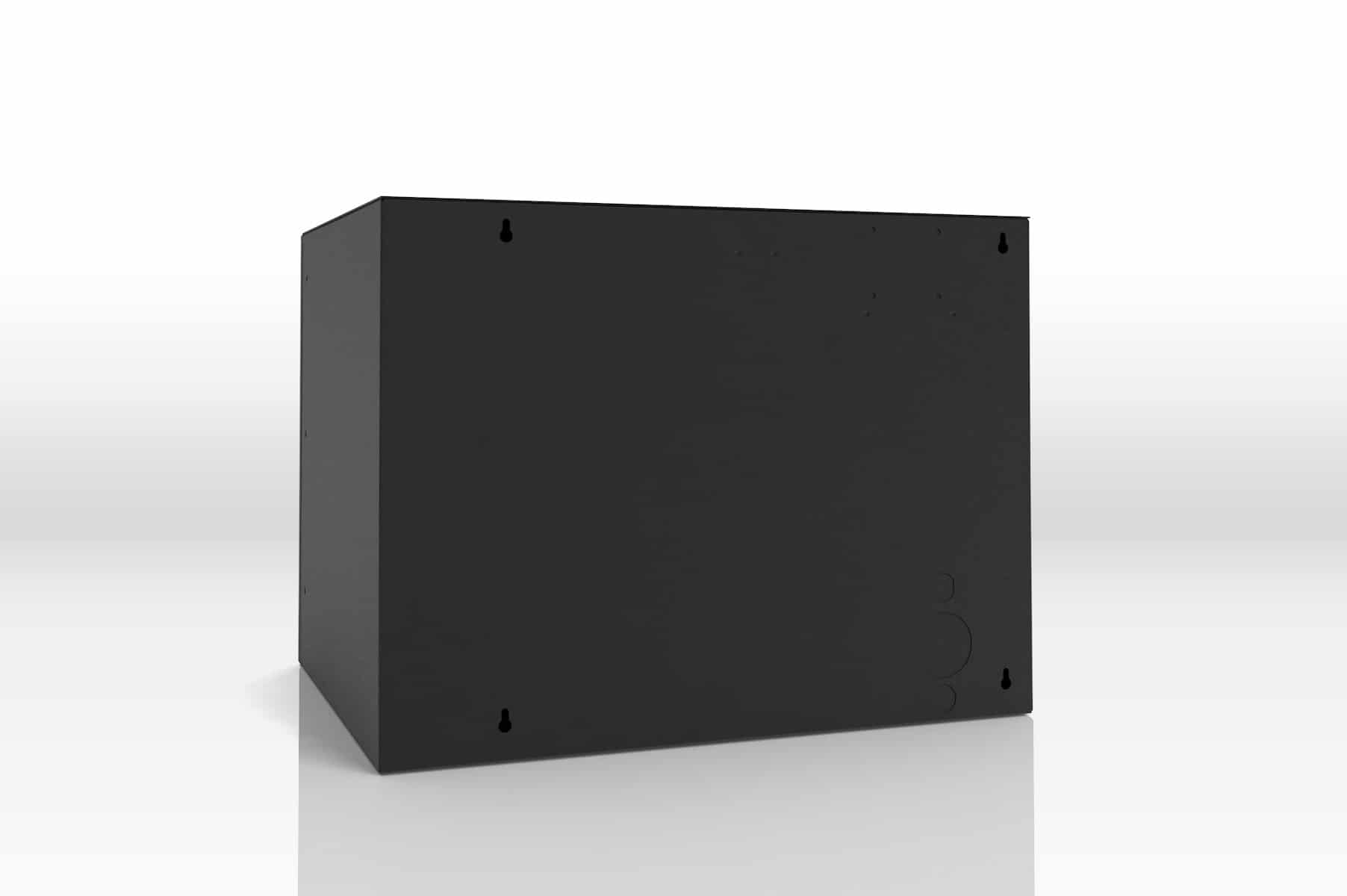

Described in the simplest terms, a WhisperKool Split System 4000 is a cooling unit wherein the evaporator unit and condensing unit have been “split” into two separate units instead of being contained within the same housing. The evaporator of Whisperkool Platinum Split 4000 is located in or near your cellar, and the condensing unit is generally located outside, or in an attic or utility room.
The WhisperKool Split System 4000 allows you to decide where the evaporator unit and the condensing unit will be located. The condensing unit can be located up to 100 ft. away from the evaporator unit. The evaporator unit will be mounted in the cellar or it can also be located nearby with ducting.
3650 – 4315
The BTU/h value range shown here is a theoretical number. There are often circumstances under which a cellar design may require a larger unit due to variables not accounted for in the formula. For example, these variables could be building materials (such as glass, stone, concrete, etc.) which do not offer the insulation capacity required to maintain the optimal cellar environment. We recommend purchasing a unit with a larger capacity to compensate for these unaccounted-for variables. An undersized unit can lead to premature failure and will most likely prevent the cellar from reaching your desired temperature.
110V
Cellar Size 1000cu. ft.*
BTU/h (85°F condenser air intake temperature)
Medium: 3650 • High: 3738
CFM 270
Dimensions Evaporator: 16.1”L x 20.5”W x 15.5”H • Condenser: 16.08”L x 16.23”W x 12.61”H
Refrigerant R-134a
Voltage Reading Evaporator: 115V (15 amp dedicated circuit required) • Condenser: 115V (15 amp dedicated circuit required)
Weight (lbs) Evaporator: 57 • Condenser: 56
Amps Evaporator: Evaporator: 1 (running amps) • Condenser: LRA 43/RLA 8
Line Set Liquid Line 1/4” • Suction Line (Less than 50ft. 1/2”) (Greater than 50ft. 5/8”)
Drain Line ½” ID clear plastic tubing (not provided)
Installation Evaporator is installed in the cellar. Condensing unit can be installed up to 100 line feet from the evaporator unit.
Thermostat Advanced digital display (50ft. cable), liquid-temperature-measuring bottle probe (retractable cable)
Temp. Delta: Can maintain a 55°F cellar temperature with up to 110°F condenser air intake temperature
Warranty: Two-year limited warranty (parts and labor)
Options: Exterior condenser housing, 24V thermostat conversion kit, condenser coil coating
220V
500 cu.
Fan Speed Medium/ High
BTU/h (60°F condenser air intake temperature) 4463 / 5154 Sensible / Total
BTU/h (75°F condenser air intake temperature) 3912 / 4348 Sensible / Total
BTU/h (85°F condenser air intake temperature) 3766 / 4096 Sensible / Total
dBA 56 / 62
Dimensions 22.1”L x 22.5”W x 15.5”H
Refrigerant R-134a
Voltage Rating 120V (15-amp dedicated circuit required)
Weight (lbs) 56
Amps 2.2 (Running Amps)
Drain Line 1/2″ ID clear plastic tubing (not provided)
Installation Evaporator unit is installed in the cellar.
Thermostat Advanced digital display (50-ft cable), liquid-temperature-measuring bottle probe (retractable cable), 24V -customer supplied
Temp. Delta Can maintain a 55°F cellar temperature with up to 120°F condenser air intake temperature
Warranty Two-year limited warranty (parts and labor)
CONDENSER
dBA 45
Dimensions 31.18″L x 10.75″W x 21.18″H
Condensing Unit 0.6 HP
Voltage Rating 220V (15 Amp Dedicated Circuit)
Weight 55 lbs
AMPS LRA 10.7A, RLA 2.7 A, FLA 3.1A
Line Set Liquid Line 1/4″OD; Suction Line 1/2″OD (less than 50′),(5/8″ greater than 50″)
Installation Condensing unit can be installed up tp 100 line feet from Evaporator Unit
Temp Delta Can Maintain a 55 degree Cellar Temperature with up to 120-degree condenser intake temperature
Warranty 2 years limited warranty (parts and labor)
