Dual Temperature Upright Wine Cooler

Total quality, design, and function ensure that this KingsBottle upright wine fridge refrigerator enables you to store your collection with total peace of mind at a highly accurate set temperature. You can also purchase a second unit with the door hinged on the opposite side that will allow you to house wines at a different temperature, or simply to expand the quantity that you are able to cellar. We also make a fully matching bar fridge that can sit side-by-side with these units – see our model KBU425BX Beverage Fridge.

Borderless Black Glass Door Option: A black glass door without a frame is optional featured on this fridge, producing a polished and seamless aesthetic. The glass panel is accompanied by a printed black effect at the edge which gives the appliance a contemporary design and allows for a clear visibility of the interior.

Note: For information on the storage capacity, dimensions, cutout and user manual, please refer to the tab of USER INSTRUCTIONS.

General Info:

• Volume: 15CF (425 Litre)
• Capacity: 159 bottles of wine
• Installation: Built-in or freestanding, Front Venting
• Shelf Configuration: 15 Beech Wooden Shelves
• Adjustable Temperature Range:
  • Upper Zone 35°F to 54°F ( 2°C to 12°C );
  • Lower Zone 54°F to 68°F ( 12°C to 20°C )
• At Min/Max Room Temperatures: 32 – 100 °F ( 0 -38°C)
• Noise Level in Decibels: <42dB

Key Features

Inverter Compressor
Top brand Embraco Inverter Compressor;
Super quiet and reduces energy consumptions by 40%.

---

Patented sink of compressor
Increases the air circulation space around the compressor; Better cooling performance, less vibration, less noise.

---

45mm Thickness C-Pantane
Thicker foam helps save energy consumption and optimize cooling performance

---

Fan Circulated Air-Cooling System

Ensure temperature uniformity in the cabinet;
Compensates for air humidity.

---

Activated Carbon Filter
Effectively filters impurities in the air while keeping the air in the cabinet fresh

---

Low-E Glass*
Reduce energy consumption;
Less condensation on the glass door.

---

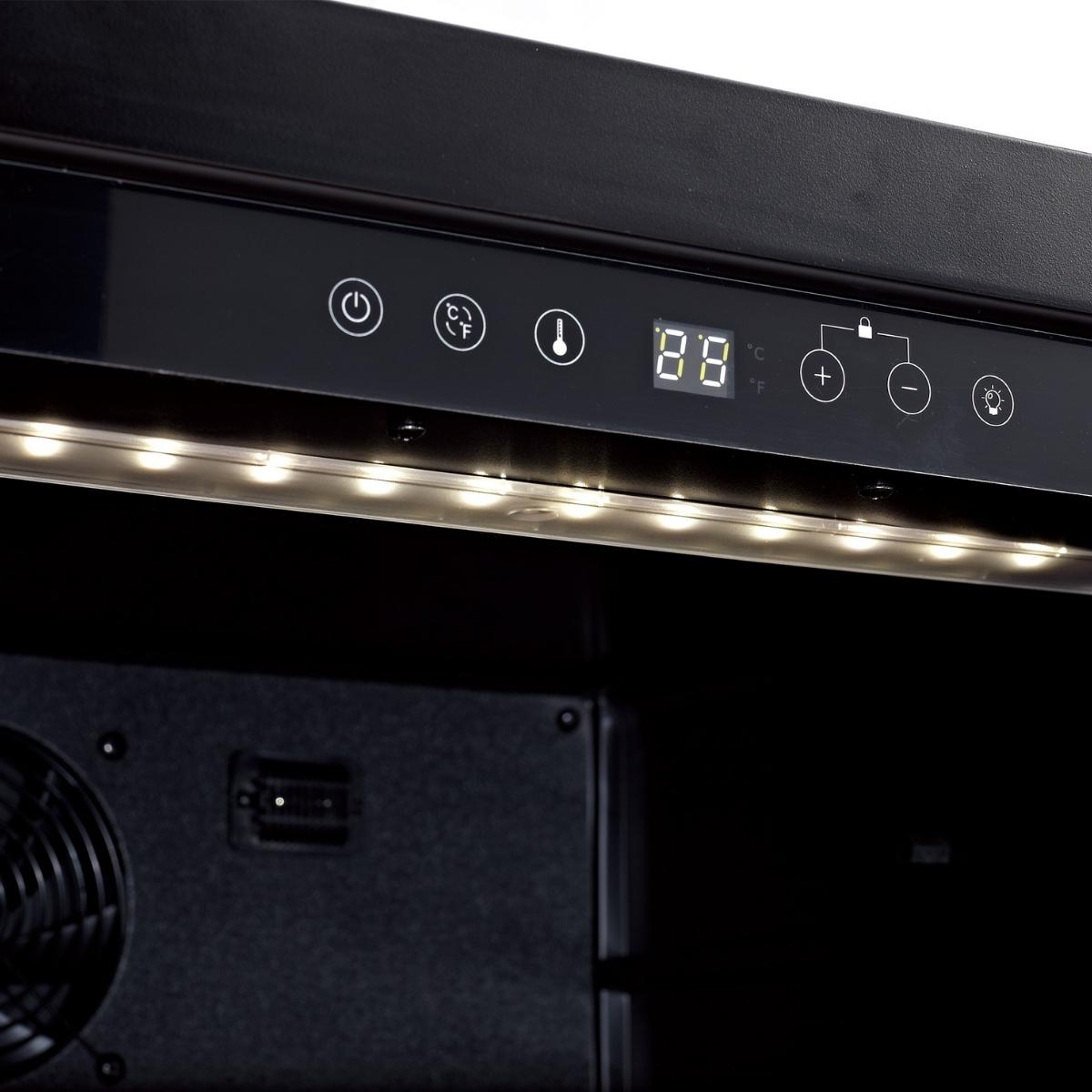

LED Display Digital Touchpad Control
Simple and easy to operate;
Clear and accurate.

---

Magnetic Switch
Aggressive light control
2 minutes door open alarm

---

Hidden Door Hinge
Laminated steel plate, integrated molding;

Full Built-in Design.

---

Seamless S/S Door Frame
Artistic appearance;
Thin door design

---

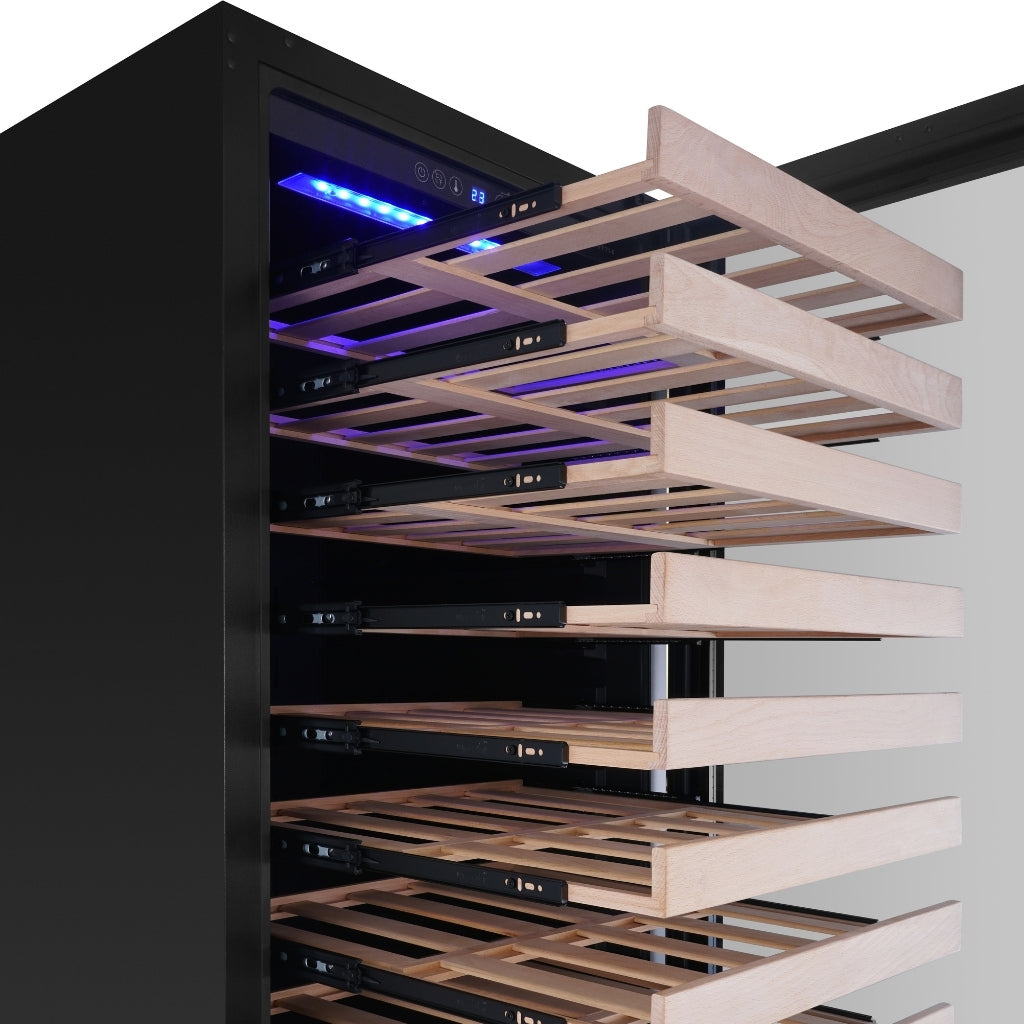

Beech Wooden Shelf
Wine friendly beech wooden shelves;
Cleverly spaced to fit regular and larger bottles.

---

* Low E glass has a thin coating on one side of the glass that acts like an invisible insulating barrier for a refrigerator.This reduces the conduction of heat or cold through the glass, helping to reduce energy consumption and reduce condensation on the glass door.

Electrical:

• Rated Power Input:  110-115V/60HZ
• Rated Current: 1.7A
• Power Input: 165W
• Power Lamp: 0.7W
• Refrigerant: R600A / 52g

Dimensions:

• Unit Size: 23.42”W x 27.36”D x 70.86”H  (Included 0.59″ stand feet)
• These front-venting fridges can be built into cabinetry. Should it be built into cabinetry, there should be an additional 0.5″ on either side, behind and on top of the unit. These extra spaces enable units to be placed in the position efficiently, accommodate the door when opened, and without the power cords being damaged.

Documents:

• Dual Zone Wine Fridge User Manual Download

USER INSTRUCTIONS

DOCUMENTS FOR DOWNLOAD

USER MANUAL   |   e-CATALOG    |   INSIDE VIDEO

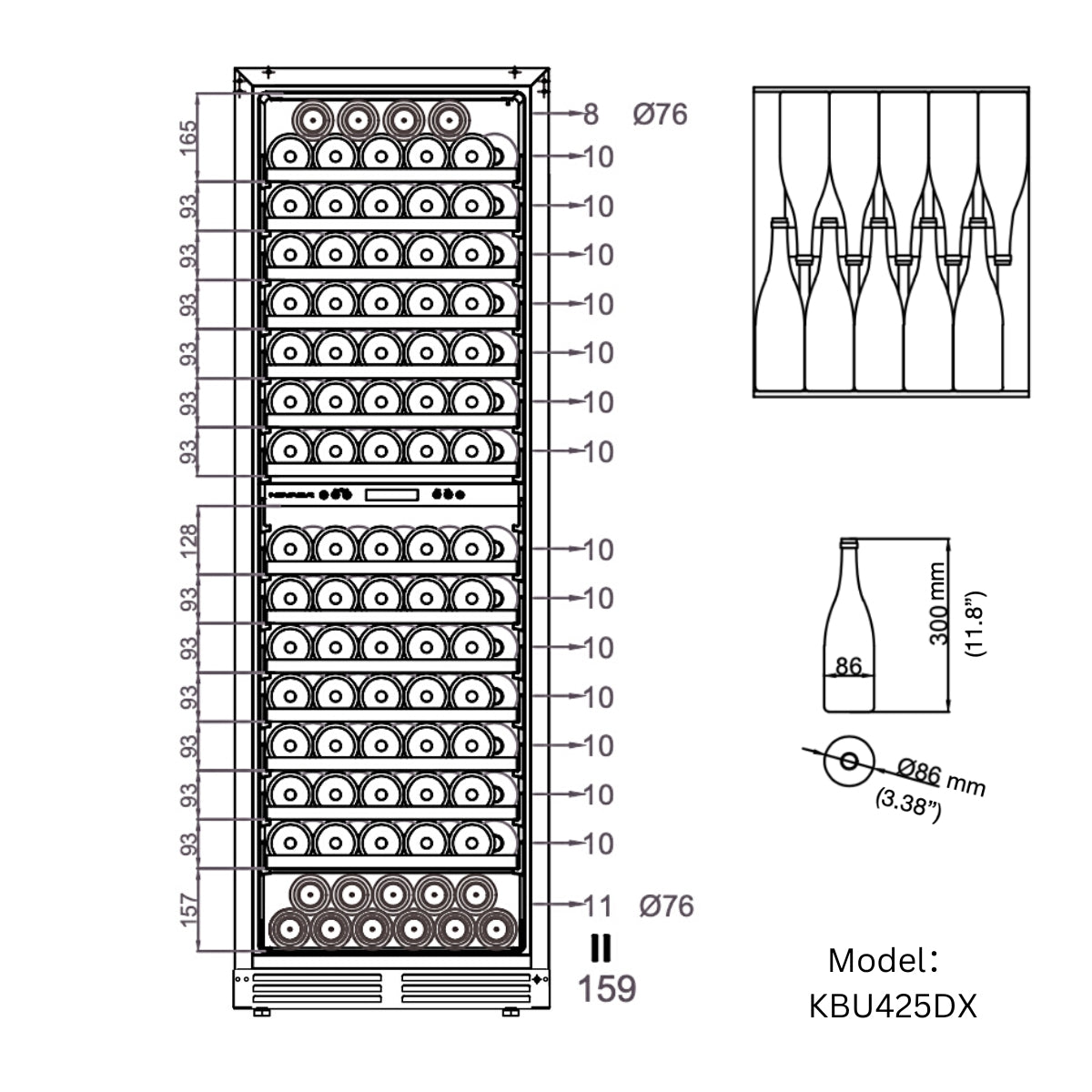

BOTTLE STORAGE | KBU425DX

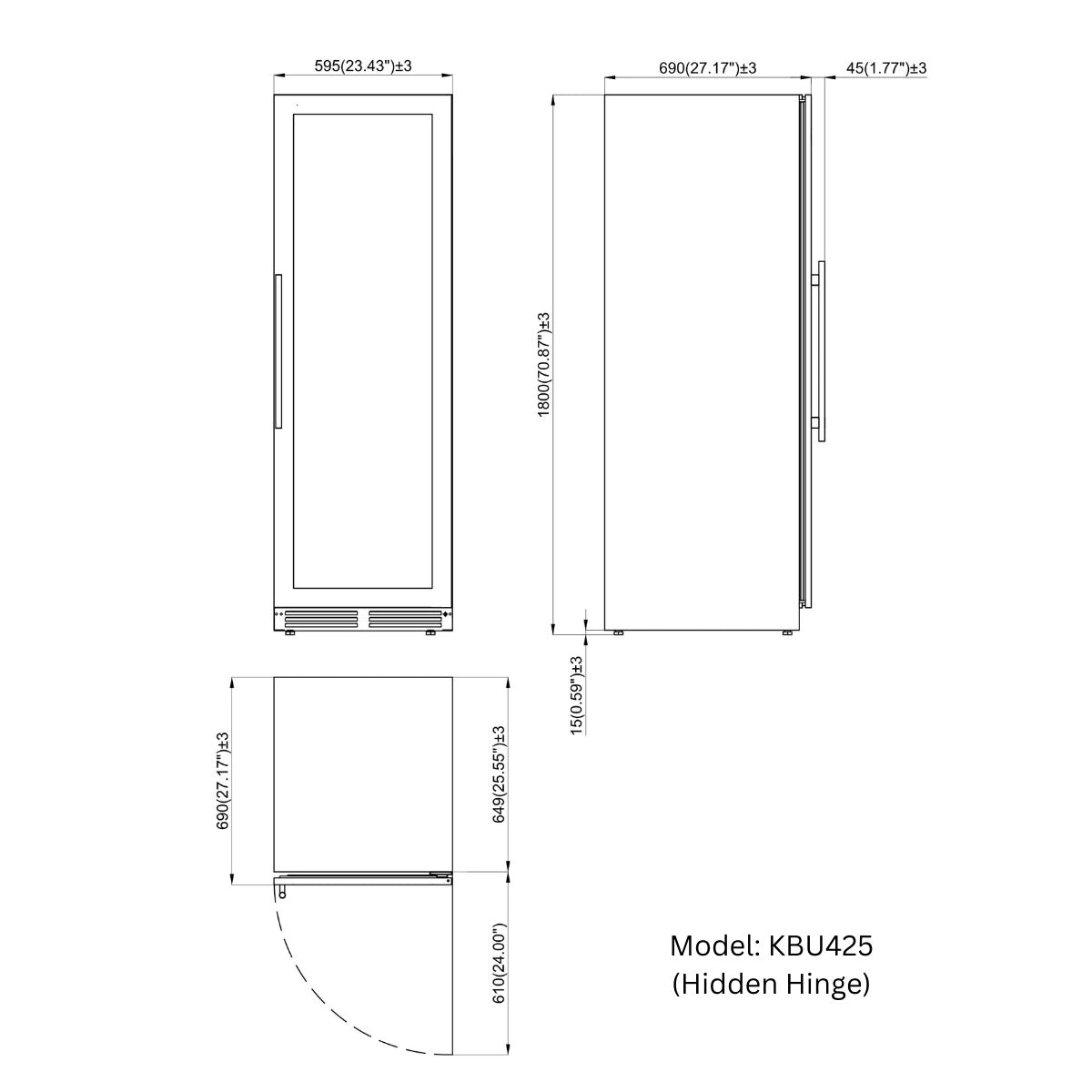

DIMENSIONS | KBU425

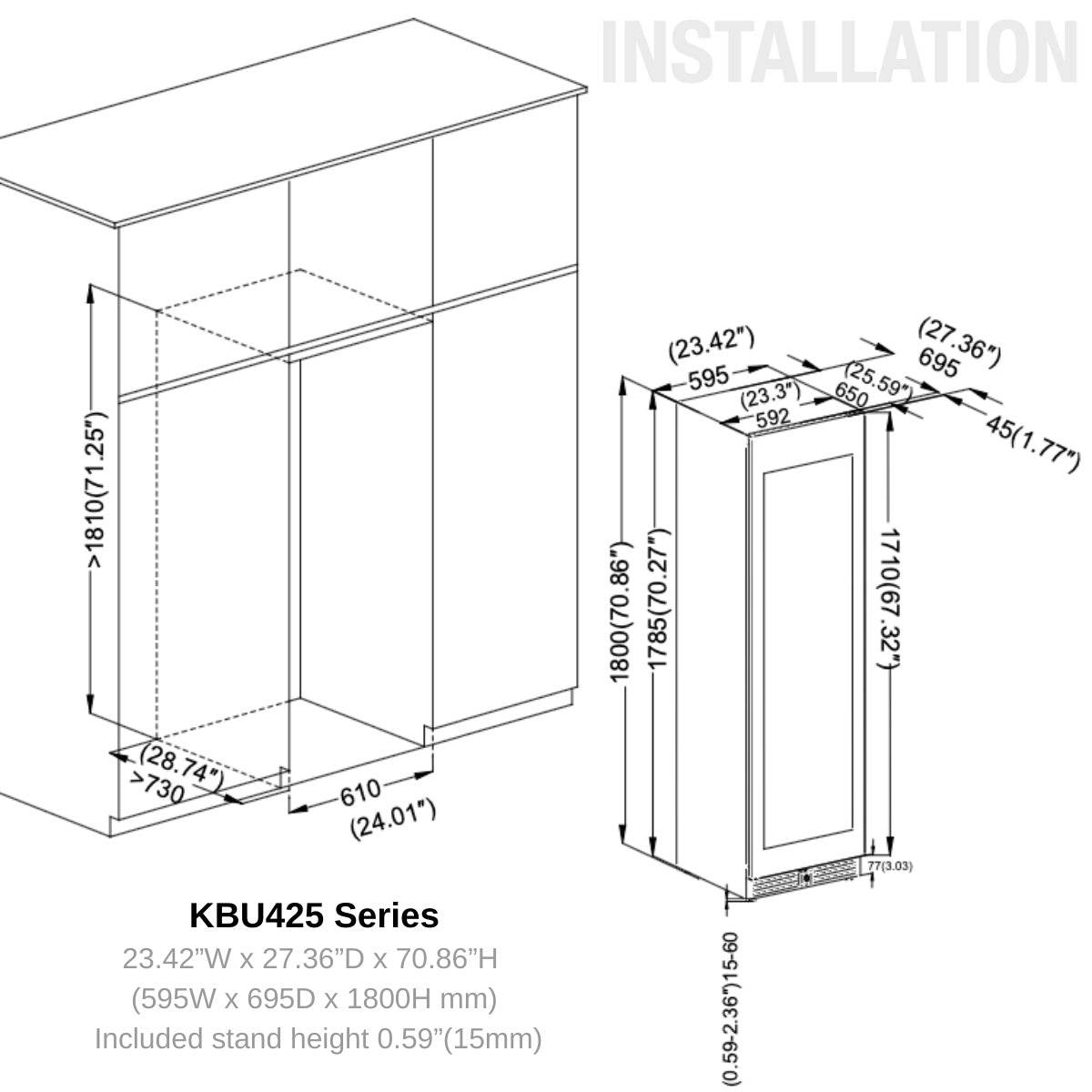

CUTOUT | KBU425
