TTW009
Up to 850 Cubic Feet

$2,700.00$3,620.00

Shipping $85.00

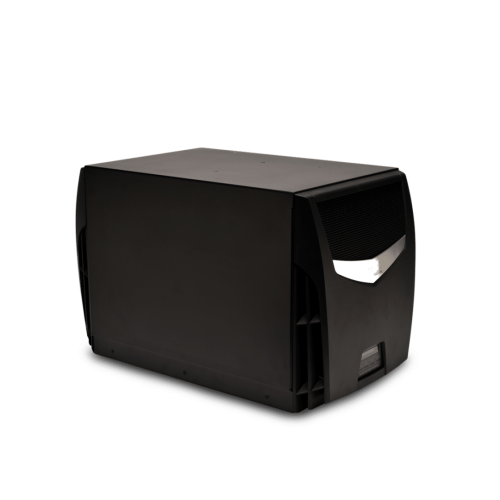

Through-the-Wall system for smaller residential wine cellars. The unit is best suited for rooms up to 850 cubic feet with limited glass and very good insulation. You can install this unit on your own without the support of a contractor. Max capacity of 981 BTU/h (0.32 Kilowatts).

Request a free thermal load calculation to verify the correct sized unit for your cellar.

Electric Heat Option:
-500-watt integral heater
-Thermal overload protection device and controls

The Wine Guardian will either cool or heat the air, but it is not designed to do both at the same time. The Wine Guardian electric heat option must be specified at the time of order and is installed at our factory.

SKU: 99H0240-10 Categories: ,

Through-the-Wall system for smaller residential wine cellars. The unit is best suited for rooms up to 850 cubic feet with limited glass and very good insulation. You can install this unit on your own without the support of a contractor. Max capacity of 981 BTU/h (0.32 Kilowatts).

Standard Features

  • Controls temperature
  • Displays both temperature and humidity
  • Specialized fans create ideal airflow
  • Adjustable louvers optimize cellar air circulation
  • Extremely quiet operation
  • EasyMount™ one-piece wall bracket and support frame
  • Commercial-grade, corrosion-resistant components and all-aluminum frame for long-term durability
  • Integrated condensate evaporation system
  • Drain overflow connection
  • Can be mounted flush with the wall or racking
  • Can be used with a Wine Guardian stand-alone humidifier to control humidity
  • Power cord connections on both sides of the system
  • Certified by ETL to UL, Canadian, European Union, and Mexican standards for safety and performance
  • Made in the USA

OWNER'S MANUAL
SPEC SHEET
OPTIONS SHEET
DUCT INSTALLATION GUIDE
QUICK START INSTALLATION GUIDE
PRODUCT OVERVIEW
WARRANTY

Additional information

Specs

Model: TTW009
BTU/H: 981
Capacity: 850 cubic feet
Length: 25″
Width: 14.25″
Height: 15.875″
Electrical 115v/1ph/60hz
Weight: 60 lbs.
