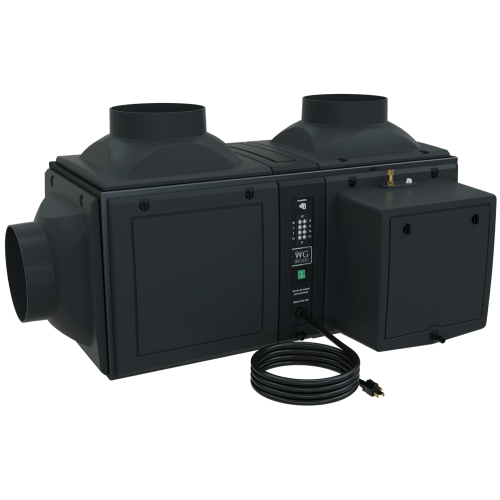

Wine Guardian DP200 – PRO Ducted Cooling Unit – 2 TON
- 15,680
- Dimensions: Length: 50″ , Width: 22.5″ , Height: 19″
- Ideal for medium to large residential and commercial specialty applications.
Wine Guardian Pro DP200 Ducted Wine Cooler is made for maximum versatility, efficiency, and ease of use when it comes to storing and aging wine. From distributors to refrigeration wholesalers to HVAC installation professionals. The Wine Guardian Pro series makes installation, customization, and maintenance of our solutions—for commercial or larger residential applications—seamless.
Installation
Wine Guardian Pro DP200 Ducted Wine Cooler has a number of features that facilitate a straightforward installation. First, the multi-panel design makes it possible to custom configure the setup for a particular application through up to three ductwork connections.
The easy plug-and-play design with a power cord is standard in all units. Moreover, the primary power, controls, drain, and water connections are centralized for an efficient utility connection in all Wine Guardian Pro Ducted systems.
Customization
Wine Guardian Pro units utilize 24-volt electronics and are Wi-Fi compatible. These features allow for simple integration with today’s smart homes or commercial building management systems. Additionally, while our standard units can be customized at the time of ordering with high- or low-ambient protection, the Pro series comes with these options built right in.
An integral electric heater is another way the Pro series can be customized depending on where a client is storing their wine or valuables. In addition, the Pro series is robust enough to accommodate the retrofitting of a humidifier should a customers’ needs change after purchase.
Request Free Heatload Calculation to choose the best wine cooling unit
| Cooling | Air-cooled, Water-cooled |
|---|---|
| btu | 15680 BTU/h |
| kilowatts | 2.32 – 4.13 Kilowatts |
All-Inclusive
- 24-volt electronics for integration with today’s smart thermostats and building management systems
- High- and low-pressure safety switches
- Refrigerant sight glass, filter drier, and access ports
- Duct collar connections
- Low ambient protection
- High ambient protection (on limited models)
- 5-year compressor warranty
Flexible
- Utility piping in one easily accessible location
- Multiple evaporator and condenser outlet locations (Any of three sides)
- Easily mountable in floor, ceiling, or wall applications
- Duct collars on supply & return and intake & exhaust
Durable
- Aluminum body and all-aluminum evaporator coils (fins & tubes) are corrosion-resistant
- Standard high static pressure fan for extended lengths of ductwork
- Completely serviceable in the field
Unique Options
- Bolt-on humidifier
- Electric heat
- Water-cooled or air-cooled
15,680
The BTU/h value shown here is a theoretical number. There are often circumstances under which a cellar design may require a larger unit due to variables not accounted for in the formula. For example, these variables could be building materials (such as glass, stone, concrete, etc.)
That do not offer the insulation capacity essential to maintain the optimal cellar environment. We recommend purchasing a unit with a larger capacity to compensate for these unaccounted-for variables. An under-sized unit can lead to premature failure and will most likely prevent the cellar from reaching your desired temperature.
| Model | DP200 |
|---|---|
| Line Frequency | 60 Hz |
| Capacity | 8000 – 15680 BTU |
| Volume | 1500 – 7000 ft³ |
| Length | 50″ |
| Width | 22.5″ |
| Height | 19″ |
| Weight | 206 lbs |
| Electrical | 208-230/1/60 |
