$8,671.00

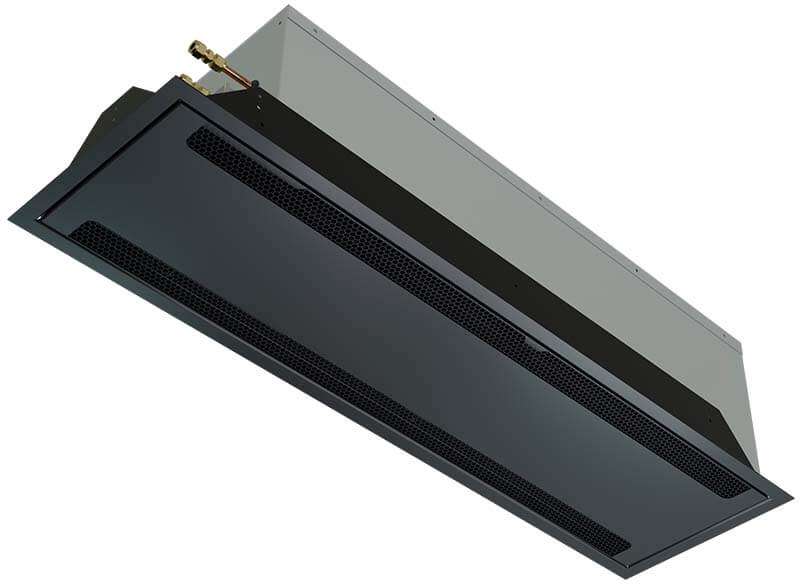

We are excited to introduce the new Wine Guardian CS050 Wall Wine System. A Wine Wall Ceiling System! Our new version of the Wine Guardian CS050, a ductless split system has a 10.25″ wide and 42″ long profile.
That can be mounted completely flush and blend in seamlessly into most wine room ceilings. The 10.25″ wide thin-set design also makes it ideal for wine walls, small wine rooms, and cabinet applications. Airflow is directed by supply and return slot diffusers along the length of the grille and the assembly is offered in a powder-coated black finish which can easily be painted on-site to match the ceiling décor.
Request a free thermal load calculation to verify the correct sized unit for your cellar.
1000-3645
The BTU/h value shown here is a theoretical number. There are often circumstances under which a cellar design may require a larger unit due to variables not accounted for in the formula. For example, these variables could be building materials (such as glass, stone, concrete, etc.)
Which do not offer the insulation capacity required to maintain the optimal cellar environment. We recommend purchasing a unit with a larger capacity to compensate for these unaccounted-for variables. An undersized unit can lead to premature failure and will most likely prevent the cellar from reaching your desired temperature.
| Model | CS050 (Wine Wall) |
|---|---|
| Capacity | 4050 BTU |
| BTU Max | 3645 |
| BTU min | 1000 |
| Volume | 250 – 2200 ft³ |
| Volume max | 2200 |
| Volume min | 250 |
| Length | 44.19″ (evaporator) 34″ (condenser) |
| Width | 12.44″ (evaporator) 12.3″ (condenser) |
| Electrical | 115/1/60 208-230/1/60 (condenser) |
| Where to Buy | Distributor |
| Line Frequency | 60 Hz |
| Height | 11.43″ (evaporator) 26″ (condenser) |
| Weight | 43 lbs 75 lbs (condenser) |
| Ductless/Ducted | Ductless |
XTREME LOW AMBIENT PROTECTION
This cold weather protection package allows the SS018 condensing unit to operate in conditions down to -20°F (-29°C) and is recommended in climates where the temperature normally drops to 20°F (-7°C).
Wine Guardian® humidifiers are uniquely designed to deliver superior performance and reliability, ensuring the proper conditions for your wine collection and cellar. Our humidifiers regulate and control humidity while offering the versatility to be used with any brand of wine cooling system.
LOW AMBIENT PROTECTION
Protects the system from cold temperatures below 5°C (40°F).
SERVING TEMPERATURE
Allows the system to control to an extended temperature range from 42°F to 64°F (5°C to 18°C). This option is ideal for single to multiple cabinet applications and small wine rooms where consumption-temperature cooling is preferred. It also allows the user to rotate wine stock and change set point from season to season, making it ideal for restaurants, wine bars, clubs, etc.
EXTREME CLIMATE PROTECTION BUNDLE
For Self-Contained Ducted systems: Contains an integral compressor crankcase heater and controls to protect the the system against low temperatures (required when intel air to the condenser coil is below 40°F/5°C). The bundle also contains an integral high capacity condenser fan and coil for operation at elevated ambient temperatures. This bundle be considered when inlet air to the condenser coil is above 100°F/38°C (condenser air inlet cannot exceed 120°F/49°C).
For Ducted Split systems: Unit protection in extreme climate conditions (on the condenser section only). It is required for continuous operation in climates that fall below 20°F. Enables the system to operate in temperatures as low as -20°F.
FREESTANDING HUMIDIFIER
The Freestanding Humidifier is installed inside your wine space to provide optimal humidity for perfect long-term wine storage. The Humidifier can be controlled by your existing Wine Guardian controller.
