CP 6200/8200
Duct Kit Hot Side + Inline Fan
#27351

$625.00

Shipping $55.00

CellarPro 6200/8200 VS Duct KIT (Hot Side) with Inline Fan (P/N 27351). Duct openings are designed to attach to two 8-inch ducts for condenser intake and exhaust. Removable slot plate provides easy access to removable air filter. Inline fan receives switched power from the cooling unit.

SKU: CPRO-27351 Category:

CellarPro 6200/8200 VS Duct KIT (Hot Side) with Inline Fan (P/N 27351). Duct openings are designed to attach to two 8-inch ducts for condenser intake and exhaust. Removable slot plate provides easy access to removable air filter. Inline fan receives switched power from the cooling unit.

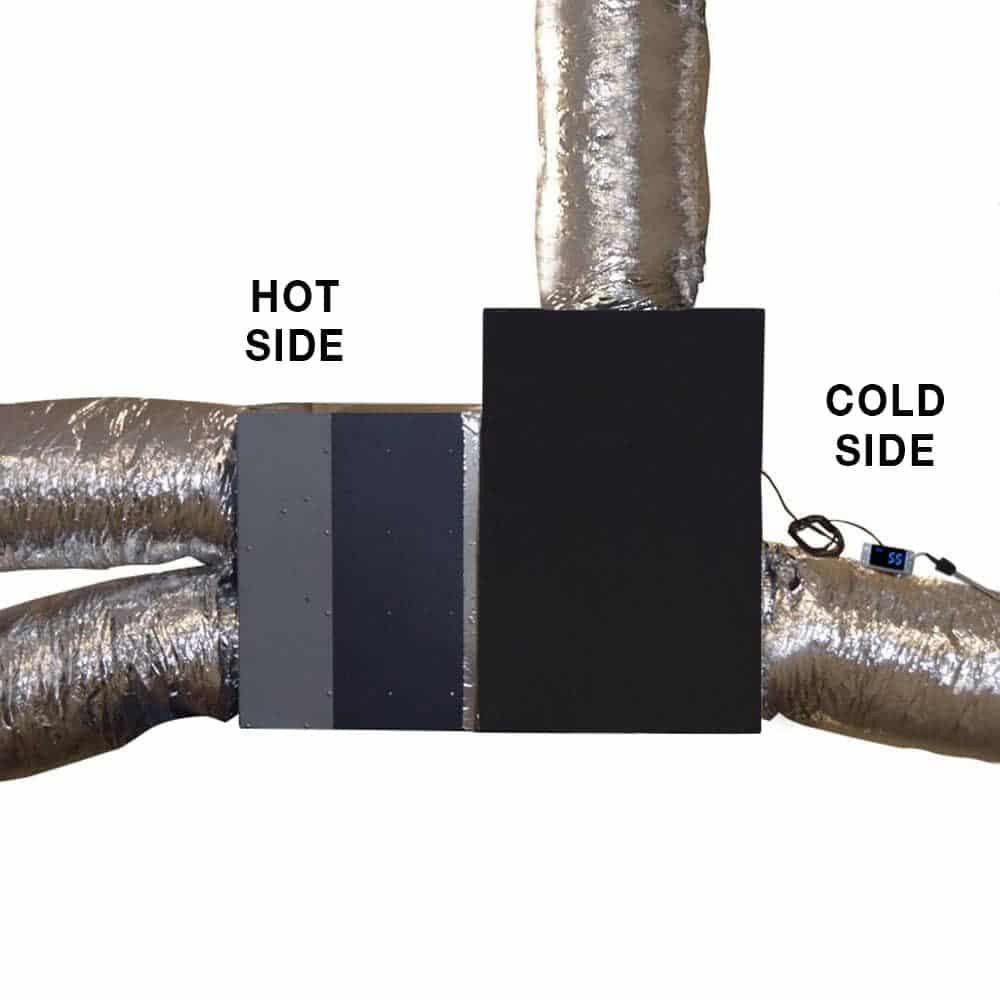

Shown at left: front duct kit (right) AND rear duct kit (left). The front duct kit is sold separately.

Kit includes: Hot side cuct hood, 240 CFM 8-inch inline fan and 50 feet (2 x 25) of 8-inch ducting.

The high fan speed setting is required when using our rear duct hood. The diameter of the ducting must be 8-inches or greater from start to finish, and must not be reduced.

Brand: CellarPro

Size: 16 1/4w x 8.0625d x 22h (in)

Weight: 50 lbs

Capacity: 100 Equivalent Feet

Warranty:
1 Year

Click on one of the following links for more information:

Custom rear duct hood and inline fan with switched power for CellarPro 6200 / 8200 VS cooling units. With this kit, the hot air intake/exhaust each can be ducted up to 100 equivalent feet (50 feet per opening).

  • Attaches easily to the rear of 6200 and 8200 wine cooling units
  • Provides quick access to removable air filter
  • Designed for easy hook-up to 8″ ducting
  • Inline fan (3000RPM, 240 CFM) has a permanently lubricated, impedance protected motor
  • Heavy gauge plated steel brackets
  • Switched power to match the cooling unit
  • One or both openings may be ducted (total of 100 equivalent feet)
  • Includes 50 feet of flexible insulated 8-inch ducting
  • Cold-rolled, thick-gauge steel
