Description
Custom duct hood and inline fan allow the hot air intake/exhaust to be ducted up to 200 equivalent feet (100 feet per opening).
- Attaches easily to the rear of 3200 and 4200 wine cooling units
- Provides quick access to removable air filter
- Designed for easy hook-up to 8″ ducting

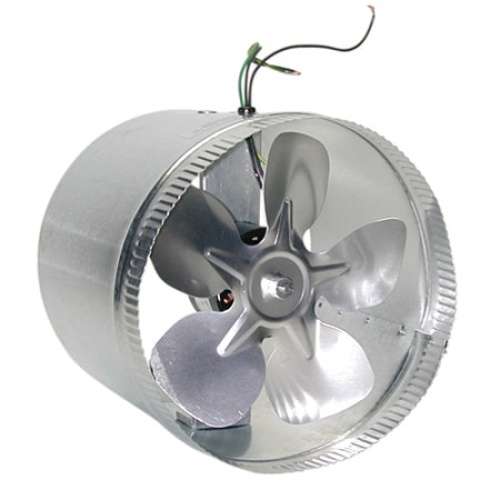

- Inline fan (3000RPM, 240 CFM) has a permanently lubricated, impedance protected motor
- Heavy gauge plated steel brackets
- Switched power to match the cooling unit

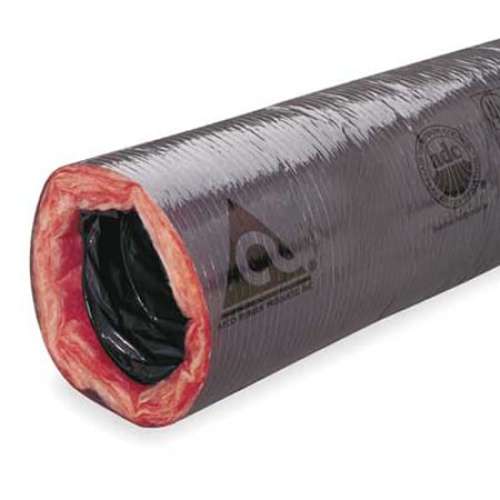

- 50 feet of 8-inch insulated ducting (R-6) included
Specs & Resources
Brand: CellarPro
Size: 14 1/2w x 8d x 19 3/4h (in)
Weight: 45 lbs
Power/Rating:
120V, 60Hz, 0.60 Amp
Capacity: 200 Equivalent Feet
Warranty:
1 Year
Click on one of the following links for more information:
- Rear Duct Hood Cut Sheet
- 3200 / 4200 + Combined Cut Sheets (As Ducted)
- Framing Diagram
- Installation Diagrams

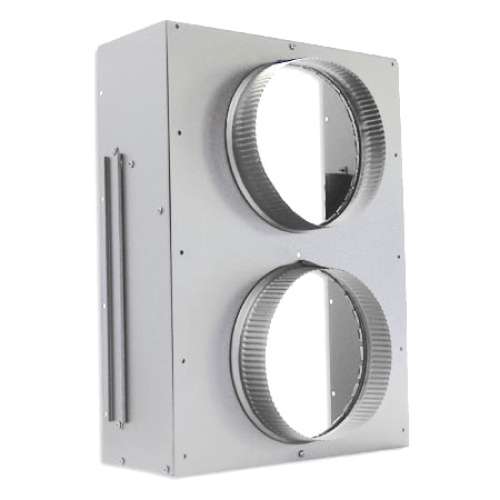

The depth of the hood includes 2 1/4 (in) for the 8-inch dia. duct adapters. The hood is designed to slide over the rear of the cooling unit, and will overlap the cooling unit by approximately 1 inch.
Features
Custom duct hood and inline fan allow the hot air intake/exhaust to be ducted up to 200 equivalent feet (100 feet per opening).
- Attaches easily to the rear of 3200 and 4200 wine cooling units
- Provides quick access to removable air filter
- Designed for easy hook-up to 8″ ducting
- Inline fan (3000RPM, 240 CFM) has a permanently lubricated, impedance protected motor
- Heavy gauge plated steel brackets
- Switched power to match the cooling unit
- 50 feet of 8-inch insulated ducting (R-6) included
