CellarPro 6200 / 8200 VS
Duct KIT (Cold Side) Low Relative Humidty RETROFIT
#19078
$995.00
Shipping $85.00

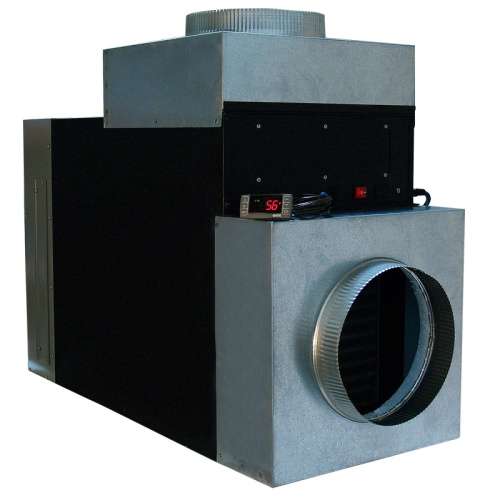

CellarPro 6200 / 8200 VS Duct HOOD (Cold Side) Low RH RETROFIT. Duct openings are designed to attach to two 10-inch ducts for evaporator intake and exhaust. Custom design allows access to controls and switches on the face of the cooling unit.
The exhaust exits from the top, and the intake returns from the front.

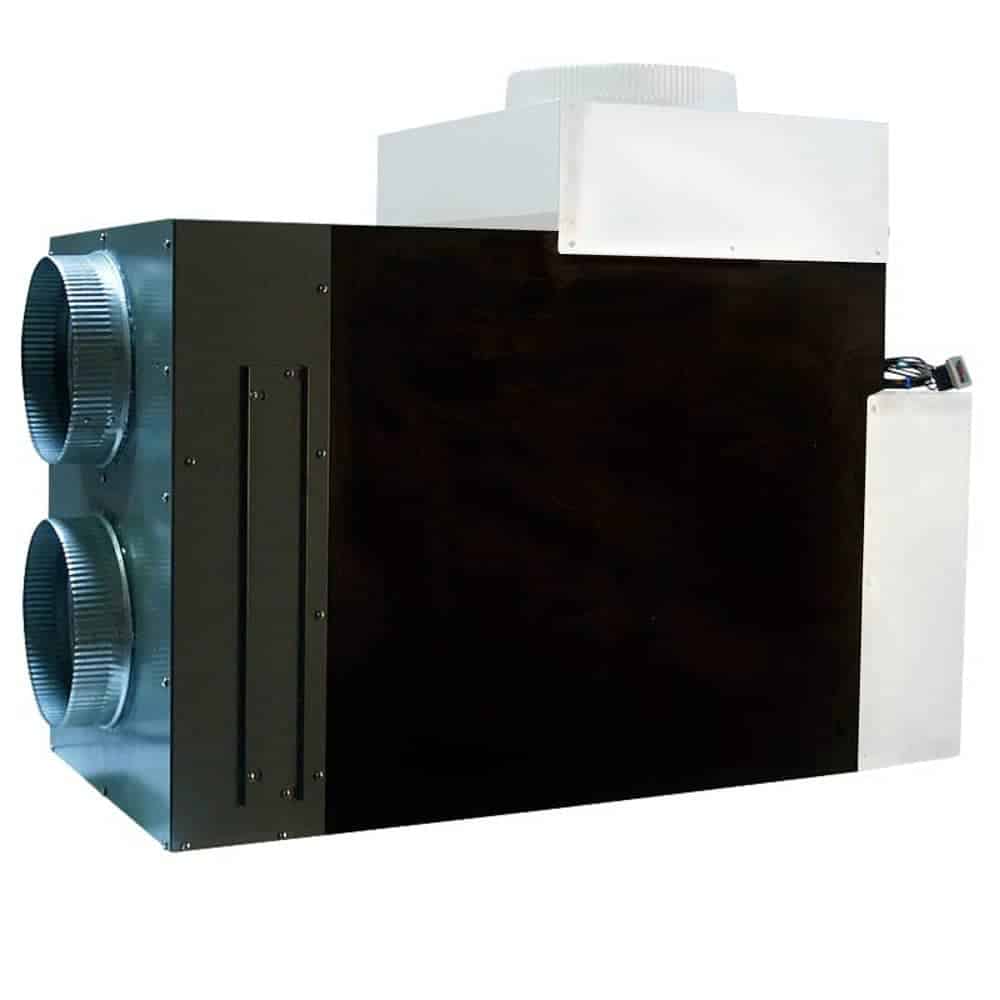

Shown at left: front duct hood (right) AND rear duct kit (left). The rear duct kit must be purchased separately.

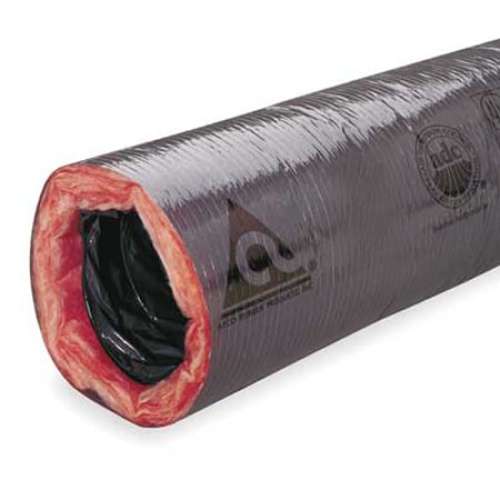

Hood includes: Duct hood, remove display, and bottle probe. Ducting is not included. When purchasing ducting, it must be 10″ diameter and at least R6 insulation.
The high fan speed setting is required when using our front duct hood.
- Custom FRONT duct HOOD for CellarPro 6200/8200VS cooling units. With this kit, the cold air intake and exhaust each can be ducted up to 100 equivalent feet (50 feet per opening).Not recommended for use in high humidity environments. Please use our high-humidity duct retrofit kit if the system will be used in a warm, moderate or high humidity environment.
- Attaches easily to the front (intake) and top (exhaust) of 6200/8200 VS refrigeration systems
- Provides access to cooling unit control panel and switches
- Designed for easy hook-up to 10″ ducting
- One or both openings may be ducted (total of 100 equivalent feet)
- Bottle probe with 10′ cord plugs into face of the cooling unit
- Designed to be used in Low Humidity environments
- Designed for use when the cooling unit has shipped, to be installed by a local tech
Configurations
Please note: This kit is recommended for low humidity, conditioned environments.Please use our high humidity duct kit if the system will be used in a warm, high humidity or unconditioned environment.
Be sure to refer to our ducting heat loss table and our duct correction table when sizing the cooling unit.
Specs & Resources
Brand: CellarPro
Size: 16 1/4w x 39 3/4d x 29 h (in)
Weight: 35 lbs
Capacity: 100 Equivalent Feet
Warranty:
1 Year
Click on one of the following links for more information:
Features
Custom duct hood RETROFIT for CellarPro 6200/8200VS cooling units. With this kit, the cold air intake and exhaust each can be ducted up to 100 equivalent feet (50 feet per opening).
Not recommended for use in high humidity environments. Please use our high-humidity duct retrofit kit if the system will be used in a warm, moderate , unconditioned or high humidity environment.
- Attaches easily to the front (intake) and top (exhaust) of 6200/8200 VS refrigeration systems
- Provides access to cooling unit control panel and switches
- Designed for easy hook-up to 10″ ducting
- Both openings must be ducted (total of 100 equivalent feet) to/from the cellar
- Bottle probe with 10′ cord plugs into face of the cooling unit
- Designed to be used in Low Humidity environments
- Designed for use when the cooling unit has shipped, to be installed by a local tech
