CellarPro 4000Shwc Cooling Unit (P/N 30545). CellarPro made the 4000Shwc Wine Cooler Cooling Units. In order to provide maximum cooling power and adjustable humidity control for cellars up to 1,000 cubic feet. Wine Cooler Cooling Units separate the evaporator from the condensing unit. Thus allowing the noise and heat from the condensing unit to be located away from interior living areas.
The Wine Cooler Cooling Units includes a variable-speed fan on the evaporator with a low setting for quieter operation and a high setting for maximum power. The condensing unit requires a continuous flow of water to cool itself, and does not need ventilation like air-cooled units.
- This Wine Cooler Cooling Units is made to separate the heat and noise from the condensing unit from interior living spaces.
- Our Evaporators are built with high-output centrifugal fans which include variable speed settings for your choice of maximum cooling power at the high fan speed, or quieter operation (53.7 decibels) at the low fan speed.
- Adjustable humidity control combines a high-output compressor with flexible fan cycles to maintain a recommended level of moisture inside your cellar.

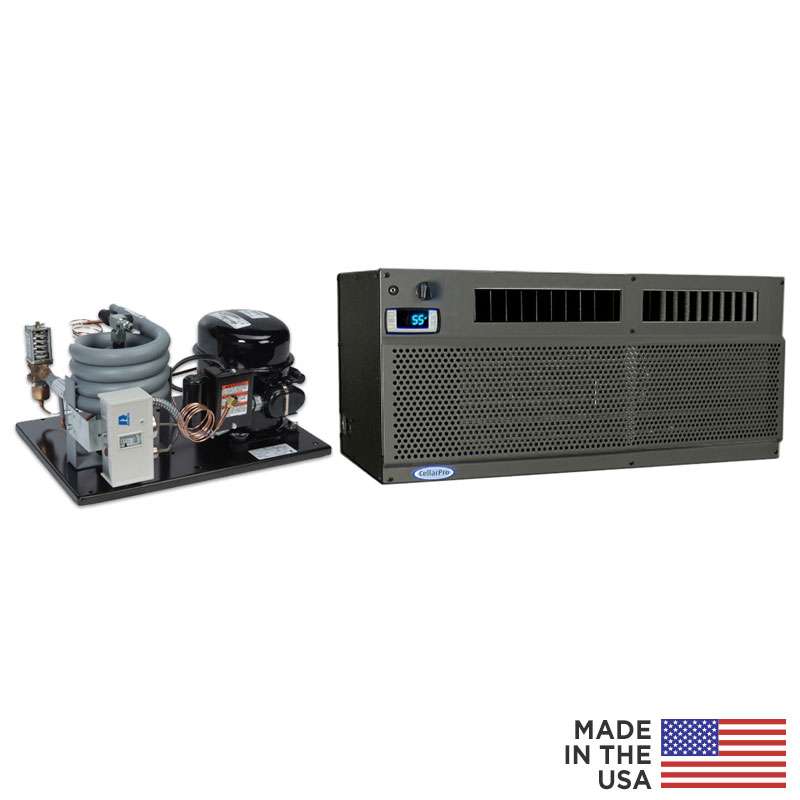

CellarPro 4000Shwc-EC Cooling Unit (P/N 30545). CellarPro engineered the 4000Shwc-EC cooling system to provide maximum cooling power and adjustable humidity control for cellars up to 1,000 cubic feet. Split refrigeration systems separate the evaporator from the condensing unit, allowing the noise and heat from the condensing unit to be located away from interior living areas. The 4000Shwc-EC includes a variable-speed fan on the evaporator with a low setting for quieter operation and a high setting for maximum power. The condensing unit requires a continuous flow of water to cool itself, and does not need ventilation like air-cooled units.
- Now with energy-efficient EC Fans on the cold side, save $99.44 in annual energy costs vs AC fans (assumes 75% runtime and $0.15/kWh)
- This unit is designed to separate the heat and noise from the condensing unit from interior living spaces.
- Our Evaporators are built with high-output centrifugal fans which include variable speed settings for your choice of maximum cooling power at the high fan speed, or quieter operation (53.7 decibels) at the low fan speed.
- Adjustable humidity control combines a high-output compressor with flexible fan cycles to maintain a recommended level of moisture inside your cellar.
- Extra-large coils generate maximum cooling power inside the cellar.
- Excess condensate is managed through a 1/2″ drain line that exits from a choice of knockouts in the evaporator.
- Commercial-grade Electrofin coating protects the evaporator coils from leaks and corrosion.

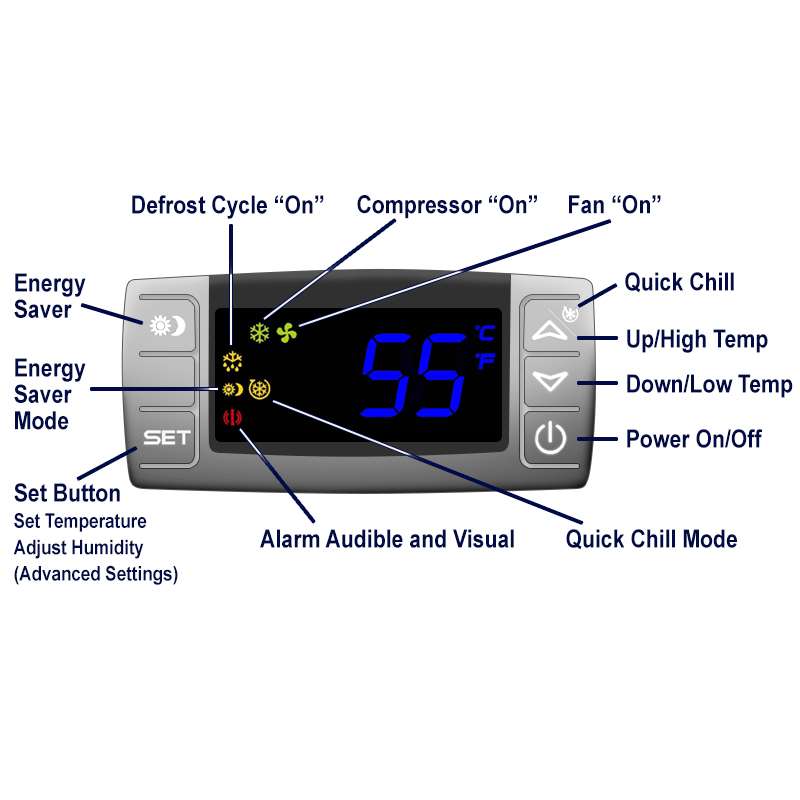

- Intuitive LED display panel mounted on the evaporator with digital programmable thermostat is simple and easy to use. Remote thermostat is available as an upgrade.
- Energy-saver mode, quick-chill mode, and auto-defrost cycle provide convenient solutions to common cellar needs.
- Temperature set point range is 47F to 62F when the cooling unit is properly sized.
- Unit operates with minimal vibrations and less noise than comparable units from competitors.
- Audible and visual alarms and maintenance-needed indicator protect the cooling unit and the wine cellar.
- Common dedicated 15-amp circuit is required to power the unit.
- Adjustable mounting brackets are included as standard equipment, and multiple knockouts and access points ensure easy installation.
- Factory-installed Expansion Valve and Liquid Line Solenoid Valve (optional) ensure maximum operating precision and range.
- Removable steel case and refrigerant access valve provides access to the internal components for servicing and repair.
- Sight Glass and Liquid Line Filter/Drier are included for easy installation and maintenance.
- Oversized Receiver allows for long line sets up to 100 equivalent feet and up to 30 vertical feet.
- Auto-reset high-pressure switch protects the system by interrupting power to the compressor when system pressure is too high.
- Evaporator and Condensing Unit are factory-pressurized and shipped with dry nitrogen to ensure leak-free installation.
- CellarPro’s 2-Year/5-Year Warranty, the most thorough in the industry, protects the unit against manufacturing defects.
- An optional Extended Warranty (P/N 7528) is available for additional protection.
3680 SENSIBLE BTUH @ 55F.
CellarPro’s 4000Shwc-EC cooling units (3/8 Ton Nominal) are engineered for wine cellars up to 1,000* cubic feet in both commercial and residential wine cellars.
The BTU/h value shown here is a theoretical number. There are often circumstances under which a cellar design may require a larger unit due to variables not accounted for in the formula. For example, these variables could be building materials (such as glass, stone, concrete, etc.)
Which do not offer the insulation capacity required to maintain the optimal cellar environment. We recommend purchasing a unit with a larger capacity to compensate for these unaccounted-for variables. An undersized unit can lead to premature failure and will most likely prevent the cellar from reaching your desired temperature.
- Capacity:3680 BTUH @ 55F
- Size:30 3/8w x 14 3/8d x 13 1/8h (in)
- Weight:144Â lb
- Power/Rating:115V AC / 60 Hz
Condensing Unit Dimensions:
– 45 lbs
– 13.8w x 18.4d x 10.2h

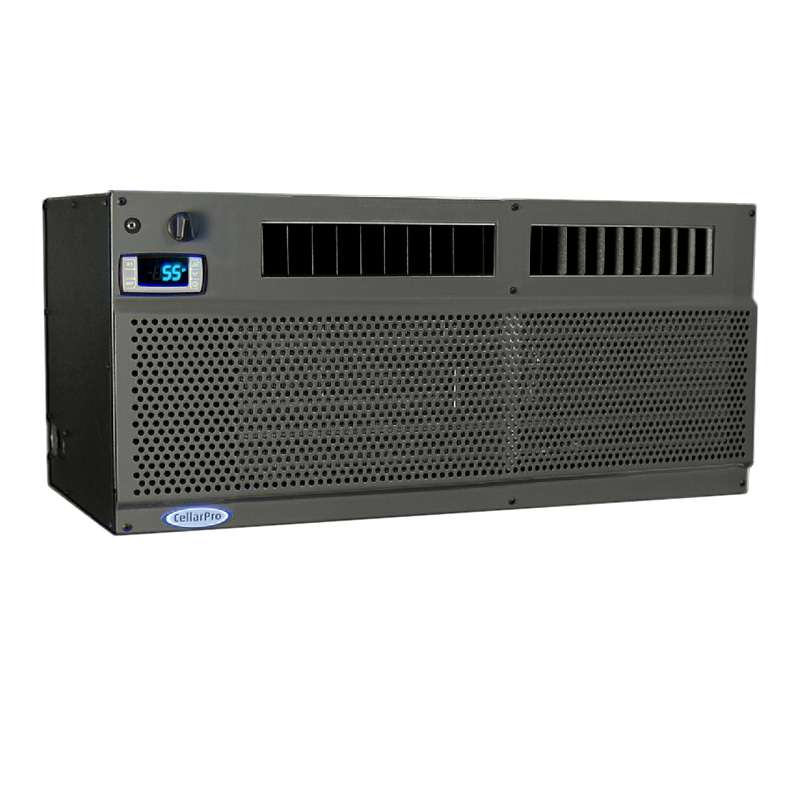

Evaporator Unit Dimensions (including mounting brackets):
– 65 lbs
– 30.4w x 14.4d x 13.2h
System Amps:
– Common dedicated 15-amp circuit is required to power the unit.
– Startup: 32.0 Amps
– Unit Amp Rating: 8.7 Amps (high fan speed)
– Total Watts: 602 (med fan speed)
BTUH @ 55F / Evaporator Decibels
– Low Fan Speed: 3130 / 53 dbA
– Med Fan Speed: 3430 / 59 dbA
– High Fan Speed: 3680 / 67 dbA
– 1/2 Ton Nominal
Condensing Unit Decibels: 60 dbA - SKU:4000Shwc
Warranty:
To activate your warranty, you must complete and return our Split Installation Checklist.
Warranty Overview
Â
Remote Thermostats, Displays & Probes
- Networkable Thermostats #27346 and #27310: Included as standard equipment allowing connection of your cooling unit to a networkable, Wi-Fi enabled thermostat (sold separately, Ecobee SmartThermostat Pro #31453). Must be ordered at the same time that the equipment is ordered. Other limitations apply – read the networkable thermostat description for more information.
- Remote Display #1603: lets you place the digital panel wherever you want, whether inside or outside the cellar. Includes 10 feet of wiring.
- Bottle Probe #1434: this remote thermostat with a 10-foot cord overrides the thermostat on the face of the evaporator, and allows it to monitor air or liquid temperatures at various locations inside the cellar.
- Extension cords available in 25-foot (#1780) and 50-foot (#1781) lengths.
