CellarPro 1800 Duct HOOD + Inline Fan (Hot Side) RETROFIT
#7410

$295.00

Shipping: $38.00

CellarPro 1800 Duct HOOD + Inline Fan (Hot Side) RETROFIT. This RETROFIT hood should be used if the cooling unit has already shipped. It includes:

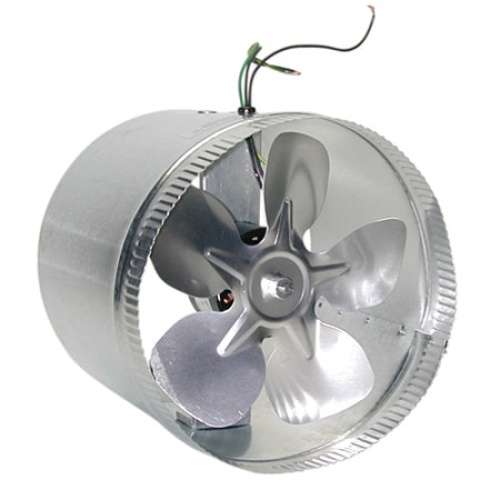

  • 6-inch inline fan (120 CFM)

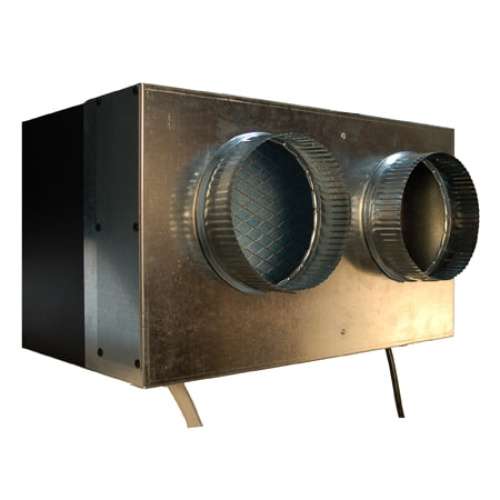

  • Galvanized metal duct hood slides over the rear of the cooling unit and baffles the air intake and exhaust
  • RETROFIT WIRE HARNESS + 8-foot power line provides switched power for the inline fan to match the on/off cycle of the wine cooling unit

The duct hood is designed with an easy-access panel to replace the air filter (sold separately), and openings for the drain line and power cord.

6″ ducting (required from start to finish) is not provided with this kit.

SKU: CPRO-7410 Category:

RETROFIT Hood allows CellarPro 1800 Series cooling units to be ducted up to 100 equivalent feet (50 feet per duct). Order this kit if your 1800 cooling unit already has been shipped.

  • RETROFIT Rear Duct Kit for CellarPro 1800 Cooling Units
  • Inline fan (3000RPM, 120 CFM) has a permanently lubricated, impedance protected motor
  • Heavy gauge plated steel brackets
  • Switched power to match the cooling unit
  • Designed to fit over the rear of all CellarPro 1800 wine cooling units
  • Includes an easy-access panel to replace air filters (sold separately)
  • Grommet openings for the drain line and power cord

Brand: CellarPro

Size: 18 1/4w x 6 3/4d x 10 1/4h (in)

Weight: 8 lbs

Power/Rating:
115V, 60 Hz, 0.6 amps (Inline Fan)

Capacity: 100 Equivalent Feet

Warranty:
1 Year
