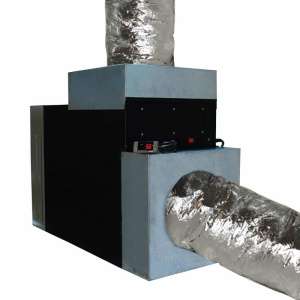

CellarPro 6200/8200 VS Duct HOOD (Cold Side) Low RH (P/N 16667). Duct openings are designed to attach to 2 insulated 10-inch ducts (not included) for evaporator intake and exhaust. Custom design allows access to controls and switches on the face of the cooling unit.

The exhaust exits from the top, and the intake returns from the front.

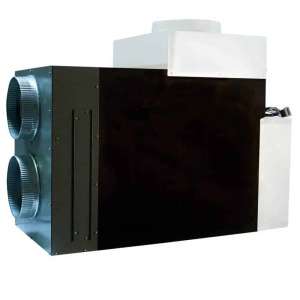

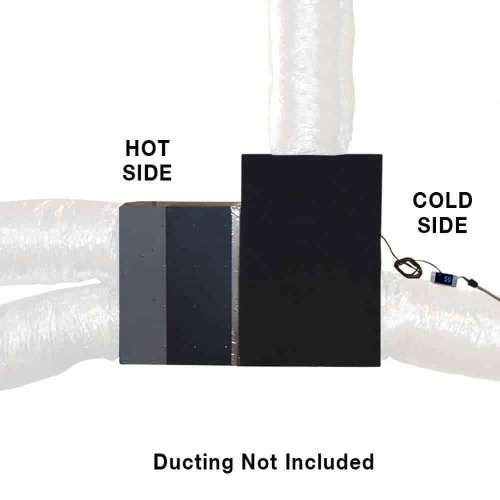

Shown at left: cold side duct kit (left) AND hot side duct kit (right). The hot side duct kit must be purchased separately.

Kit includes: Insulated duct hoods for cold-side intake and exhaust, bottle probe and remote control display kit.

The high fan speed setting MUST be used when our unit is ducted.

[/et_pb_tab][et_pb_tab title=”Configurations” _builder_version=”4.17.3″ _module_preset=”default” global_colors_info=”{}”]

Please refer to the following resources before purchasing this kit:
This kit may only be used in conditioned, low humidity environments. Use our Low RH vs High RH Duct Kit Chart to determine whether this kit is appropriate for your installation. In some cases, the high-humidity duct hood may be required, and in some cases, the conditions are too extreme for any of our cold-side duct kits.
Use our ducting heat loss table and our duct correction table to correctly adjust the sizing of your cooling unit, because ducting will add to the thermal load of the cellar.
Refer to our Bottle Probe Operating Instructions to correctly set the cooling unit depending on how you’re using the Bottle Probe

[/et_pb_tab][et_pb_tab title=”Specs & Resources” _builder_version=”4.17.3″ _module_preset=”default” global_colors_info=”{}”]

.Brand: CellarPro

Size: 16 1/4w x 39 3/4d x 29 h (in)

Weight: 35 lbs

Capacity: 100 Equivalent Feet

Warranty:
1 Year

Click on one of the following links for more information:

• Front Duct Hood Cut Sheet
• Framing Diagram
• As Ducted Diagrams

[/et_pb_tab][et_pb_tab title=”Features” _builder_version=”4.17.3″ _module_preset=”default” global_colors_info=”{}”]

Custom FRONT duct HOOD for CellarPro 6200 / 8200 VS cooling units. With this kit, the cold air intake and exhaust each can be ducted up to 100 equivalent feet (50 feet per opening).

Not recommended for use in high humidity environments. Please use our high-humidity duct kit if the system will be used in a warm, moderate , unconditioned or high humidity environment.

• Attaches easily to the front (intake) and top (exhaust) of 6200/8200 VS refrigeration systems
• Provides access to cooling unit control panel and switches
• Designed for easy hook-up to 10″ ducting
• Both openings must be ducted (total of 100 equivalent feet) to/from the cellar
• Bottle probe with 10′ cord plugs into face of the cooling unit
• Designed to be used in Low Humidity environments
