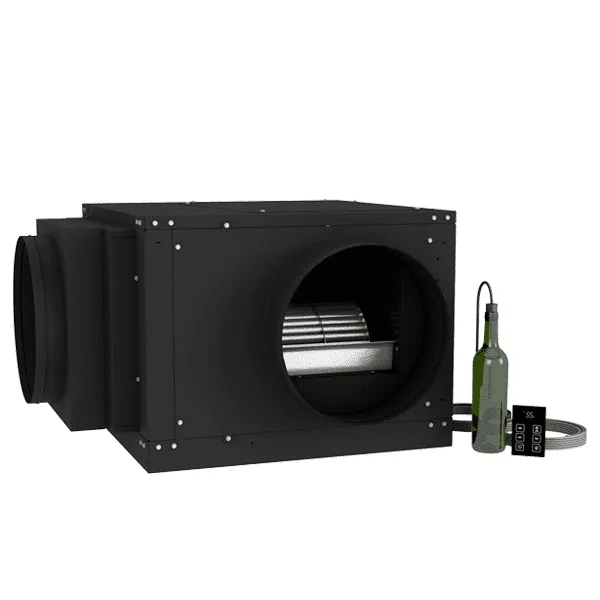

WhisperKOOL Quantum SS12000 – Split System

$10,138.00

  • BTU/H: 12,530 – 13,844
  • Dimensions: 31.18″L x 10.75″W x 23.25″H
  • The Ducted Wine Cellar Cooling Unit is designed to handle larger and more challenging wine cellars.

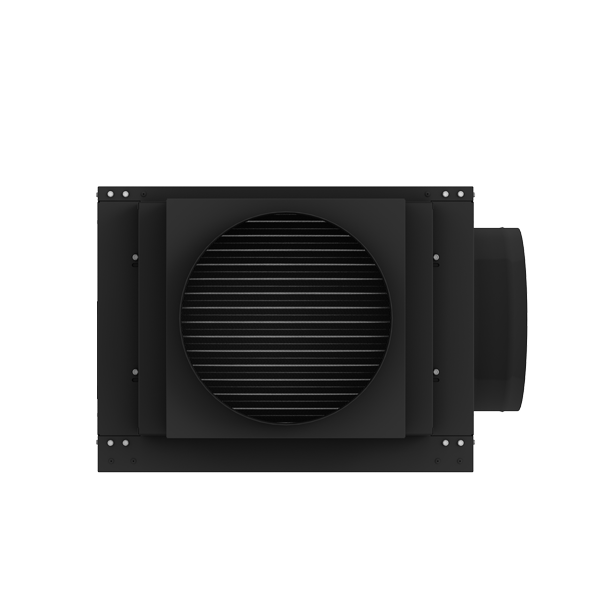

The Ducted Wine Cellar Cooling Unit is designed to handle larger and more challenging wine cellars. The Quantum 12000 Ducted Wine Cellar Cooling Unit is the highest-capacity series units that we offer. This split system includes multiple ducting options allowing for ease and flexibility of installation as well as accessibility. The air handler can be ducted up to 25 feet creating a virtually quiet cellar environment.  The evaporator coil is coated with electro fin coating to minimize corrosion.

The WhisperKOOL® Quantum 12000 wine cellar cooling system is engineered for high-end residential and commercial wine storage. This fully ducted split system is designed for wine cellars requiring superior cooling capacity, precise temperature and humidity control, and silent operation. Perfect for large-scale wine cellars, the Quantum Series offers flexible installation options with up to 25 feet of ducting between the evaporator and condensing units, ensuring a quiet cellar environment without compromising cooling efficiency.

The Quantum 12000 wine cellar cooling system is now enhanced with premium features such as a stainless steel drip tray, a sleek black metal kit, and a three-speed fan switch for airflow customization. The external insulation blanket improves energy efficiency by reducing heat loss, and the optional UV-C lighting system provides additional protection by inhibiting microorganism growth in the system.

Designed for reliability and durability, the Quantum 12000 wine cellar cooling system operates effectively in ambient temperatures as low as -15°F. With professional-grade components, the Quantum Series ensures long-term performance, protecting your wine collection for years to come.

  • Interchangeable evaporator airflow panels
  • Includes a pump system to remove access condensation
  • Standard and 24V thermostat options are available
  • Electro-fin coated coils for protection against outgassing that occurs in cellars
  • Standard and 24V thermostat options are available
  • Condensing unit can be placed outdoors with the purchase of exterior housing
  • Includes a pump system to remove access condensation
  • 55°F temperature differential between cellar and condensing unit air intake temperature
  • 220V High Efficiency (H.E.) Condenser Option
  • 3-Speed fan switch
  • Stainless Steel Drip Tray
  • New sleek black metal kit
  • Quiet and efficient operation
  • UV-C Lighting System (ADD-ON)
  • Liquid-temperature-measuring bottle probe
  • KDT Digital Controller/Thermostat with 50-ft. Cable
  • Electro-fin coated coils for protection against corrosion
  • Standard and 24V thermostat options available (ADD-ON)

BTU/H RATING

12,530 – 13,844

The BTU/h value range shown here is a theoretical number. There are often circumstances under which a cellar design may require a larger unit due to variables not accounted for in the formula. For example, these variables could be building materials (such as glass, stone, concrete, etc.) that do not offer the insulation capacity required to maintain the optimal cellar environment. We recommend purchasing a unit with a larger capacity to compensate for these unaccounted-for variables. An undersized unit can lead to premature failure and will most likely prevent the cellar from reaching your desired temperature.

This Whisperkool Quantum SS12000 cooling system is designed to operate in ambient conditions as low as -15 degrees and is crafted with the highest quality, professional-grade parts for longevity and performance. The Whisperkool Quantum SS12000 cooling system is sure to give you that extra boost of cooling power and the quality you have come to expect from WhisperKOOL.

FREE HEATLOAD CALCULATION

Not sure if the Platinum Split is suitable for your wine cellar? Call 800-323-3130.

Note: A qualified HVAC-R technician is required for installation. Failure to install the system by a qualified technician will void the warranty.

THERMOSTAT & BOTTLE PROBE

*PLEASE NOTE: WhisperKOOL does not provide a smart thermostat. By selecting the 24V Thermostat Conversion Kit, you have acknowledged that the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. To run the equipment, you will have to source and purchase your own 24V smart thermostat. The WhisperKOOL Customer Satisfaction Team does not provide technical support for smart thermostats.

Ducted Wine Cellar Cooling Unit 220V

Model Quantum SS12000
Cellar Size
4,000 cu. ft.*
BTU/h
 (85°F condenser air intake temperature) 12530
CFM
810
Dimensions
Evaporator: 29.5”L x 30.9”W x 19.8”H • Condenser: 24”L x 18.98”W x 16.16”H
Refrigerant
R-134a
HP
 4.92
Voltage Rating
 Evaporator: 115V (15 amp dedicated circuit required) Condenser: 230V (20 amp dedicated circuit required)
Weight
(lbs) Evaporator: 96 • Condenser: 85
Amps
Evaporator: 3.2 (running amps) Condenser: LRA 56/RLA 12
Line Set
 Liquid Line 3/8” • Suction Line 7/8”
Drain Line
 ¾” ID CPVC
Installation
Evaporator can be installed up to 25 duct feet away from the cellar. Condensing unit can be installed for up to 100 line feet from the evaporator unit.
Thermostat
Advanced digital display (50ft. cable), liquid-temperature-measuring bottle probe (50ft. cable)
Temp. Delta
Can maintain a 55°F cellar temperature with up to 110°F condenser air intake temperature
Warranty
Two-year limited warranty (parts and labor)

Ducted Wine Cellar Cooling Unit 220V HE

Model 12000
Cellar Size 4
000 cu. ft.*
Fan Speed
 High
BTU/h
 (60°F condenser air intake temperature) Sensible / Total 12147 / 14576
BTU/h
 (75°F condenser air intake temperature) Sensible / Total 12187 / 14256
BTU/h
 (85°F condenser air intake temperature) Sensible / Total 11704 / 13844
dBA 52
Dimensions
29.5”L x 30.9”W x 19.8”H
Refrigerant
 R-134a
Voltage Rating
120V (15-amp dedicated circuit required)
Weight (lbs)
96
Amps
 9.2 (Running Amps)
Drain Line
3/4” ID CPVC
Installation
Evaporator unit can be installed up to 25 duct feet away from the cellar.
Thermostat
 Advanced digital display (50-ft. cable), liquid-temperature-measuring bottle probe (50-ft. cable), 24V – customer supplied
Temp. Delta
Can maintain a 55°F cellar temperature with up to 120°F condenser air intake temperature
Warranty
Two-year limited warranty (parts and labor)

Condenser
dBA 52
Dimensions 31.18″L x 10.75″W x 23.25″H
Condensing Unit HP 1.5 HP
Voltage Rating 220V (15-amp dedicated circuit required)
Weight (lbs) 84
Amps LRA 23.6, RLA 5.76, FLA 6.6
Line Set Liquid Line 3/8” OD • Suction Line (Less than 50ft. 5/8” OD) (Greater than 50ft. 3/4” OD)
Installation Condensing Unit can be installed up to 100 line feet from the evaporator unit
Temp. Delta Can maintain a 55°F cellar temperature with up to 120°F condenser air intake temperature
Warranty Two-year limited warranty (parts and labor)
