$12,639.00
WhisperKOOL Platinum Split Twin Ducted Cooling System has more installation options than a self-contained system. The unit may be installed up to 25 ducted feet from the cellar, with the cool air flowing to the cellar
DUCTED SPLIT SYSTEM
Described in the simplest terms, a WhisperKOOL Platinum Split Twinis Ducted Split System is a cooling unit wherein the evaporator unit and condensing unit have been “split” into two separate units instead of being contained within the same housing. The evaporator unit is located in or near your cellar, and the condensing unit is generally located outside or in an attic or utility room.
WhisperKOOL Platinum Split Twin Split System allows you to decide where the evaporator unit and the condensing unit will be located. The condensing unit can be located up to 100 ft. away from the evaporator unit. The evaporator unit will be mounted in the cellar or it can also be located nearby with ducting.
Note: A qualified HVAC-R technician is required for the installation of the WhisperKOOL Platinum Split Twin Ducted Split System. Failure to install the system by a qualified technician will void the warranty.
FEATURES OF WhisperKOOL PLATINUM SPLIT TWIN
FREE HEATLOAD CALCULATION
Not sure if the Platinum Split is suitable for your wine cellar? Call 800-323-3130.
INSTALLATION OF WHISPERKOOL PLATINUM SPLIT TWIN
WhisperKOOL Platinum Split Twin Ducted Cooling System has more installation options than a self-contained system. The unit may be installed up to 25 ducted feet from the cellar, with the cool air flowing to the cellar and the heat exhaust ducted to the outside of the home. Ducting is also a more aesthetic choice for wine collectors who do not want to see a cooling unit in the cellar. Noise from the unit will be reduced or eliminated, depending on the installation.
The BTU/h value range shown here is a theoretical number. There are often circumstances under which a cellar design may require a larger unit due to variables not accounted for in the formula. For example, these variables could be building materials (such as glass, stone, concrete, etc.) that do not offer the insulation capacity required to maintain the optimal cellar environment. We recommend purchasing a unit with a larger capacity to compensate for these unaccounted-for variables. An undersized unit can lead to premature failure and will most likely prevent the cellar from reaching your desired temperature.
220V WhisperKOOL Platinum Split Twin
220V HE

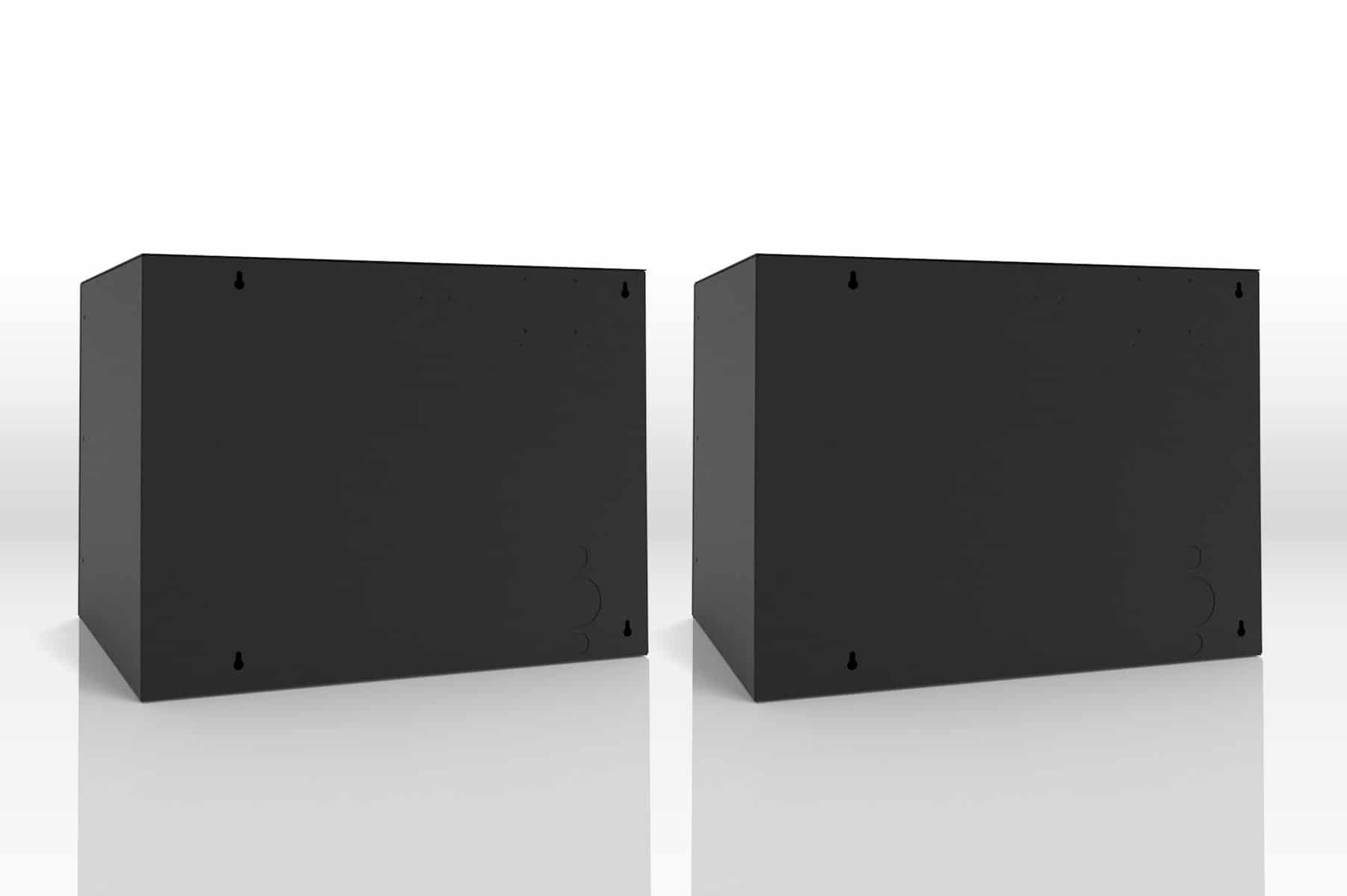

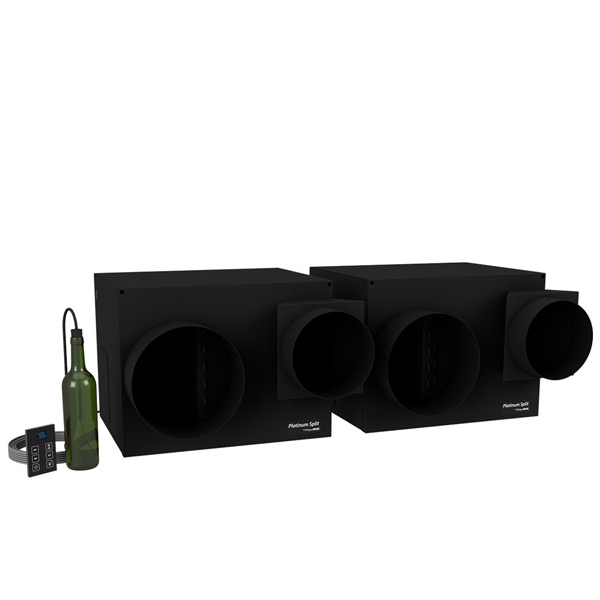

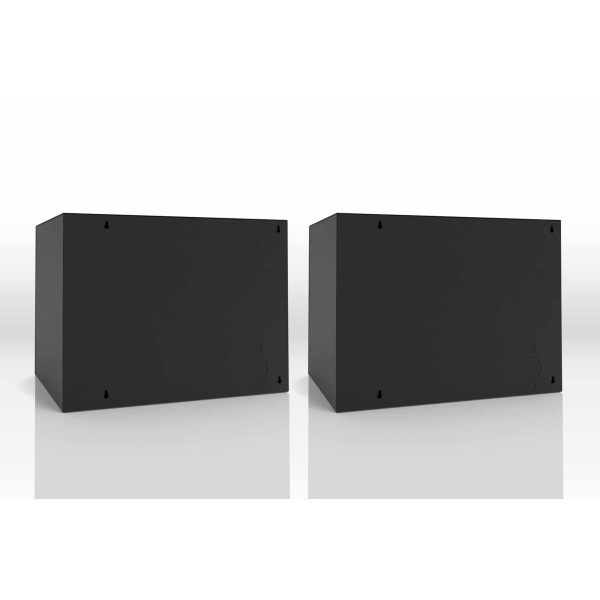

EVAPORATOR For WhisperKOOL Platinum Split Twin
Condenser For WhisperKOOL Platinum Split Twin System
