$5,910.00

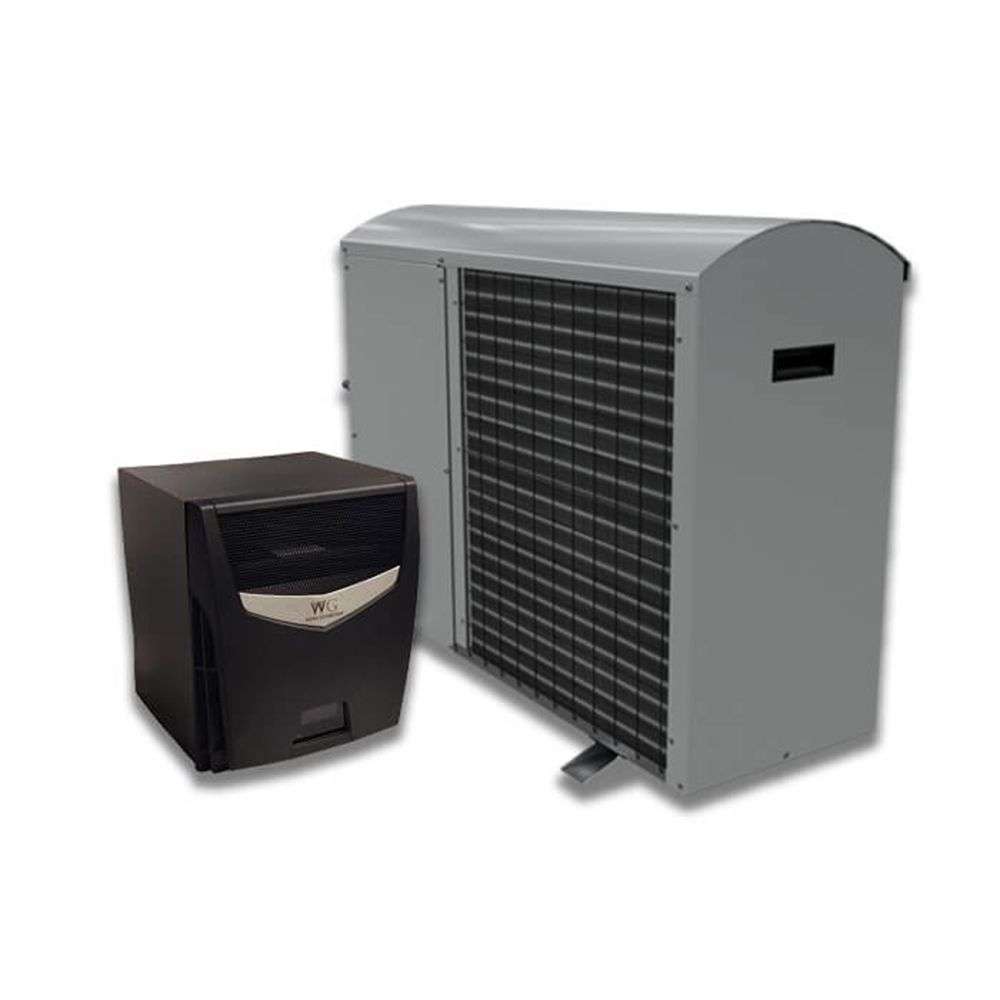

Wine Guardian SS018 – DUCTLESS SPLIT SYSTEM

Wine Guardian SS018 Ductless Split Cooling System is an entirely new, cutting-edge system. It’s versatile enough for either surface mounting or space-saving through-the-wall mounting while providing the flexibility of a split system

Request a free thermal load calculation to verify the correct sized unit for your cellar.

Description

Wine Guardian SS018 Ductless Split Cooling System is an entirely new, cutting-edge system. It’s versatile enough for either surface mounting or space-saving through-the-wall mounting while providing the flexibility of a split system. The Wine Guardian wine cellar ductless split system offers high ambient protection in a sleek, newly styled condensing unit. The condensing unit comes in a small footprint, giving it the ability to mount to a variety of structures.

Features Of Wine Guardian SS018 Ductless Split Wine Cooling System

Wine Guardian SS018 Ductless Split Cooling Unit has several different options available. An available electric heater is a factory-mounted option that will protect your wine cellar from cold ambient temperatures. A standalone humidifier is a necessary addition if the wine cellar consistently sees low relative humidity (RH) levels.

Wine Guardian’s remote monitoring and sensing system allows the user to place up to three (3) remote sensors in the wine cellar. In order to monitor average cellar conditions at different locations in the cellar (near the ceiling, near the floor, etc.). This information is continuously relayed to the cooling unit and to the remote interface controller.

Standard Features

  • Commercial-grade, corrosion-resistant construction for long-term durability
  • Fan-coil can be mounted through-the-wall or surface mount— exclusive to this unit
  • Condensing unit operating capacities from 40°F/4°C to 115°F/46°C
  • Condensing unit standard with outdoor enclosure
  • Small footprint— fan coil fits well within racking or above a doorway
  • Quiet and efficient operation
  • Adjustable louvers



Options

Specifications

2800 BTU/H

CONDENSER SPECS
Room Capacity: up to 1,200 cu. ft.
Width: 12″
Height: 26″
Depth: 34″
Weight: 75 lbs
Electrical: 208v-230v/1ph/60hz



EVAPORATOR SPECS
Width: 13 1/4″
Height: 15 7/8″
Depth: 14 1/4″
Weight: 25 lbs
Electrical: 208v-230v/1ph/60hz
Item: WRAWGSS018LA

Manual / Warranty

Datasheet (PDF)

Spec Sheet (PDF)

Owners Manual (PDF)

Warranty (PDF)



Additional information

Specs

Model: SS025 Capacity: 400-2,000 cubic feet Fan Coil: Length: 14″ Width: 17″ Height: 14″ Electrical 115v/1ph/60hz Weight: 25 lbs. Condensing Unit: Length: 24″ Width: 19″ Height: 18″ Electrical 115v/1ph/60hz Weight: 85 lbs.

Btu

2800

Brand

Wine Guardian
