WhisperKool SC PRO 4000 – Self Contained

$3,419.00

  • BTU/H: 2253
  • Dimensions: Length: 17.5″ , Width: 14.25″ , Height: 15.75″
  • Self Contained, Through The Wall Wine Cooling Unit

The Whisperkool SC 4000i Self Containe Cooling Unit is our easiest-to-install, self-contained cooling unit. It does not require an HVAC-R technician to install it.

The Whisperkool SC 4000i wine cooling unit embodies the latest and greatest system design technologies in an all-new housing design. Developed upon feedback directly from customers and installers, the unit incorporates a variety of high-end components at an affordable price point.

By combining powerful airflow with quiet operation technology, the SC PRO is unrivaled when it comes to efficiently cool small to mid-sized wine cellars.

  • Liquid-temperature-measuring bottle probe
  • Advanced digital controller
  • Dynamic airflow with quiet operation technology
  • Condensate management system
  • Coated evaporator coil
  • Front or rear power switch
  • Single-piece mounting bracket
  • Durable powder-coated finish

BTU/H RATING

2253

The BTU/h value shown here is a theoretical number. There are often circumstances under which a cellar design may require a larger unit due to variables not accounted for in the formula. For example, these variables could be building materials (such as glass, stone, concrete, etc.) which do not offer the insulation capacity required to maintain the optimal cellar environment. We recommend purchasing a unit with a larger capacity to compensate for these unaccounted-for variables. An undersized unit can lead to premature failure and will most likely prevent the cellar from reaching your desired temperature.

MODERN TECHNOLOGY

The SC PRO Series embodies the latest and greatest system design technologies in an all-new housing design. Developed upon feedback directly from customers and installers, the unit incorporates a variety of high-end components at an affordable price point.

By combining powerful airflow with quiet operation technology, the SC PRO is unrivaled when it comes to efficiently cool small to mid-sized wine cellars.

What separates the original SC Series from the SC PRO Series?

The Whisperkool SC Pro 4000 Self Containe Cooling Unit comes complete with a new blower fan system that optimizes performance while operating at a significantly lower noise level. It also reintroduces a condensate management system, which effectively evaporates up to 3oz. of water an hour.

This management system renders the drain line as an additional safeguard rather than a definite need.

NEW AND IMPROVED

The SC PRO Series is a direct replacement for one of the most well-known cellar cooling units, the XLT. Designed for simple, through-the-wall installation, the unit fits between standard wall studs and a single-piece mounting bracket eliminates the need for a support shelf.

The SC PRO has a 30°F temperature differential. In order to keep your cellar at 55°F, the condenser intake temperature should not exceed 85°F. This makes interior installation ideal for SC Series units.

Note

HOT AIR EXHAUST
Self-contained units require adequate ventilation on the exhaust side of the unit to dissipate the heat generated during operation.
The condenser intake temperature should not exceed 85°F.

Cellar Size:

Approx. 1000 cu. ft. when the cellar is fully insulated and sealed with a proper vapor barrier (each wine cellar is unique and has specific cooling requirements; heat load calculations should always be performed prior to selecting a cooling unit)

BTU/h w/85°F air entering condenser coil:

2253
Dimensions:
17.5″L x 14.25″W x 15.75″H
Refrigerant:
R-134a
HP:
1/6+
Voltage Rating:
115V (20-amp dedicated circuit required); 230V (subject to availability)
Weight:
65 lbs
Amps:
4.7 (running amps)
Drain Line:
1/2″ ID clear plastic tubing
Installation:
Through-the-wall, partially ducted
Thermostat:
Advanced digital controller, liquid-temperature-measuring bottle probe (retractable cable)
Temp. Delta:
Can maintain a 55°F cellar temperature with up to 85°F condenser air intake temperature

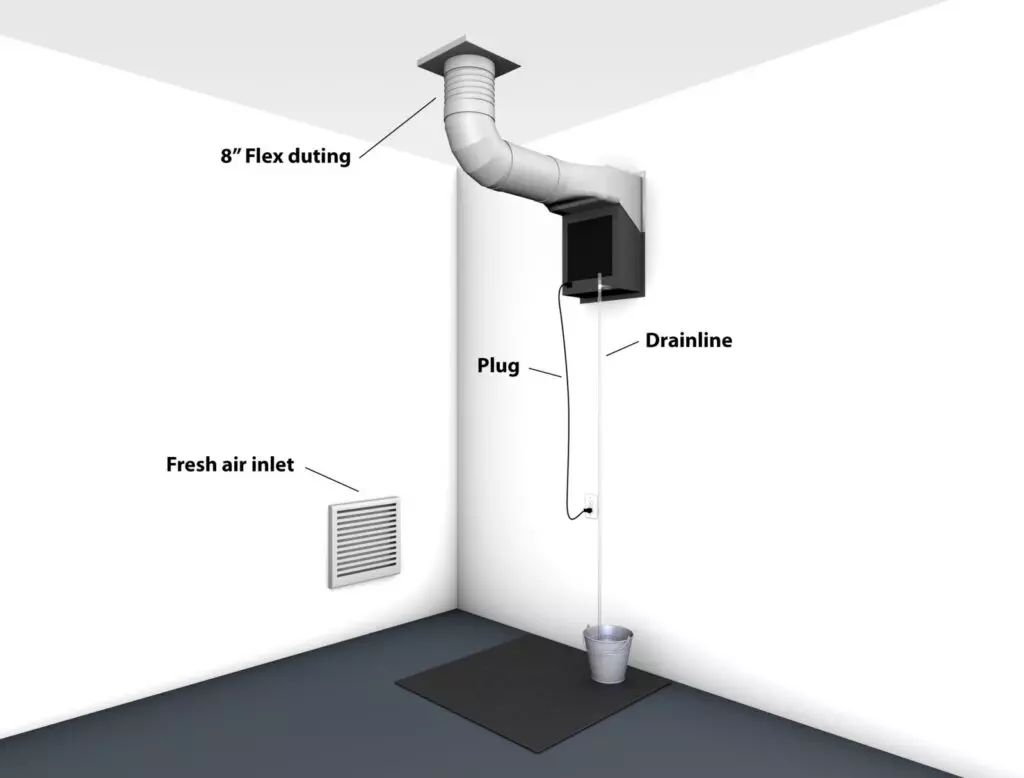

Ducting Options:
Exhaust air can be ducted using the optional ducting kit
Warranty:
Two-year limited warranty (parts and labor) / Five-year limited warranty (compressor)
