$275.00

CellarPro 2000 VS Duct HOOD (Hot Side)
#27111

CellarPro 2000VS Duct HOOD (Hot Side) (P/N 27111). Duct openings are designed to attach to two 6-inch ducts for condenser intake and exhaust. Removable slot plate provides easy access to removable air filter.

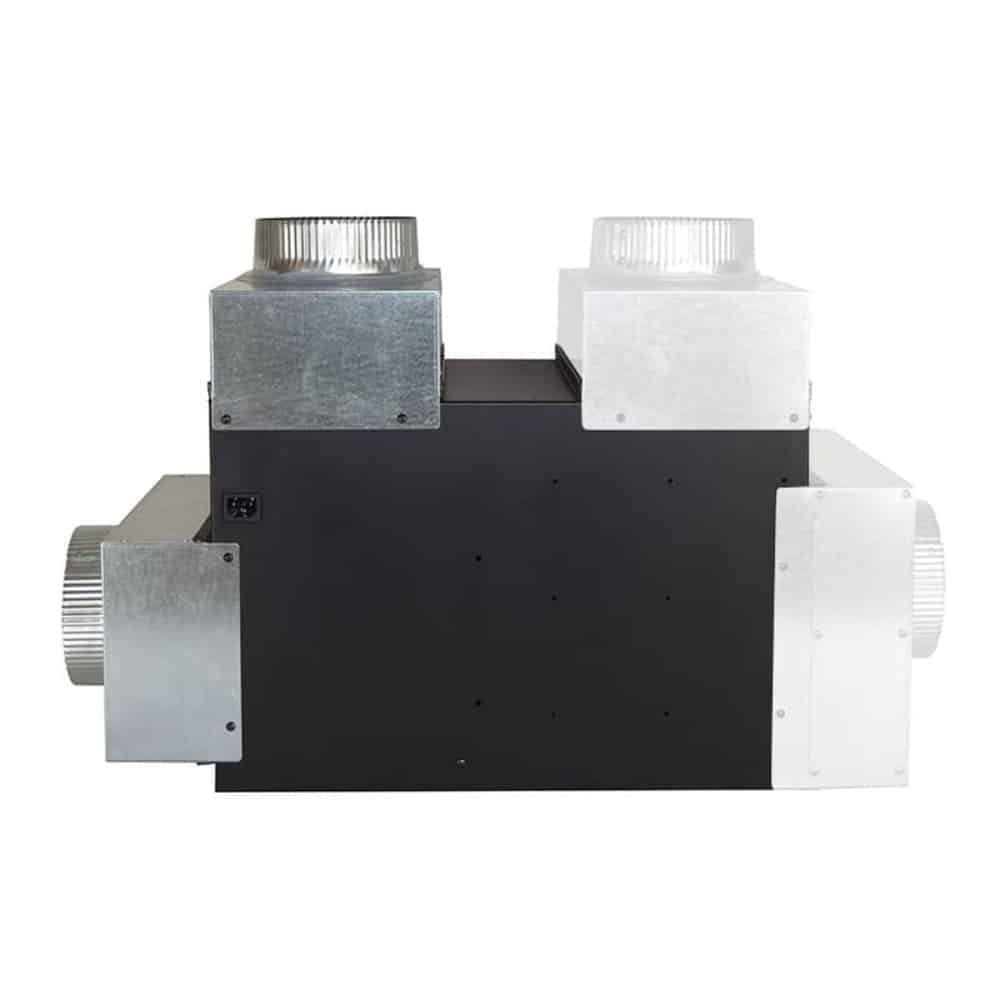

Shown at left: cold side duct hoods (left) AND hot side duct hoods (right). The cold side duct hoods are sold separately.

SKU CPRO-27111 Category

Description

CellarPro 2000VS Duct HOOD (Hot Side) (P/N 27111). Duct openings are designed to attach to two 6-inch ducts for condenser intake and exhaust. Removable slot plate provides easy access to removable air filter.

Shown at left: cold side duct hoods (left) AND hot side duct hoods (right). The cold side duct hoods are sold separately.

Hood includes: Hot side duct hood for intake and for exhaust. Ducting (6-inch diameter) is not included.

The high fan speed setting is required when using our rear duct hood.

Specs & Resources

Brand: CellarPro

Size: As installed: Exhaust: 14 1/4w x 3 3/4d x 7 1/2h (in) / Intake: 14 1/4w x 3 3/4d x 10 1/2h (in)

Weight: 8 lbs

Capacity: 50 Equivalent Feet

Warranty:
1 Year

Click on one of the following links for more information:

Features

CellarPro 2000 VS Duct HOOD Hot Side for CellarPro 2000 VS cooling units. With this kit, the hot air intake and/or exhaust can be ducted up to 50 equivalent feet (25 feet per opening).

  • Attaches easily to the rear of 2000VS wine cooling units
  • Provides quick access to removable air filter
  • Designed for easy hook-up to 6″ ducting (not included)
  • One or both openings may be ducted (total of 50 equivalent feet)
  • Cold-rolled, thick-gauge steel



Additional information

SPECS

Size: 18 1/8w x 6 3/4d x 10 1/8h (in) Weight: 34 lb Power/Rating: 115V, 60 Hz, 0.6 amps (Inline Fan) The depth of the hood includes 2 1/4 inches for the 6-inch dia. duct adapters. The hood is designed to slide over the rear of the cooling unit, and will overlap the cooling unit by approximately 1-2 inches.
