CellarPro 1800XTS-ECX B Beer Specialty Cooling Unit #2176

$2,050.00

  • 1624 BTU/h
  • Dimensions: Width 18″ , Depth 16 1/2″ . Height 10 1/2″
  • Ideal for small wine cellars and wine closets
  • A Beer Wine Cooling Unit , Through The Wall Wine Cooling Unit

CellarPro 1800XTS-ECX-B Beer Cooling System (P/N 2176). CellarPro’s 1800XTS-ECX-B Beer Cooling System has been optimized to provide maximum cooling power. And adjustable humidity control for storing and aging beer collections.

Optimal beer storage conditions require steady temperatures around 45F. And relative humidity between 45 and 60 percent. Now with energy-efficient EC fans, our 1800XTS-ECX-B Beer Cooling System includes a 1/2-inch condensate drain line. And 100W heating element to burn off excess condensate, and an extra defrost sensor to prevent ice buildup.

Our Beer Cooling System are made to be used in properly-constructed wine cellars that are adequately insulated, airtight and sealed with a vapor barrier. In improperly-constructed cellars, the cooling unit will create excess condensation, leading to damage and premature failure of your cooling unit (not covered by warranty).

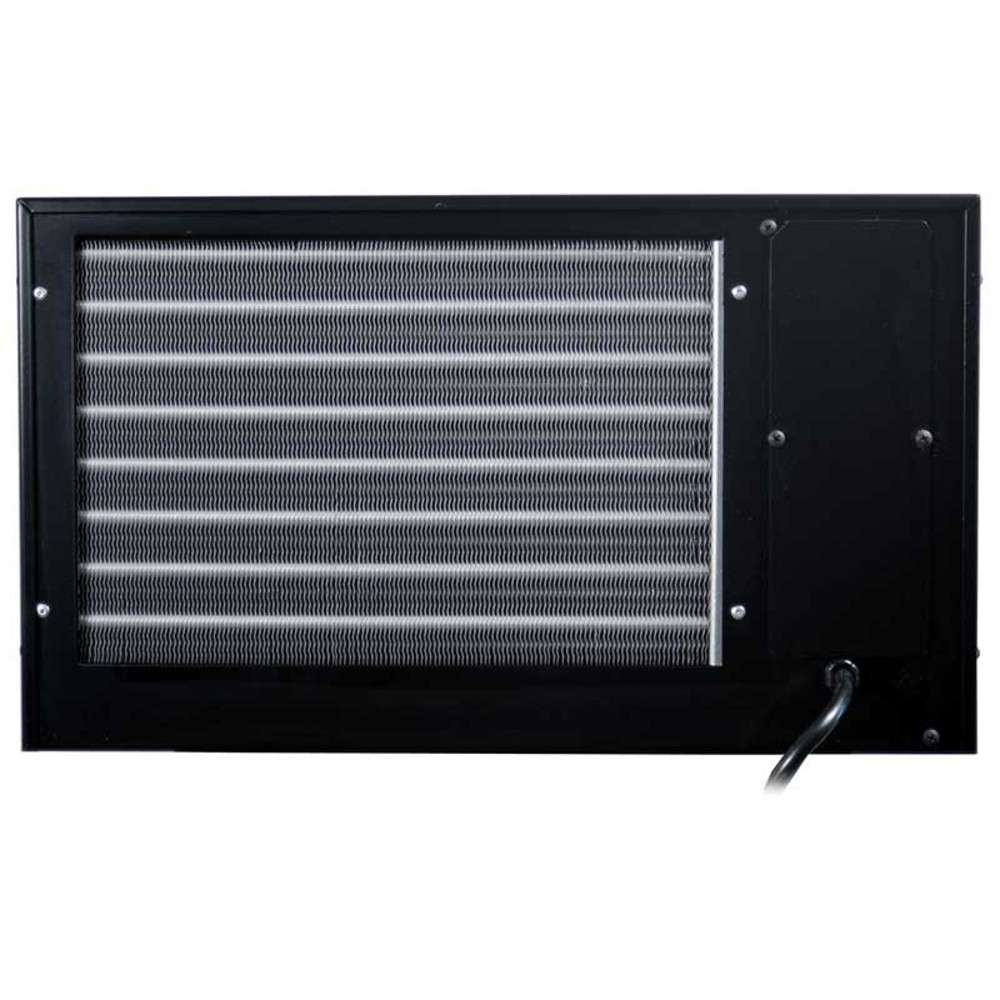

  • On the hot side, this unit intakes from the rear, and offers a choice of top or rear hot exhaust.

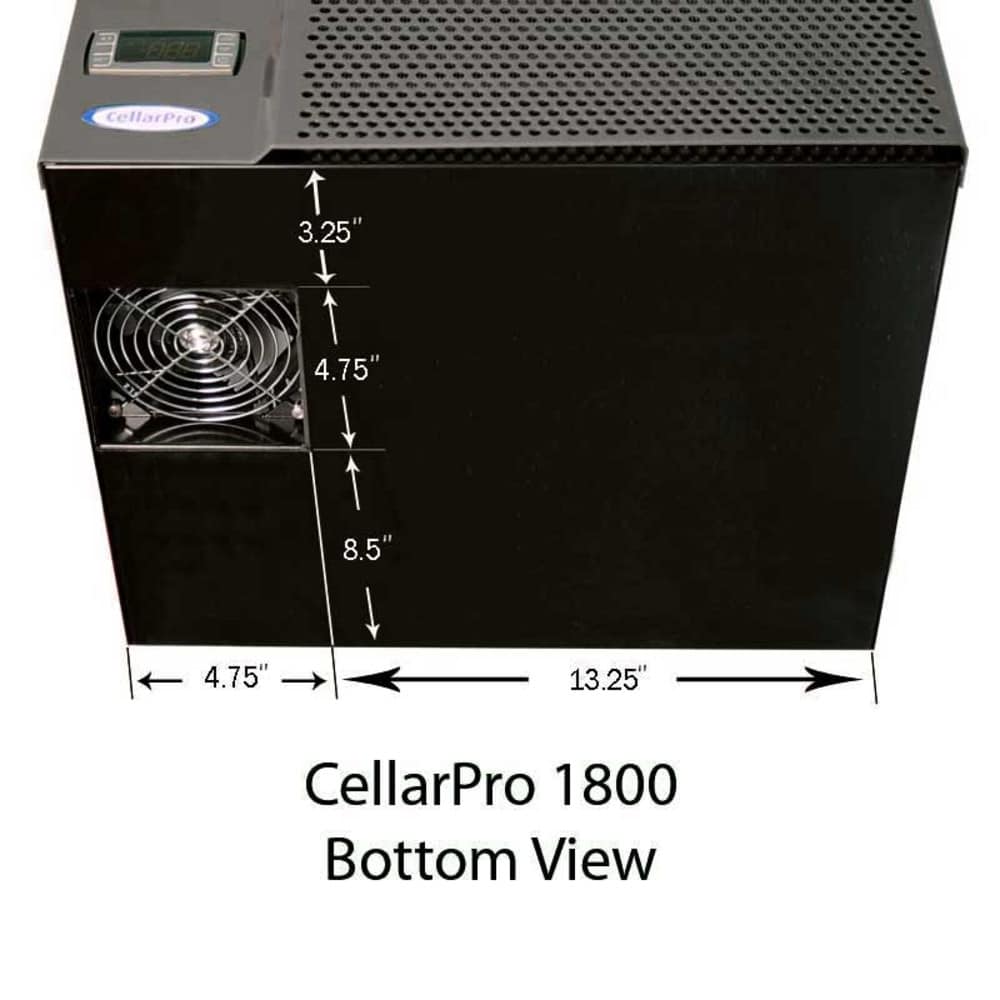

  • On the cold side, this unit intakes from the front and exhausts from the bottom. (thus the front 8 inches of the cooling unit must be inside the cellar.)
  • The 1800XTS-ECX-B requires fresh air intake at the rear of the cooling unit. If sufficient space does not exist to provide sufficient airflow to the rear of the cooling unit. You may need a rear duct kit.
  • 1800 Series cooling units can be installed completely inside the wine cellar when used with our rear duct kit.  Which allows you to duct the supply and return airflows from the rear of the cooling unit up to 100 equivalent feet. (50 feet per duct).
  • Please note: The cold side of the 1800 Series cooling units cannot be ducted. And the hot side can be ducted with 6-inch ducting (no reductions) plus auxiliary fan support. Which is included with our our rear duct kit.
  • You must located this unit within the cellar, with the following exception. These units can be installed directly above the wine cellar. When used with our front intake hood.
  • For installation in environments below 40F, our compressor heater modification is essential.
  • For installation in environments below 20F down to -20F. We recommend our Fan-Cycling Switch (P/N 6972) along with our compressor heater.
  • A CellarPro cooling unit must always be in the upright position, and should never be operated on its side or upside down.

All air-cooled refrigeration equipment requires fresh air intake to dissipate the heat generated by the cooling unit. The fresh air intake CANNOT come from the wine cellar space. It must come from space outside the cellar. Made for indoor use only, 1800XTS-ECX-B units can operate in environments ranging from 95F to 40F out of the box. To operate the unit in colder temperatures, please see modifications listed on the Options & Upgrades tab.

*Assuming R19 insulation throughout the cellar, 55F inside the cellar and 85F outside the cellar.

  • Now with energy-efficient EC Fans on both the cold and hot sides, save $39.02 in annual energy costs vs AC fans (assumes 75% runtime and $0.15/kWh)
  • This unit offers a choice of top or rear hot exhaust. If the unit’s location does not provide sufficient room for airflow, you may need to purchase a rear duct kit.
  • Adjustable humidity control combines a high-output compressor with flexible fan cycles. In order to maintain a essential level of moisture inside your cellar.
  • Extra-large coils generate maximum cooling power.
  • Commercial-grade Electrofin coating protects the evaporator coils from leaks and corrosion.
  • 100W Heating Element and 1/2-Inch ID Drain Line are included as standard equipment to burn off and channel excess condensation.

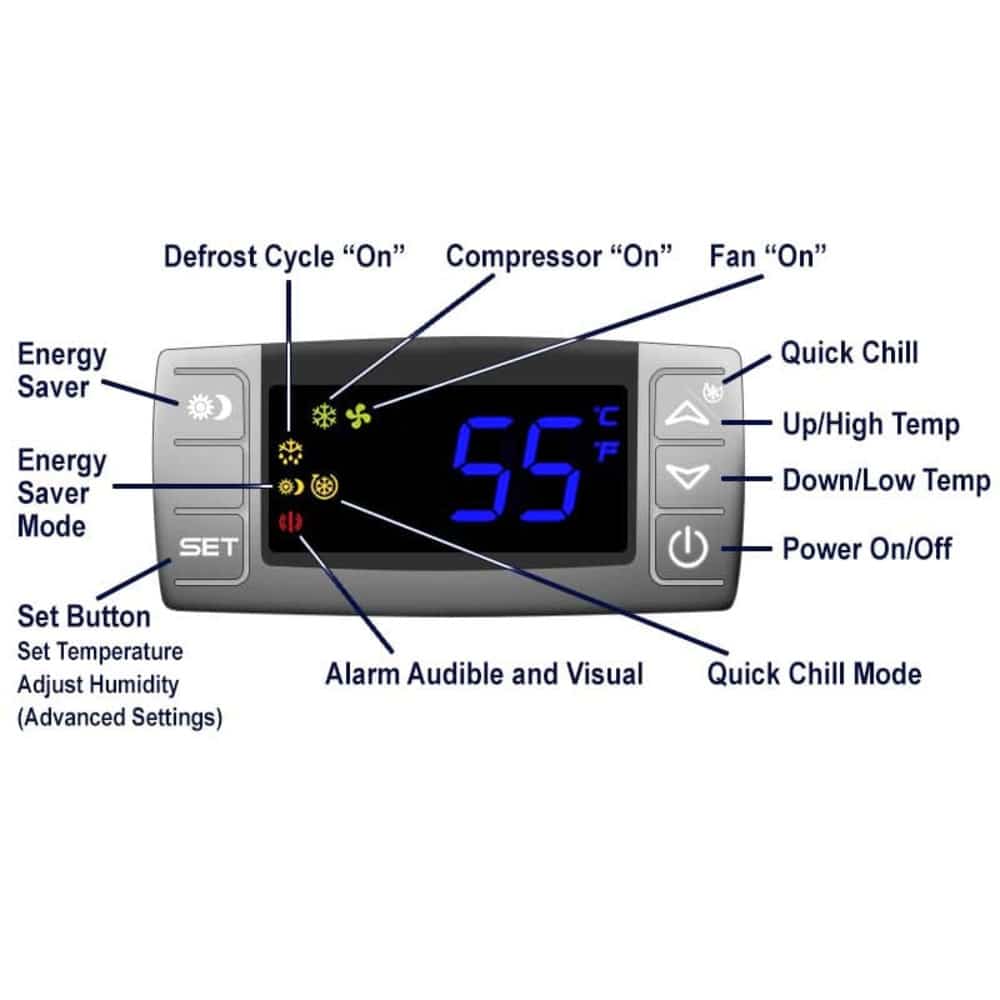

  • Intuitive LED display panel mounted on the evaporator with digital programmable thermostat. Which is simple and easy to use. Remote thermostat is available as an upgrade.
  • Energy-saver mode, quick-chill mode, and auto-defrost cycle provide convenient solutions to common cellar needs.
  • Temperature set point range is 40F to 62F when the cooling unit is properly sized.
  • Unit operates with minimal vibrations and less noise than comparable units from competitors.
  • Audible and visual alarms and maintenance-needed indicator protect the cooling unit and the wine cellar.
  • 10-foot power cord exits from the rear and plugs into standard 110V receptacles.
  • Common dedicated 15-amp circuit is required to power the unit.
  • 3-amp electric receptacle is provided to run a small lamp.
  • Removable steel case provides access to the internal components for servicing and repair.
  • CellarPro’s 2-Year Standard Warranty, the most thorough in the industry, protects the unit against manufacturing defects.
  • ETL Tested and Certified to rigorous UL Standards for safety.

1624 SENSIBLE BTUH @ 45F.
CellarPro 1800XTS-ECX-B Beer Cooling Unit (P/N 2176). CellarPro’s 1800XTS-ECX-B cooling unit has been optimized to provide maximum cooling power and adjustable humidity control for storing and aging beer collections.

The BTU/h value shown here is a theoretical number. There are often circumstances under which a cellar design may require a larger unit due to variables not accounted for in the formula. For example, these variables could be building materials (such as glass, stone, concrete, etc.)

Which do not offer the insulation capacity required to maintain the optimal cellar environment. We recommend purchasing a unit with a larger capacity to compensate for these unaccounted-for variables. An undersized unit can lead to premature failure and will most likely prevent the cellar from reaching your desired temperature.

Brand: CellarPro

UPC: 077757021763

Size: 18w x 16 1/2d x 10 1/2h (in)

Weight: 60 lbs

Power/Rating:
115V AC / 60 Hz
Compressor Amps:
– Running: 3.6 Amps
– Startup: 22.2 Amps
– Total Watts: 319
– Required: Dedicated 15-Amp Circuit
– Recommended: Surge Protector
Decibels: 48 dBA (Rear)

Capacity: 1592 BTUH @ 45F*

Warranty Resources
– Warranty Overview

WARNING - This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Cold Temperature

  • Compressor Heater #1727: protects the unit when installed in environments that drop below 40F down to 20F.
  • Fan Cycling Switch #6972: supports the unit in temperatures below 20F and as low as -20F when combined with our compressor heater.


Duct Hoods


Filters & Grills

  • Use our filter & grill guide to find the cooling unit filter or duct filter and/or duct grill that is appropriate for your cooling unit.


Remote Control & Probe

  • Remote Display #1603: lets you place the digital panel wherever you want, whether inside or outside the cellar. Includes 10 feet of wiring.
  • Bottle Probe #1434: this remote thermostat with a 10-foot cord overrides the thermostat on the face of the cooling unit, and allows it to monitor air or liquid temperatures at various locations inside the cellar.
  • Extension cords available in 25-foot (#1780) and 50-foot (#1781) lengths.


Other Options & Upgrades

  • Rear Condensate Drain Line plus Heating Element are included as standard equipment.
  • Power Cord Modification #1098: normally the cord exits from the rear of the cooling unit, which generally is outside the cellar; this modification moves the cord to the front of the cooling unit, so that it can be plugged into an outlet inside the cellar.
  • Mounting Clips #1095: attached to the front of CellarPro 1800 Series cooling units, these clips are designed to be bolted to the ceiling inside the wine cabinet / cellar.
