INSTALLATION OF WHISPERKOOL PLATINUM SPLIT TWIN

WhisperKOOL Platinum Split Twin Ducted Cooling System has more installation options than a self-contained system. The unit may be installed up to 25 ducted feet from the cellar, with the cool air flowing to the cellar and the heat exhaust ducted to the outside of the home. Ducting is also a more aesthetic choice for wine collectors who do not want to see a cooling unit in the cellar. Noise from the unit will be reduced or eliminated, depending on the installation.

DUCTED SPLIT SYSTEM

Described in the simplest terms, a WhisperKOOL Platinum Split Twinis Ducted Split System is a cooling unit wherein the evaporator unit and condensing unit have been “split” into two separate units instead of being contained within the same housing. The evaporator unit is located in or near your cellar, and the condensing unit is generally located outside or in an attic or utility room.

WhisperKOOL Platinum Split Twin Split System allows you to decide where the evaporator unit and the condensing unit will be located. The condensing unit can be located up to 100 ft. away from the evaporator unit. The evaporator unit will be mounted in the cellar or it can also be located nearby with ducting.

Note: A qualified HVAC-R technician is required for the installation of the WhisperKOOL Platinum Split Twin Ducted Split System. Failure to install the system by a qualified technician will void the warranty.

FEATURES OF WhisperKOOL PLATINUM SPLIT TWIN

• “Virtual Silence”
• Quiet and efficient operation
• Flare fittings for easy installation
• 2-speed fan switch to adjust BTU/h capacity
• Standard and 24V thermostat options available

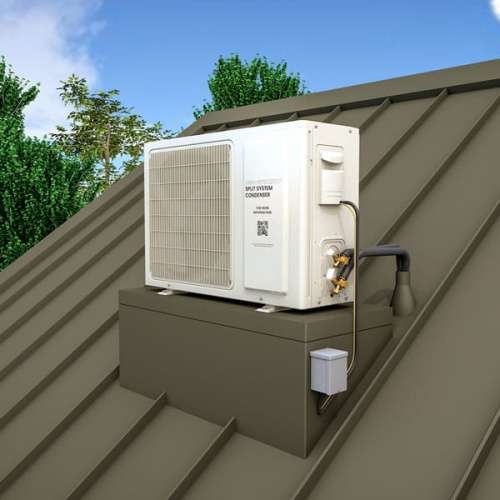

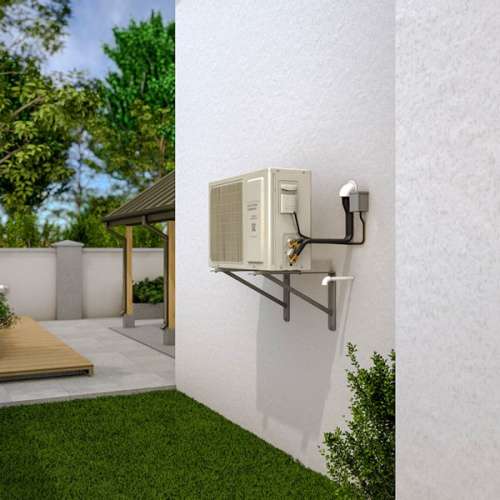

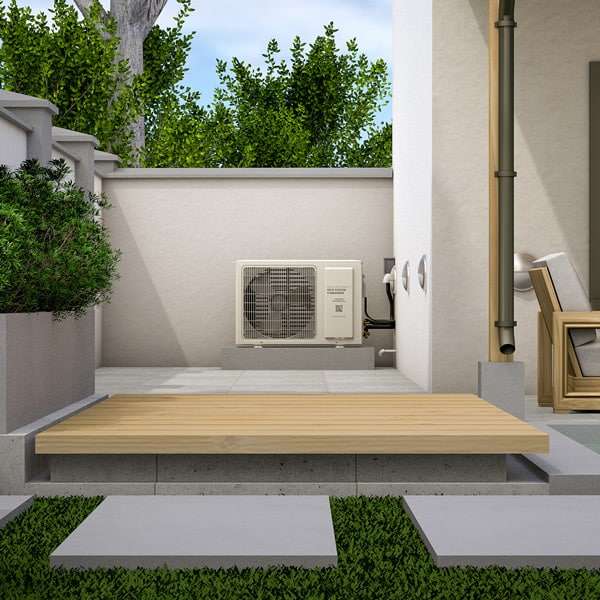

• Condensing unit can be placed outdoors with purchase of exterior housing
• Includes a pump system to remove access condensation
• 55°F temperature differential between cellar and condensing unit air intake temperature
• 220V High Efficiency (H.E.) Condenser Option.

FREE HEATLOAD CALCULATION

Not sure if the Platinum Split is suitable for your wine cellar? Call 800-323-3130.

THERMOSTAT AND BOTTLE PROBE

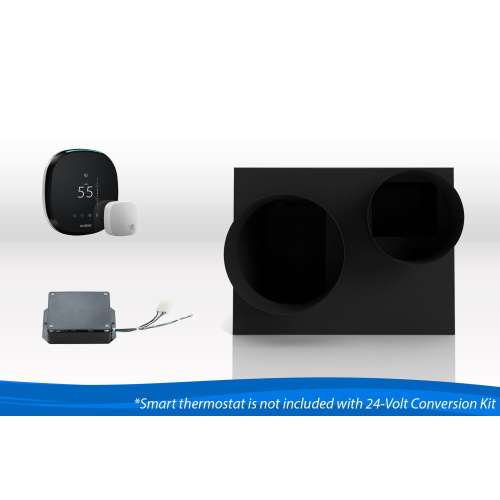

*PLEASE NOTE: WhisperKOOL does not provide a smart thermostat. By selecting the 24V Thermostat Conversion Kit, you have acknowledged that the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. To run the equipment, you will have to source and purchase your own 24V smart thermostat. The WhisperKOOL Customer Satisfaction Team does not provide technical support for smart thermostats.

BTU/H RATING

7850 – 7879

The BTU/h value range shown here is a theoretical number. There are often circumstances under which a cellar design may require a larger unit due to variables not accounted for in the formula. For example, these variables could be building materials (such as glass, stone, concrete, etc.) that do not offer the insulation capacity required to maintain the optimal cellar environment. We recommend purchasing a unit with a larger capacity to compensate for these unaccounted-for variables. An undersized unit can lead to premature failure and will most likely prevent the cellar from reaching your desired temperature.

SPECIFICATIONS

220V WhisperKOOL Platinum Split Twin

The Model is 9000
Cellar Size 3000 cu. ft.*
BTU/h (85°F condenser air intake temperature) Low: 7536 • Medium: 7850 • High: 8164
CFM 200 (per Unit)
Dimensions Evaporator: 16.1”L x 20.5”W x 15.5”H (x2) • Condenser: 24”L x 18.98”W x 16.16”H
Refrigerant R-134a
Voltage Rating Evaporator: 115V (15 amp dedicated circuit required) • Condenser: 230V (15 amp dedicated circuit required)
Weight (lbs) Evaporator: 57 (x2) • Condenser: 75
Amps Evaporator: 1 (running amps) • Condenser: LRA 50/RLA 9.3
Line Set Liquid Line 3/8” • Suction Line (Less than 50ft. 3/4”) (Greater than 50ft. 7/8”)
Duct Size 8” Supply (x2) • 10”Return (x2)
Drain Line ½” ID clear plastic tubing (not provided)
Installation Evaporator can be installed up to 25 duct feet away from the cellar. Condensing unit can be installed up to 100 line feet from the evaporator unit.
Thermostat Advanced digital display (50ft. cable), liquid-temperature-measuring bottle probe (50ft. cable)
Temp. Delta Can maintain a 55°F cellar temperature with up to 110°F condenser air intake temperature
Warranty Two-year limited warranty (parts and labor)
Options: Exterior condenser housing, 24V thermostat conversion kit, condenser coil coating

220V HE

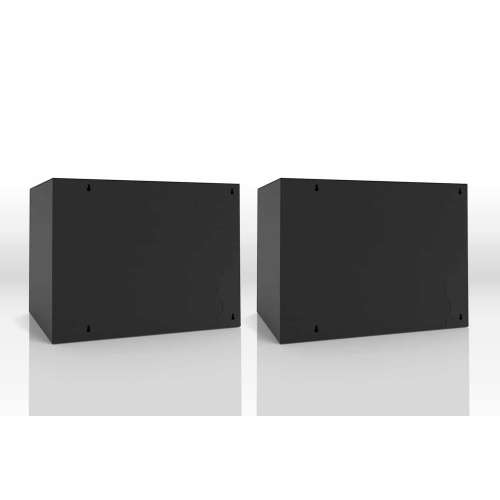

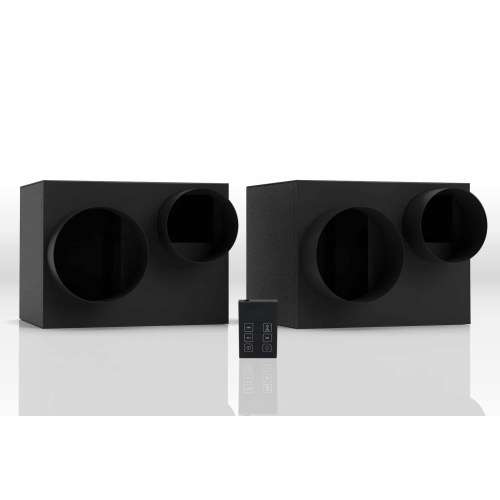

EVAPORATOR For WhisperKOOL Platinum Split Twin

Model = 9000
Fan Speed Low | Medium | High
BTU/h (60°F condenser air intake temperature) 7256 / 8208 | 8201 / 8810 | 8883 / 9417 Sensible / Total
BTU/h (75°F condenser air intake temperature) 7131 / 8061 | 7626 / 8326 | 8322 / 8636  Sensible / Total
BTU/h (85°F condenser air intake temperature) 6843 / 7845 | 7368 / 7959 | 7779 / 8054 Sensible / Total
dBA 52 | 56 | 62
Dimensions 16.1”L x 20.5”W x 15.5”H
Refrigerant R-134a
Voltage Rating 120V (15-amp dedicated circuit required)
Weight (lbs) 54
Amps Primary 2.48 (Running Amps) ; Secondary (2.2 Running Amps)
Drain Line 1/2″ ID clear plastic tubing (not provided)
Installation Evaporator unit is installed in the cellar.
Thermostat Advanced digital display (50-ft. cable), liquid-temperature-measuring bottle probe (retractable cable), 24V – customer supplied
Temp. Delta Can maintain a 55°F cellar temperature with up to 120°F condenser air intake temperature
Warranty Two-year limited warranty (parts and labor)

Condenser For WhisperKOOL Platinum Split Twin System

DBA 48
Dimensions 31.18″L x 10.75″W x 21.8″H
Condensing Unit HP 1.0 HP
Voltage Rating 220V (15-amp dedicated circuit required)
Weight (lbs) 64
Amps LRA 20, RLA 4.25, FLA 4.89
Line Set Liquid Line 3/8” OD • Suction Line (Less than 50ft. 5/8” OD) (Greater than 50ft. 3/4” OD)
Installation Condensing Unit can be installed up to 100 line feet from the evaporator unit
Temp. Delta Can maintain a 55°F cellar temperature with up to 120°F condenser air intake temperature
Warranty Two-year limited warranty (parts and labor)
