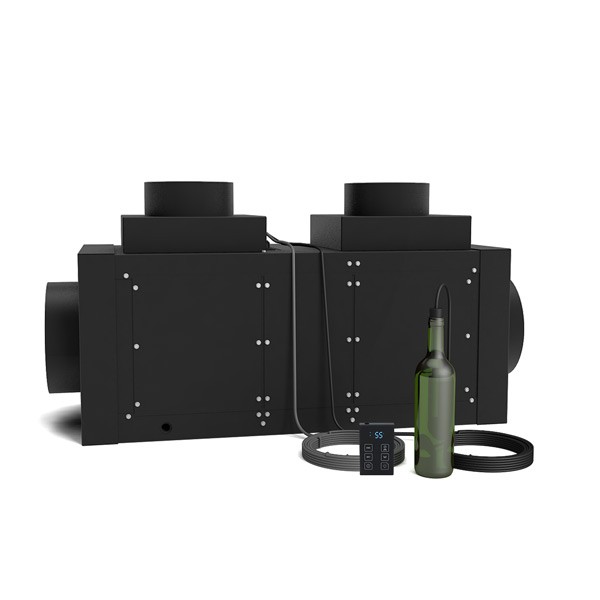

Fully Ducted Phantom 3500
800 Cubic Feet
- Proven cooling performance
- Liquid-temperature-measuring bottle probe
- Quiet operation
- Optional UV Light Air Purification System
- Numerous ducting options
- Remote KDT Plus controller/thermostat
- Quick-to-access components for ease of maintenance
- Corrosion-resistant drip tray
- Black powder-coated paint scheme
- Suitable for operation in ambient temperatures as high as 110°F
The Phantom 3500 combines powerful cooling capacity with flexible installation options. If space is at a premium in your cellar and you need a powerful, fully ducted unit, the Phantom might be for you. The Phantom’s powerful blowers can be reoriented to the right, left, or top of the unit. This grants you the option of installing the unit in any ducting configuration that best suits your needs, even in a limited space. An available UV light upgrade protects your unit from mold and other microorganisms.
This self-contained ducted unit combines the capacity and flexible installation options with a completely customizable blower configuration. By simply removing the exterior metal panels, the Phantom’s powerful blowers can be reoriented to the right, left, or top of the unit. This grants the customer the option of installing the unit in any ducting configuration they desire. The Phantom’s fully ducted configuration has another advantage: low noise levels in the wine cellar.
The unit is intended to be installed in an attic or a utility room adjacent to the cellar. This system uses WhisperKOOL’s liquid-temperature-measuring bottle probe. By monitoring liquid temperature instead of air temperature, the bottle probe ensures that your wine cellar maintains optimal wine-aging conditions. This system can be ordered with our 24-volt thermostat conversion kit. The Phantom combines sleek, modern design with quietness, customizable installation options, and proven performance.
WhisperKOOL does not provide a smart thermostat. By selecting the 24V Thermostat Conversion Kit, you have acknowledged that the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. You will have to source and purchase your own 24V smart thermostat to run the equipment. The WhisperKOOL Customer Satisfaction Team does not provide technical support for smart thermostats
One of the main things we like to focus on at Cool Wine Cellar is creating fascinating custom wine cellars that go beyond simple wine racks. Stunning wine cellar doors, custom wine cellar lighting, and beautiful wood shelves are just some of the great items that allow us to create a space for you to store, display, and above all, enjoy your wine collection with family and friends. Traditional wood wine cellars, glass and steel wine cellars, contemporary wine cellars, tasting centers, and custom wine cellar cabinetry are some of the fantastic options we can provide to our clients.
The BTU/h value shown here is a theoretical number. There are often circumstances under which a cellar design may require a larger unit due to variables not accounted for in the formula. For example, these variables could be building materials (such as glass, stone, concrete, etc.) that do not offer the insulation capacity required to maintain the optimal cellar environment. We recommend purchasing a unit with a larger capacity to compensate for these unaccounted-for variables. An undersized unit can lead to premature failure and will most likely prevent the cellar from reaching your desired temperature.
312 with blowers in side orientation
115V (20-amp dedicated circuit required)
10” Return • 8” Supply (evaporator & condenser)
1/2″ ID clear plastic tubing
Unit is installed in an attic or utility room. Max. duct length is 50 combined feet for evap and condenser sides (25-ft. supply and 25-ft. return) with a maximum of three bends per side.
55°F temperature differential between cellar environment and condensing unit intake air.
Remote digital display with 50-ft. cable and 50-ft. liquid-temperature-measuring bottle probe
Two-year limited warranty (parts and labor)
