$5,387.00

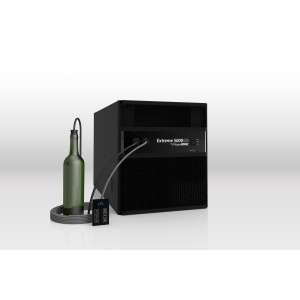

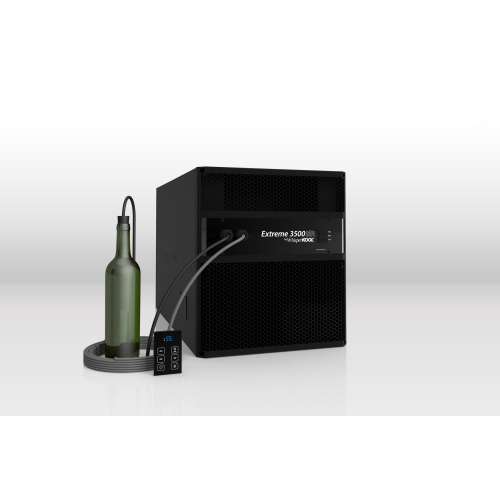

WhisperKOOL Extreme 3500tiR – Self Contained

WhisperKOOL Extreme 3500tiR Self-Contained Cooling Unit is intended for through-the-wall installations. It is an “upgrade” to the Extreme tiR because it uses the KDT Plus remote controller and thermostat

Description

INSTALLATION OF WhisperKOOL EXTREME 3500tiR:

WhisperKOOL Extreme 3500tiR Self-Contained Cooling Unit is intended for through-the-wall installations. It is an “upgrade” to the Extreme tiR because it uses the KDT Plus remote controller and thermostat. The duct plenums for the evaporator and condenser can be purchased separately. The controller can be mounted outside the cellar, allowing you to monitor your cellar temperature without needing to enter. The controller can be mounted up to 50 feet away from the Extreme unit.

SYSTEM FEATURES OF WhisperKOOL EXTREME 3500tiR:

  • Selectable 3-speed fans
  • Reliable starting and running performance, even under the most extreme outdoor conditions
  • Fits neatly between wall studs for quick and simple installation
  • Advanced electronic display
  • Liquid bottle probe
  • Superior Humidity control allows the system to manage moisture for improved wine quality
  • Two-year parts and labor warranty
  • Maintains 55 degrees and 50-70% humidity in cellars up to 800 cubic ft.
  • Designed to blend seamlessly within cellar racking
  • Oversized coils
  • Quiet operation technology delivers sound levels as low as 51 db.
  • Durable finish

THERMOSTAT AND BOTTLE PROBE –

WhiserKOOL does not provide a smart thermostat upon purchase of your WhisperKOOL Extreme 3500tiR Self-Contained Cooling Unit. By selecting the 24V Thermostat Conversion Kit, you have acknowledged that the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. You will have to source and purchase your own 24V smart thermostat to run the equipment. The WhisperKOOL Customer Satisfaction Team does not provide technical support for smart thermostats.

DUCTING AND GRILLES

The WhisperKOOL Extreme 3500tiR Self-Contained Cooling Unit, Extreme Ducting Plenum allows either side of the unit to be ducted. Duct the cold air through a vent into the cellar, and duct the hot exhaust air out of the home. This plenum allows for total installation flexibility.  The Exterior Grille protects the exhaust side of the system from the weather elements when installed through an exterior wall.

WINE CELLAR DESIGNS

One of the main things we like to focus on at Cool Wine Cellar is creating fascinating custom wine cellars that go beyond simple wine racks.
Stunning wine cellar doors, custom wine cellar lighting, and beautiful wood shelves are just some of the great items that allow us to create a space for you to store, display, and above all, enjoy your wine collection with family and friends. Traditional wood wine cellars, glass and steel wine cellars, contemporary wine cellars, tasting centers, and custom wine cellar cabinetry are some of the fantastic options we can provide to our clients.

BTU/H RATING

3175

The BTU/h value shown here is a theoretical number. There are often circumstances under which a cellar design may require a larger unit due to variables not accounted for in the formula. For example, these variables could be building materials (such as glass, stone, concrete, etc.) that do not offer the insulation capacity required to maintain the optimal cellar environment. We recommend purchasing a unit with a larger capacity to compensate for these unaccounted-for variables. An undersized unit can lead to premature failure and will most likely prevent the cellar from reaching your desired temperature.

Specifications

Cellar Size:

Approx. 800 cu. ft. when the cellar is fully insulated and sealed with a proper vapor barrier (each wine cellar is unique and has specific cooling requirements; heat load calculations should always be performed prior to selecting a cooling unit)
BTU/h w/85°F air entering condenser coil:
3175
Dimensions:
28”L x 14.25”W x 15.75”H
Refrigerant:
R-134a
HP:
1.25
Voltage Rating:
115V (20-amp dedicated circuit required); 230V (subject to availability)
Weight:
115 lbs
Amps:
9 (running amps)
Drain Line:
1/2″ ID clear plastic tubing
Installation:
Through-the-wall, partially ducted
Thermostat:
Advanced digital controller, liquid-temperature-measuring bottle probe (retractable cable)
Temp. Delta:
Can maintain a 55°F cellar temperature with up to 85°F condenser air intake temperature
Outside Venting:
Can be done if the outside temperature does not exceed 110°F, the external grille cover is highly
recommended
Ducting Options:
Condensing side can be ducted
Warranty:
Two-year limited warranty (parts and labor) / Five-year limited warranty (compressor)

Manual / Warranty

Owner’s Manual Owner’s Manual – 24V Thermostat Version
Extreme tiR Product Sheet
Self Contained Warranty Information





Additional information

Brand

WhisperKOOL

SPECS

Specifications Cellar Size: 800 Cubic Feet dBA: Condenser side: High: 62 Decibels Med: 56 Decibels Low: 51 Decibels dBA: Evaporator side: High: 61 Decibels Med: 57 Decibels Low: 51 Decibels Dimensions: 14.25" W x 15.75" H x 28" D Weight: 115lbs. AMPS (starting/running): 32/9 Installation: Through-the-Wall, Partially Ducted, Fully Ducted Temp. Delta: 55°F temperature differential Thermostat: Digital Control Display Outside Venting: Can be done if the outside temperature does not exceed 110°F, the external grille cover is highly recommended. Warranty Information: A limited 2-year parts and labor / 5-year compressor warranty

Exterior Grille

The Exterior Grille protects the exhaust side of the system from the weather elements when installed through an exterior wall (Condenser Ducting Plenum cannot be combined with Exterior Grille).
