PRO SP50 – 1/2 Ton
Wine Guardian Split System Cooling Unit

  • High and low ambient temp protection
  • Electric heater option
  • 24 Volt – Compatible with Smart Thermostats
  • 5 Year Compressor Warranty
  • Made in the USA

Call today for Pricing that is too low to publish!

Options:

  • Electric Heat Option: Protects wine cellar from low-temperature conditions.
  • Water-cooled Configuration
SKU: 99H0205-00 Categories: ,

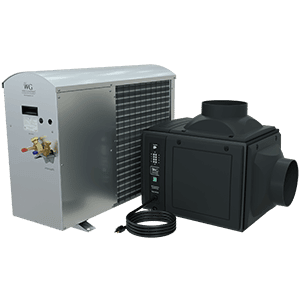

The SP50 Pro specialty cooling system unit for small to midsize residential and commercial specialty storage rooms such as wine cellars or art and document preservation is a perfectly-paired condensing unit and evaporator section that comes standard with features such as electric heat, X-treme low ambient protection, and high ambient protection. This wine cooling system has a max capacity of 5,770 BTU/H. The SP50 is compatible with modern smart thermostats and features enhanced refrigeration controls.

Wine Guardian Pro ducted units are the most versatile specialty cooling systems on the market. Applications include wine cellars, art or document preservation, instrument or fur storage, computer closets, niche environments, and more; these units can be used in nearly any application.

  • 3,760-15,680 BTU/H capacity
  • 24-volt electronics for use with today’s smart thermostats and building management systems
  • High- and low-pressure safety switches
  • Refrigerant sight glass, filter drier, and access ports
  • Duct collar connections
  • Low ambient protection
  • High ambient protection (on limited models)
  • 5-year compressor warranty

Versatility

  • Utility piping in one easily accessible location
  • Multiple evaporator and condenser outlet locations (Any of three sides)
  • Easily mountable in floor, ceiling, or wall applications
  • Duct collars on supply & return and intake & exhaust

Quality

  • Aluminum body and all-aluminum evaporator coils (fins & tubes) are corrosion-resistant
  • Standard high static pressure fan for extended lengths of ductwork
  • Completely serviceable in the field

Options:

  • Bolt-on humidifier
  • Electric heat
  • Water-cooled or air-cooled

Condenser

  • Height: 26 in
  • Width: 34 in
  • Depth: 12 in body / 16 in base
  • Weight: 75 lbs
  • Capacity: 6,300 BTUH
  • Electrical Requirements: 115 Hz

Evaporator

  • Height: 14.25 in
  • Width: 16.75 in
  • Depth: 22 in
  • Weight: 35 lbs
