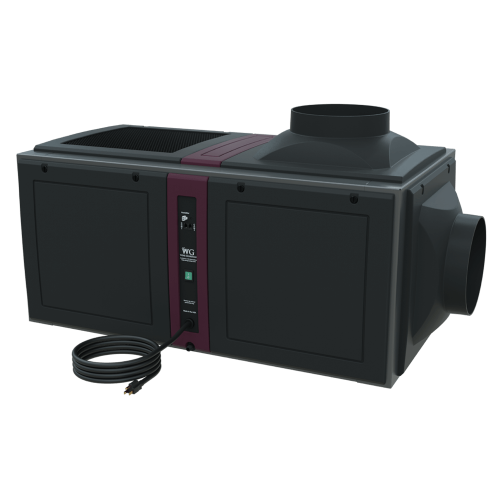

PRO DP88 – 1 TON DUCTED UNIT
Wine Guardian Cooling Unit
Up to 3,000 Cubic Feet

  • High and low ambient temp protection
  • Electric heater option
  • 24 Volt – Compatible with Smart Thermostats
  • 5 Year Compressor Warranty
  • Made in the USA

Call today for Pricing that is too low to publish!

Options:

  • Electric Heat Option: Protects wine cellar from low-temperature conditions.
  • Water-cooled Configuration
SKU: 99H0202-00 Categories: ,

Wine Guardian cooling systems are engineered for maximum versatility, efficiency, and ease of use when it comes to storing and aging wine. From distributors to refrigeration wholesalers to HVAC installation professionals, the Wine Guardian Pro series makes installation, customization, and maintenance of our solutions—for commercial or larger residential applications—seamless. Once the units are in place, the process of getting the systems up and running has been engineered with ease in mind.

Installation

The Wine Guardian Pro series has a number of features that facilitate a straightforward installation. First, the multi-panel design makes it possible to custom configure the setup for a particular application through up to three ductwork connections. The easy plug-and-play design with a power cord standard in all units. Moreover, the primary power, controls, drain, and water connections are centralized for an efficient utility connection in all Wine Guardian Pro Ducted systems.

Customization

Wine Guardian Pro units utilize 24-volt electronics and are Wi-Fi compatible. These features allow for simple integration with today’s smart homes or commercial building management systems. Additionally, while our standard units can be customized at the time of ordering with high- or low-ambient protection, the Pro series comes with these options built right in. An integral electric heater is another way the Pro series can be customized depending on where a client is storing their wine or valuables. In addition, the Pro series is robust enough to accommodate the retrofitting of a humidifier should a customers’ needs change after purchase.

All-Inclusive

  • 24-volt electronics for integration with today’s smart thermostats and building management systems
  • High- and low-pressure safety switches
  • Refrigerant sight glass, filter drier, and access ports
  • Duct collar connections
  • Low ambient protection
  • High ambient protection (on limited models)
  • 5-year compressor warranty

 Flexible

  • Utility piping in one easily accessible location
  • Multiple evaporator and condenser outlet locations (Any of three sides)
  • Easily mountable in floor, ceiling, or wall applications
  • Duct collars on supply & return and intake & exhaust

Durable

  • Aluminum body and all-aluminum evaporator coils (fins & tubes) are corrosion-resistant
  • Standard high static pressure fan for extended lengths of ductwork
  • Completely serviceable in the field

Unique Options

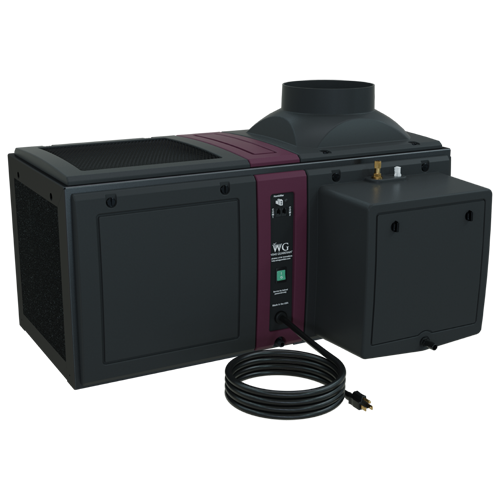

  • Bolt-on humidifier
  • Electric heat
  • Water-cooled or air-cooled
Cooling

Air-cooled, Water-cooled

btu

5000 – 8640 BTU/h

kilowatts

1.45 – 2.53 Kilowatts

SPECIFICATIONS
Width: 33″
Height: 14″
Depth: 22″
Weight: 130lbs
Room Capacity: Up to 3000 cu. ft.
BTU: 7800
Electrical: 230v/1ph/60hz
