Wine Guardian CS050 Wine Wall Ceiling System

$7,600.00

BTU/H: 1000 – 3645 BTU/h
Dimensions: Length: 44.19″ , Width: 12.44″ , Height: 11.43″
Designed specifically for narrow glass wine cellars.

SKU 99H0409-20 Categories Ceiling Mounted, Ductless, Split System, Wine Guardian Tags 220V, Ceiling Mounted, Ceiling Mounted Split, Ductless, Extreme Low Ambient, Split System, Wine Guardian, Wine Refrigeration

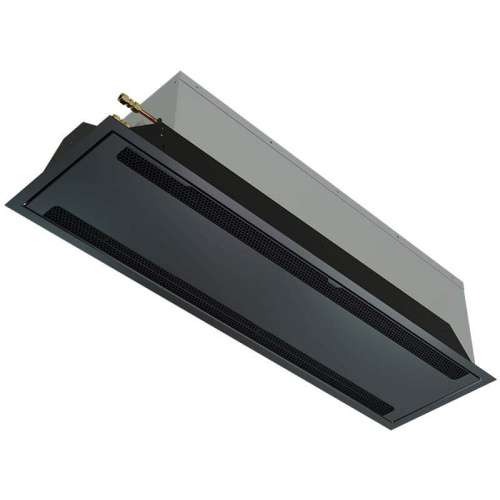

We are excited to introduce the new Wine Guardian CS050 Wall Wine System. A Wine Wall Ceiling System! Our new version of the Wine Guardian CS050, a ductless split system has a 10.25″ wide and 42″ long profile.

That can be mounted completely flush and blend in seamlessly into most wine room ceilings. The 10.25″ wide thin-set design also makes it ideal for wine walls, small wine rooms, and cabinet applications. Airflow is directed by supply and return slot diffusers along the length of the grille and the assembly is offered in a powder-coated black finish which can easily be painted on-site to match the ceiling décor.

Request a free thermal load calculation to verify the correct sized unit for your cellar.

Paintable grille to match the decor in your wine cellar
Certified to Underwriters Laboratory standards
Split condensing unit keeps the cellar quieter
Recycles warm stale air near the ceiling.
Easy to install in between ceiling studs
Specialized fans create ideal airflow
Extremely quiet operation
Controls temperature
Ductless split system has a 10.25″ wide and 42″ long profile

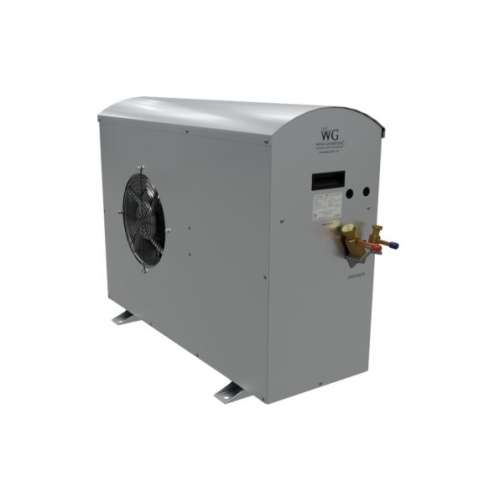

Outdoor enclosure included
Made in the USA

BTU/H RATING

1000-3645

The BTU/h value shown here is a theoretical number. There are often circumstances under which a cellar design may require a larger unit due to variables not accounted for in the formula. For example, these variables could be building materials (such as glass, stone, concrete, etc.)

Which do not offer the insulation capacity required to maintain the optimal cellar environment. We recommend purchasing a unit with a larger capacity to compensate for these unaccounted-for variables. An undersized unit can lead to premature failure and will most likely prevent the cellar from reaching your desired temperature.

Model	CS050 (Wine Wall)
Capacity	4050 BTU
BTU Max	3645
BTU min	1000
Volume	250 – 2200 ft³
Volume max	2200
Volume min	250
Length	44.19″ (evaporator) 34″ (condenser)
Width	12.44″ (evaporator) 12.3″ (condenser)
Electrical	115/1/60 208-230/1/60 (condenser)
Where to Buy	Distributor
Line Frequency	60 Hz
Height	11.43″ (evaporator) 26″ (condenser)
Weight	43 lbs 75 lbs (condenser)
Ductless/Ducted	Ductless

XTREME LOW AMBIENT PROTECTION

This cold weather protection package allows the SS018 condensing unit to operate in conditions down to -20°F (-29°C) and is recommended in climates where the temperature normally drops to 20°F (-7°C).

FREESTANDING HUMIDIFICATION

Wine Guardian® humidifiers are uniquely designed to deliver superior performance and reliability, ensuring the proper conditions for your wine collection and cellar. Our humidifiers regulate and control humidity while offering the versatility to be used with any brand of wine cooling system.

Standard Options For Wine Guardian CSO50 Ceiling

LOW AMBIENT PROTECTION

Protects the system from cold temperatures below 5°C (40°F).

SERVING TEMPERATURE

Allows the system to control to an extended temperature range from 42°F to 64°F (5°C to 18°C). This option is ideal for single to multiple cabinet applications and small wine rooms where consumption-temperature cooling is preferred. It also allows the user to rotate wine stock and change set point from season to season, making it ideal for restaurants, wine bars, clubs, etc.

AVAILABLE OPTIONS FOR WINE GUARDIAN CSO50 CEILING

EXTREME CLIMATE PROTECTION BUNDLE

For Self-Contained Ducted systems: Contains an integral compressor crankcase heater and controls to protect the the system against low temperatures (required when intel air to the condenser coil is below 40°F/5°C). The bundle also contains an integral high capacity condenser fan and coil for operation at elevated ambient temperatures. This bundle be considered when inlet air to the condenser coil is above 100°F/38°C (condenser air inlet cannot exceed 120°F/49°C).

For Ducted Split systems: Unit protection in extreme climate conditions (on the condenser section only). It is required for continuous operation in climates that fall below 20°F. Enables the system to operate in temperatures as low as -20°F.

FREESTANDING HUMIDIFIER

The Freestanding Humidifier is installed inside your wine space to provide optimal humidity for perfect long-term wine storage. The Humidifier can be controlled by your existing Wine Guardian controller.
