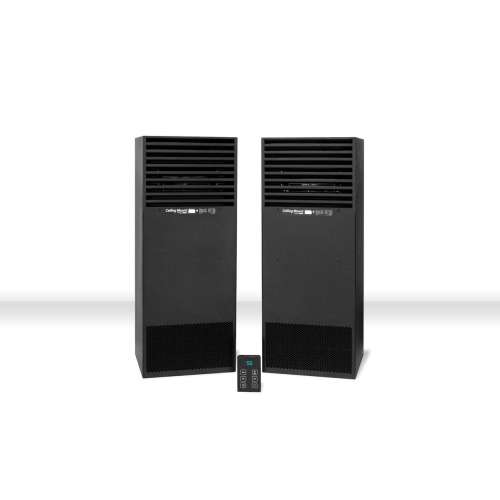

WhisperKOOL Ceiling Mount Twin Split 12000

$12,154.00

WhisperKOOL Ceiling Mount Twin Split 12000 offers excellent efficiency by drawing in the warmer air which accumulates at the ceiling, cooling and dispersing the air throughout the environment. WhisperKOOL Ceiling Mount Twin Split 12000 is virtually invisible inside the cellar.

Ships in 2-3 Weeks

SKU S-WKCM12000-220 Categories , , Tags , , , , , ,

WhisperKool Ductless Wine Cellar Cooling Units offers excellent efficiency by drawing in the warmer air which accumulates at the ceiling, cooling and dispersing the air throughout the environment. WhisperKOOL Ductless Wine Cellar Cooling Units are virtually invisible inside the cellar.

At WhisperKOOL, we have created a WhisperKOOL Ductless Wine Cellar Cooling Units with dual evaporators for larger capacities. Keep your wine at the center of attention and your cooling unit out of sight.

  • Flare fittings for easy installation
  • Duramax coils
  • Standard and 24V thermostat options are available
  • 2-speed fan switch
  • Hex mesh grille with air filter
  • KDT Digital Controller/Thermostat with 50-ft. cable
  • Standard and 24V thermostat options are available
  • Allows for maximum racking space
  • No ducting required
  • 220V High Efficiency (H.E.) Condenser Option

At WhisperKOOL, we have created a WhisperKOOL Ductless Wine Cellar Cooling Units with dual evaporators for larger capacities. Keep your wine at the center of attention and your cooling unit out of sight.

Installation Details Of Ceiling Mount Twin Split

Technicians and installers will be happy to hear that the electrical wiring, bottle probe wiring, and line set are all located at the bottom of the unit, rather than the top. Not only are the essential components relocated and easier to access, but flare fittings will also now be utilized so that there is no brazing needed in the field. The redesign includes e-coated Duramax evaporator coils which will improve system performance, and a new-looking hex mesh grille with an air filter to protect the unit from the intake of potentially harmful debris during the initial start-up.

Note: A qualified HVAC-R technician is required for the installation of your Twin Ceiling Mount. Failure to install the system by a qualified technician will void the warranty.

THERMOSTAT & BOTTLE PROBE

*PLEASE NOTE: WhisperKOOL does not provide smart thermostat. By selecting the 24V Thermostat Conversion Kit, you have acknowledged that the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. To run the equipment, you will have to source and purchase your own 24V smart thermostat. The WhisperKOOL Customer Satisfaction Team does not provide technical support for smart thermostats.

BTU/H RATING

11,306 – 13,692

The BTU/h value shown here is a theoretical number. There are often circumstances under which a cellar design may require a larger unit due to variables not accounted for in the formula. For example, these variables could be building materials (such as glass, stone, concrete, etc.) which do not offer the insulation capacity required to maintain the optimal cellar environment. We recommend purchasing a unit with a larger capacity to compensate for these unaccounted-for variables. An undersized unit can lead to premature failure and will most likely prevent the cellar from reaching your desired temperature.

EVAPORATOR For WhisperKOOL Ceiling Mount Twin Split 12000

Model Twin 12000
Cellar Size  3500 cu. ft *
Fan  Medium | High
BTU/h (60°F condenser air intake temperature) Sensible / Total  8951 / 9948 | 9292 / 10604
BTU/h (75°F condenser air intake temperature) Sensible / Total 8796 / 9707 | 8952 / 9992
BTU/h (85°F condenser air intake temperature) Sensible / Total  8561 / | 9079 8631 / 9183
dBA 48 | 53
Dimensions 35.75”L x 14.5”W x 12.75”H
Refrigerant R-134a
Voltage Rating 120V (15-amp dedicated circuit required)
Weight (lbs) 66
Amps Primary 1.74 (Running Amps);Secondary 1.04 (Running Amps)
Drain Line 1/4″ ID clear plastic tubing (not provided) – Rigid tube recommended
Installation Evaporator unit is installed in the cellar. Condensing unit can be installed up to 100 line feet from the evaporator unit.
Thermostat Advanced digital display (50-ft. cable), liquid-temperature-measuring bottle probe (50-ft. cable), 24V – customer supplied
Temp. Delta Can maintain a 55°F cellar temperature with up to 120°F condenser air intake temperature
Warranty Two-year limited warranty (parts and labor)

CONDENSER For Ceiling Mount Twin Split

Model 12000
dBA 52
Dimensions  31.18″L x 10.75″W x 23.25″H
Condensing Unit HP 1.5HP
Voltage Rating 220V (15-amp dedicated circuit required)
Weight (lbs) 84
Amps LRA 23.6, RLA 5.76, FLA 6.6
Line Set Liquid Line 3/8″ OD; Suction Line 5/8″ OD (less than 50 ft.), 3/4″ (greater than 50 ft.)
Installation Evaporator unit is installed in the cellar. The condensing unit is installed up to 100 line feet from the evaporator unit.
Temp. Delta Can maintain a 55°F cellar temperature with up to 120°F condenser air intake temperature.
Warranty Two-year limited warranty (parts and labor)

OWNER’S MANUAL 110V
OWNER’S MANUAL 24V
OWNER’S MANUAL 220V
OWNER’S MANUAL ADDENDUM
PRODUCT SHEET  220V
PRODUCT SHEET 220V HIGH EFFICIENCY
