WhisperKOOL
Ceiling Mount Twin Split 9000
Ductless (220V Condenser)

$10,359.00

Free Shipping

Exterior Enclosure for 220V unit only / 220V HE unit includes Enclosure

$0.00
$0.00
  • Options Price: $0.00
  • Product Price: $10,359.00
  • Total: $0.00
SKU: S-WKCM9000-220 Category:

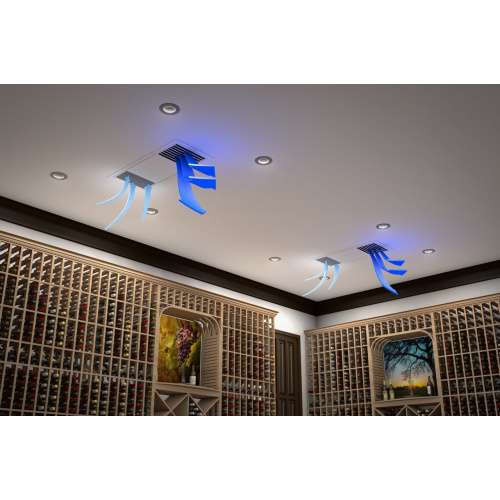

  • Offers excellent efficiency by drawing in the warmer air which accumulates at the ceiling, cooling and dispersing the air throughout the environment

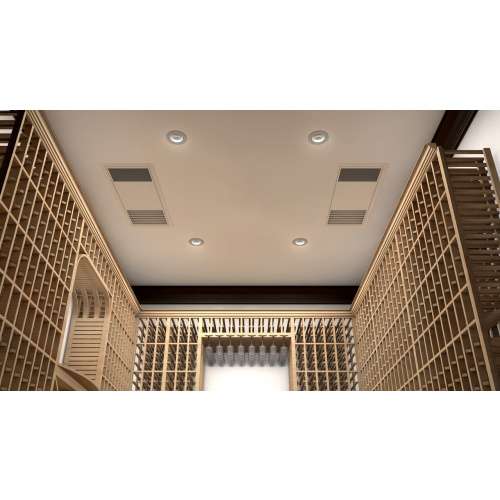

  • Virtually invisible inside the cellar
  • Flare fittings for easy installation
  • Duramax coils
  • Standard and 24V thermostat options are available
  • 2-speed fan switch
  • Hex mesh grille with air filter
  • KDT Digital Controller/Thermostat with 50-ft. cable
  • Standard and 24V thermostat options are available
  • Allows for maximum racking space
  • No ducting required
  • 220V High Efficiency (H.E.) Condenser Option

At WhisperKOOL, we have created a Twin Ceiling Mount 9000 split system with dual evaporators for larger capacities. Keep your wine at the center of attention and your cooling unit out of sight.

Technicians and installers will be happy to hear that the electrical wiring, bottle probe wiring, and the line set are all located at the bottom of the unit, rather than the top. Not only are the essential components relocated and easier to access, but flare fittings will also now be utilized so that there is no brazing needed in the field. The redesign includes e-coated Duramax evaporator coils which will improve system performance, and a new-looking hex mesh grille with an air filter to protect the unit from the intake of potentially harmful debris during the initial start-up.

Note: A qualified HVAC-R technician is required for the installation of your Twin Ceiling Mount. Failure to install the system by a qualified technician will void the warranty.

*PLEASE NOTE: WhisperKOOL does not provide smart thermostat. By selecting the 24V Thermostat Conversion Kit, you have acknowledged that the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. To run the equipment, you will have to source and purchase your own 24V smart thermostat. The WhisperKOOL Customer Satisfaction Team does not provide technical support for smart thermostats.

  •

8500 – 10064

The BTU/h value shown here is a theoretical number. There are often circumstances under which a cellar design may require a larger unit due to variables not accounted for in the formula. For example, these variables could be building materials (such as glass, stone, concrete, etc.) which do not offer the insulation capacity required to maintain the optimal cellar environment. We recommend purchasing a unit with a larger capacity to compensate for these unaccounted-for variables. An undersized unit can lead to premature failure and will most likely prevent the cellar from reaching your desired temperature.

EVAPORATOR
Model Twin 9000
Cellar Size 3000 cu. ft *
Fan Speed Medium | High
BTU/h (60°F condenser air intake temperature) Sensible / Total  8951 / 9948 | 9292 / 10604
BTU/h (75°F condenser airintake temperature) Sensible / Total  8796 / 9707 | 8952 / 9992
BTU/h (85°F condenser air intake temperature) Sensible / Total  8561 / 9079 | 8631 / 9183
dBA 48 | 53
Dimensions 35.75”L x 14.5”W x 12.75”H
Refrigerant R-134a
Voltage Rating 120V (15-amp dedicated circuit required)
Weight (lbs) 66
Amps Primary 1.74 (Running Amps);
Secondary 1.04 (Running Amps)
Drain Line 1/4″ ID clear plastic tubing (not provided) – Rigid tube recommended
Installation Evaporator unit is installed in the cellar. Condensing unit can be installed up to 100 line feet from the evaporator unit.
Thermostat Advanced digital display (50-ft. cable), liquid-temperature-measuring bottle probe (50-ft. cable), 24V – customer supplied
Temp. Delta Can maintain a 55°F cellar temperature with up to 120°F condenser air intake temperature
Warranty Two-year limited warranty (parts and labor)

CONDENSER
Model 9000
dBA 48
Dimensions 31.18″L x 10.75″W x 21.18″H
Condensing Unit HP 1HP
Voltage Rating 220V (15-amp dedicated circuit required)
Weight (lbs) 64
Amps LRA 20, RLA 4.25, FLA 4.89
Line Set Liquid Line 3/8″ OD; Suction Line 5/8″ OD (less than 50 ft.), 3/4″ (greater than 50 ft.)
Installation Evaporator unit is installed in the cellar. The condensing unit is installed up to 100 line feet from the evaporator unit.
Temp. Delta Can maintain a 55°F cellar temperature with up to 120°F condenser air intake temperature.
Warranty Two-year limited warranty (parts and labor)
