WhisperKOOL
Ceiling Mount 4000
1000 Cubic Feet

$7,469.00

Free Shipping

SKU: S-WKCM4000-220 Categories: ,

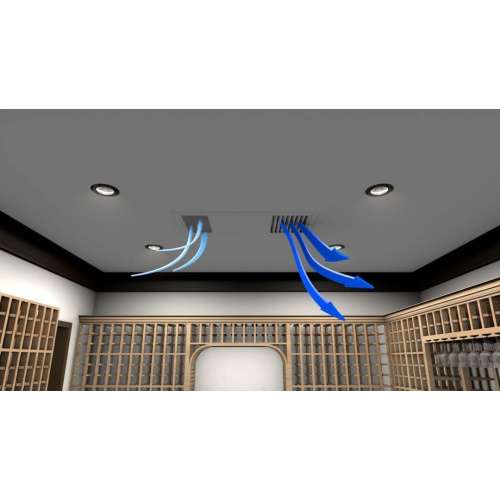

  • Offers excellent efficiency by drawing in the warmer air which accumulates at the ceiling, cooling and dispersing the air throughout the environment

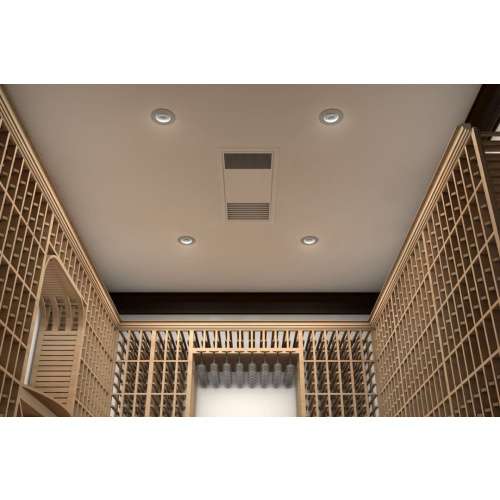

  • Virtually invisible inside the cellar
  • Flare fittings for easy installation
  • Duramax coils
  • Standard and 24V thermostat options are available
  • 2-speed fan switch
  • Hex mesh grille with air filter
  • KDT Digital Controller/Thermostat with 50-ft. cable
  • Standard and 24V thermostat options available
  • Allows for maximum racking space
  • No ducting required
  • 220V High Efficiency (H.E.) Condenser Option

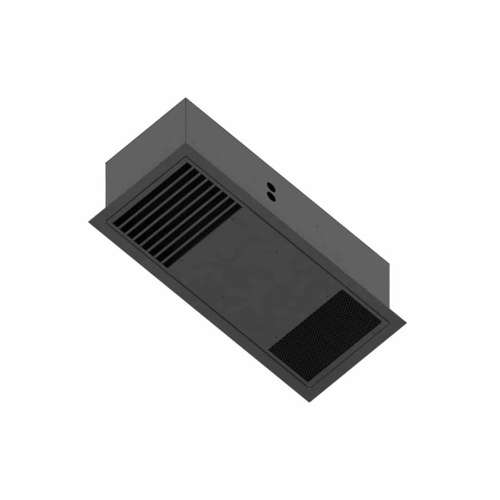

WhisperKOOL has created a ceiling-mounted 4000 split system evaporator because we want you to experience KOOL without seeing it. Your wine should be the center of attention, not a cooling unit. Technicians and installers will be happy to hear that the electrical wiring, bottle probe wiring, and the line set are all located at the bottom of the unit, rather than the top. Not only are the essential components relocated and easier to access, but flare fittings will also now be utilized so that there is no brazing needed in the field. The redesign includes e-coated Duramax evaporator coils which will improve system performance, and a new-looking hex mesh grille with an air filter to protect the unit from the intake of potentially harmful debris during the initial start-up.

Note: A qualified HVAC-R technician is required for installation. Failure to install the system by a qualified technician will void the warranty.

*PLEASE NOTE: WhisperKOOL does not provide a smart thermostat. By selecting the 24V Thermostat Conversion Kit, you have acknowledged that the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. To run the equipment, you will have to source and purchase your own 24V smart thermostat. The WhisperKOOL Customer Satisfaction Team does not provide technical support for smart thermostats.

4000 – 6087

The BTU/h value range shown here is a theoretical number. There are often circumstances under which a cellar design may require a larger unit due to variables not accounted for in the formula. For example, these variables could be building materials (such as glass, stone, concrete, etc.) that do not offer the insulation capacity required to maintain the optimal cellar environment. We recommend purchasing a unit with a larger capacity to compensate for these unaccounted-for variables. An undersized unit can lead to premature failure and will most likely prevent the cellar from reaching your desired temperature.



EVAPORATOR
Model 4000
Cellar Size 1000 cu. ft
Fan Speed Medium | High
BTU/h (60°F condenser air intake temperature) Sensible / Total 4871 / 5430 | 5324 / 6087
BTU/h (75°F condenser air intake temperature) Sensible / Total 4752 / 5291 | 5198 / 5914
BTU/h (85°F condenser airintake temperature) Sensible / Total 4631 / 514  | 4945 / 5351
dBA 48 | 53
Dimensions 35.75”L x 14.5”W x 12.75”H
Refrigerant R-134a
Voltage Rating 120V (15-amp dedicated circuit required)
Weight (lbs) 66
Amps 1.4 (Running Amps)
Drain Line 1/4″ ID clear plastic tubing (not provided) – Rigid tube recommended
Installation Evaporator unit is installed in the cellar. Condensing unit can be installed up to 100 line feet from the evaporator unit.
Thermostat Advanced digital display (50-ft. cable), liquid-temperature-measuring bottle probe (50-ft. cable), 24V – customer supplied
Temp. Delta Can maintain a 55°F cellar temperature with up to 120°F condenser air intake temperature
Warranty Two-year limited warranty (parts and labor)

CONDENSER
Model 4000
dBA 45
Dimensions 31.18″L x 10.75″W x 21.18″H
Condensing Unit HP 0.6HP
Voltage Rating 220V (15-amp dedicated circuit required)
Weight (lbs) 55
Amps LRA 10.7, RLA 2.7, FLA 3.1
Line Set Liquid line 1/4” OD; Suction line 1/2” OD (less than 50 ft.), 5/8” (greater than 50 ft.)
Installation Evaporator unit is installed in the cellar. The condensing unit is installed up to 100 line feet from the evaporator unit.
Temp. Delta Can maintain a 55°F cellar temperature with up to 120°F condenser air intake temperature.
Warranty Two-year limited warranty (parts and labor)
