Condensate Pump Kit

$229.00

Free Shipping

Specifications:
Dimensions: 5″ W x 7″ H x 11″ D
Weight:  4.6 lbs
AMPS:  1
Watts:  60
Hertz:  60
Voltage:  115
Flow:  65GPH @ 1′ of Head
Horsepower:  1/50

SKU: 1-122130 Category:

Description

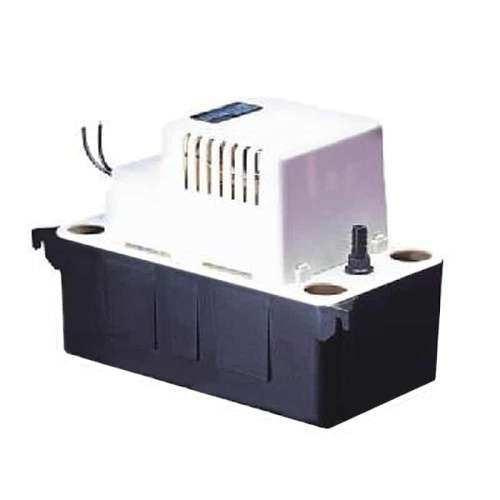

The condensate pump kit is designed as an automatic condensate removal pump for water dripping out of our cooling units’ drain line. The pump is controlled by a float/switch mechanism that turns the pump on when approximately 2-1/4” of water collects in the tank, and automatically switches off when the tank drains to approximately 1-1/4”. The condensate pump kit allows the excess condensate to be pumped up to 20ft away from the unit.

MANUAL

Key Features:

  • Fully Automatic
  • 1/2 gallon leakproof, rustproof, high impact ABS tank
  • 3 drain holes
  • Removable 3/8″ barbed check valve
  • New generation float arm for enhanced reliability
  • Thermal overload protection
  • Suitable for High-Efficiency, Gas-Furnace Condensate
  • ABS plastic motor and tank cover, and volute
  • Polypropylene Impeller
  • Stainless steel shaft
  • Snap-action switch
  • Easy installation
  • UL & CSA listed

Additional information

SPECS

Specifications
Dimensions: 5"w x 7"h x 11"d
Weight: 4.6lbs
AMPS: 1
Watts: 60
Hertz: 60
Voltage: 115
Flow: 65GPH @ 1' of Head
Horsepower: 1/50
