CellarPro 3200/4200 VS & Split Duct KIT
(Cold Side) High Relative Humdity
RETROFIT #7509

$1,185.00

Shipping $102

CellarPro VS / Split Duct KIT(Cold Side) + REMOTE RETROFIT. Duct openings are designed to attach to two 8-inch ducts for evaporator intake and exhaust. Ducting should be 8-inch or greater from start to finish, and must not be reduced. Custom design allows access to controls and switches on the face of the cooling unit.

Requires 9 inches of additional height at the front of the cooling unit.

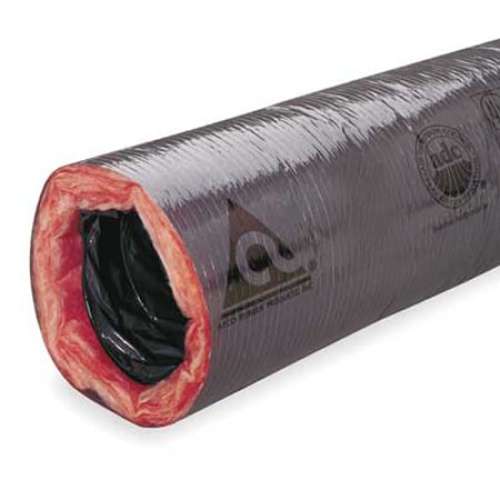

Kit includes: Insulated duct hood, 50 feet (2×25) of 8-inch insulated (R-6) ducting, remote control display kit and bottle probe.

The high fan speed setting is required when our unit is ducted.

  • Custom duct kit for CellarPro 3200 / 4200 VS and 3000S / 4000S Split Refrigeration Systems. With this kit, the cold air intake/exhaust can be ducted up to 100 equivalent feet (50 feet per opening).
  • Includes Remote Display/Control Unit, Bottle Probe, and 50′ of Duct

    Required for use in moderate or high humidity environments.
    • Attaches easily to the front of 3200/4200 VS and 3000S/4000S Split refrigeration systems
    • Provides access to cooling unit control panel and switches
    • Designed for easy hook-up to 8″ ducting
    • One or both openings may be ducted (total of 100 equivalent feet)
    • Bottle probe with 10′ cord plugs into face of the cooling unit
    • Maintains accurate temperatures inside the wine cellar
    • Includes our remote control display kit.

Please refer to the following resources before purchasing this kit:
This duct hood is required when the cooling unit will be installed in unconditioned environments, subject to the limitations listed in our Low RH vs High RH Duct Kit Chart. In some cases, the conditions are too extreme for any of our cold-side duct kits.
Use our ducting heat loss table and our duct correction table to correctly adjust the sizing of your cooling unit, because ducting will add to the thermal load of the cellar.
Refer to our Bottle Probe Operating Instructions to correctly set the cooling unit depending on how you’re using the Bottle Probe

Brand: CellarPro

Size: 14 1/4w x 4 3/4d x 27 1/2h (in)

Weight: 45 lbs

Capacity: 100 Equivalent Feet

Warranty:
1 Year

Click on one of the following links for more information:

Custom duct KIT for CellarPro 3200 / 4200 VS and 3000S / 4000S Split Refrigeration Systems. With this kit, the cold air intake/exhaust can be ducted up to 100 equivalent feet (50 feet per opening). Insulated ducting (2 x 25′) is included.

  • Attaches easily to the front of 3200/4200 VS and 3000S/4000S Split refrigeration systems
  • Appropriate for Unconditioned / High-humidity environments
  • Provides access to cooling unit control panel and switches
  • Designed for easy hook-up to insulated 8″ ducting (included)
  • Both openings must be ducted (total of 100 equivalent feet) to/from the cellar
  • Maintains accurate temperatures inside the wine cellar
  • Includes our remote thermostat bottle probe (measures air or liquid temperatures)
  • Includes our remote control display kit
