$5,995.00
Free Shipping
*Shipments to AK and HI – Please call for quote
4390 BTUH @ 13C/50Hz.
CellarPro’s 6000S 220V 1/2 Ton Nominal cooling units are suitable for wine cellars up to 35 cubic meters in both commercial and residential wine cellars. The 35 cubic feet cellar size assumes that the cellar is constructed with insulation of R19 or better in all walls and ceiling (ie no glass or uninsulated concrete), the cooling unit is not ducted, a setpoint of 13°C inside the cellar and ambient temperatures up to 27°C outside the cellar.
Performance testing shows that this unit maintains optimal cellar temperature and humidity conditions in extreme conditions up to 43°C more effectively than similar units from competing brands. 6000S 220V units also are significantly quieter than comparable units from other brands.
This unit may be used in North America as well as in overseas markets.
CellarPro Split refrigeration systems can be wired so that the Evaporator and Condensing Units are wired together with one power source, or the Condensing unit is controlled via Solenoid Valve and each unit has its own power source. Please indicate which configuration you prefer.
CellarPro 6000S 220V Cooling Unit. CellarPro made the 6000S 220V Wine Cooling Unit. In order to provide maximum cooling power and adjustable humidity control. For wine cellars up to 35 cubic meters in 220V environments with 50Hz or 60Hz.
Wine Cooling Unit separate the evaporator from the condensing unit. Thus allowing the noise and heat from the condensing unit to be located away from interior living areas. Configurable for internal or external installations, the 6000S 220V includes a variable-speed fan on the evaporator with a low setting for quieter operation and a high setting for maximum power.
Configurations
Brand: CellarPro
UPC: 077757073458
Size: 77 1/5w x 36 3/5d x 33 1/2h (cm)
Weight: 39 lbs
Power/Rating:
220V AC 50/60 Hz

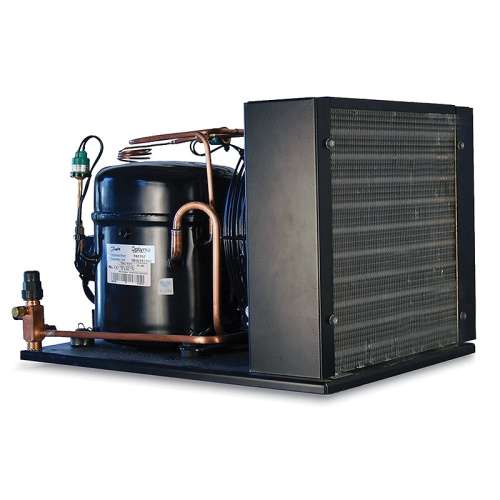

Condensing Unit Dimensions:
– 20.4 kg
– 35.3w x 48d x 30.2h (cm)

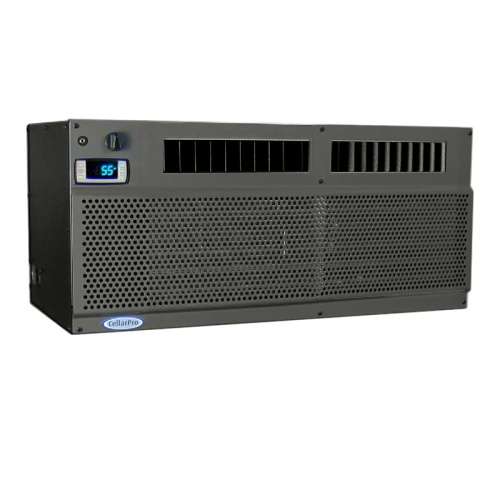

Evaporator Unit Dimensions:
– 18.1 kg
– 77.2w x 36.6d x 33.5h (cm)
System Amps:
– Common dedicated 20-amp circuit (valve control) or 25-amp circuit (electronic control) is required to power the unit.
– Startup: 18.6 Amps
– Unit Amp Rating: 8.5 Amps (high fan speed)
BTUH @ 13C / 60Hz / Evaporator Decibels
– Low Fan Speed: 4311 / 56 dbA
– Med Fan Speed: 4880 / 61 dbA
– High Fan Speed: 5046 / 69 dbA
BTUH @ 13C / 50Hz / Evaporator Decibels
– Low Fan Speed: 3751 / 56 dbA
– Med Fan Speed: 4246 / 61 dbA
– High Fan Speed: 4390 / 69 dbA
– 1/4 Ton Nominal
Condensing Unit Decibels
– Indoor: 65
– Outdoor: 63
Capacity: 4390 BTUH @ 50Hz / 13C
Material: Metal
Warranty:
To activate your warranty, you must complete and return our Split Installation Checklist.
Warranty Overview
Click on one of the following links for more information:
CellarPro 6000S 220V Cooling Unit (P/N 7345). CellarPro made the 6000S 220V Wine Cooling Unit to provide maximum cooling power and adjustable humidity control. For wine cellars up to 35 cubic meters in 220V environments with 50Hz or 60Hz. Wine Cooling Unit separate the evaporator from the condensing unit.
Thus allowing the noise and heat from the condensing unit to be located away from interior living areas. Configurable for internal or external installations, the 6000S 220V includes a variable-speed fan on the evaporator with a low setting for quieter operation and a high setting for maximum power.
All air-cooled refrigeration equipment requires fresh air intake to dissipate the heat generated by the cooling unit. The fresh air intake CANNOT come from the wine cellar space – it must come from space outside the cellar.
Cold Temperature
Hoods
Filters & Grills
Remote Thermostats, Displays & Probes
DID YOU KNOW?
Nobody protects your wine cellar better than CellarPro Cooling Systems! In the event your cooling unit fails and the failed components are covered by our warranty, we’ll send a replacement cooling unit to you per the terms of our Replacement Unit Program
CellarPro Replacement Unit Program
If your CellarPro cooling unit fails and the parts that failed are still covered by warranty, we’ll send a replacement cooling unit to you, as follows:
