$6,295.00
Free Shipping
*Shipments to AK and HI – Please call for quote
7156 SENSIBLE BTUH @ 55F.
CellarPro AH8500SCv-ECX ducted cooling units (1 Ton Nominal) are suitable for wine cellars up to 2,500 cubic feet in both commercial and residential wine cellars.

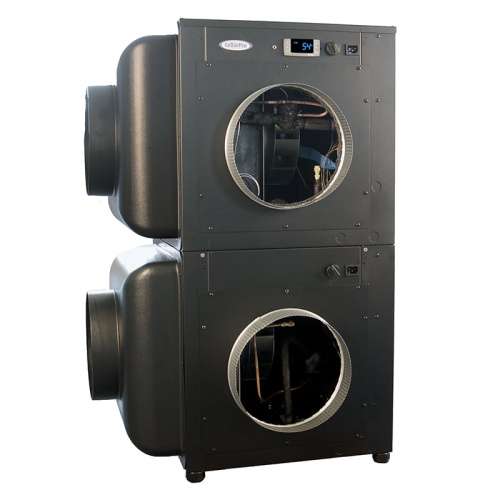

CellarPro AH8500SCv Cooling Unit. CellarPro made the AH8500SCv Ducted Wine Cooling System. In order to provide maximum cooling power and adjustable humidity control for cellars up to 2,500 cubic feet. The evaporator and the condensing unit each can be ducted up to 100 equivalent feet. (50 equivalent feet per duct.)
Made for internal installations, the Wine Cooling System includes a variable-speed fan on the evaporator. With a low setting for quieter operation and a high setting for maximum power. This Wine Cooling System has a vertical configuration for installations in locations with limited floor space. (eg on the floor in a mechanical room).
Configurations
Brand: CellarPro
Size: 18 3/5w x 18 3/5d x 37 9/10h (in) 10-inch ducting
Weight: 220 lbs
Power/Rating:
Dimensions:
– 170 lbs (no humidifier)
– 18.6w x 18.6d x 37.9h
Power:
– CellarPro Air Handlers use two 110V / 60Hz plug-in power cords, as follows:
– Startup Amps: 54.5 Amps
– Running Amps Cord-Connected: 14.6 Amps
– Total Watts: 1078 (medium fan speed)
– 1 Ton Nominal
BTUH @ 55F
– Low Fan Speed: 6245
– Med Fan Speed: 6649
– High Fan Speed: 7156
Decibels
Evaporator Decibels
– Low Fan Speed, Ducted: 38 dbA
– Med Fan Speed, Ducted: 44 dbA
– High Fan Speed, Ducted: 52 dbA
Condenser Decibels
– Low Fan Speed, Ducted / Non-Ducted: 45 dbA / 58 dbA
– Med Fan Speed, Ducted / Non-Ducted: 52 dbA / 65 dbA
– High Fan Speed, Ducted / Non-Ducted: 57 dbA / 70 dbA
Warranty Resources
– Warranty Overview
Click on one of the following links for more information:
CellarPro AH8500SCv-ECX Cooling Unit (P/N 7109). CellarPro engineered the AH8500SCv-ECX ducted cooling system to provide maximum cooling power and adjustable humidity control for cellars up to 2,500 cubic feet. The evaporator and the condensing unit each can be ducted up to 100 equivalent feet (50 equivalent feet per duct.) Designed for internal installations, the AH8500SCv-ECX includes independent energy-efficient variable-speed EC fans with a low setting for quieter operation and a high setting for maximum power. This unit has a vertical configuration for installations in locations with limited floor space (eg on the floor in a mechanical room).
All air-cooled refrigeration equipment requires fresh air intake to dissipate the heat generated by the cooling unit. The fresh air intake CANNOT come from the wine cellar space – it must come from space outside the cellar.
Cold Temperature
Filters & Grills
Remote Thermostats, Displays & Probes
Heating & Humidification
DID YOU KNOW?
Nobody protects your wine cellar better than CellarPro Cooling Systems! In the event your cooling unit fails and the failed components are covered by our warranty, we’ll send a replacement cooling unit to you per the terms of our Replacement Unit Program
CellarPro Replacement Unit Program
If your CellarPro cooling unit fails and the parts that failed are still covered by warranty, we’ll send a replacement cooling unit to you, as follows:
