CellarPro 8200VSx-ECX
Exterior – Through The Wall Cooling Unit
#14787

Free Shipping
*Shipments to AK and HI – Please call for a quote

6438 BTUH @ 55°F.
CellarPro’s 8200VSx cooling units (1 Ton Nominal) are suitable for external installations from 20°F to 115°F in residential and commercial wine cellars up to 2,200 cubic feet. The 2,200 cubic feet cellar size assumes that the cellar is constructed with insulation of R19 or better in all walls and ceiling (ie no glass or uninsulated concrete), the cooling unit is not ducted, a setpoint of 55°F inside the cellar and ambient temperatures up to 85°F outside the cellar.

Description

CellarPro 8200VSx Cooling Unit (1 Ton Nominal). Designed for external installations, CellarPro made the 8200VSx Wine Cellar Cooling Units Self Contained. In order to provide maximum cooling power and adjustable humidity control for cellars up to 2,200 cubic feet.

8200VSx Wine Cellar Cooling Units Self Contained are built with high-output Tecumseh rotary compressors and oversized coils. For maximum performance in high-temperature environments up to 115°F.

These Wine Cellar Cooling Units Self Contained Units also feature variable-speed fans. With a low setting for quieter operation when conditions permit. Beginning with the 8200VSi cooling unit for interior installations.

We add an exterior weather hood, cold-temperature compressor heater, coated condenser coils. Double-powder-coated exterior case, reusable aluminum filter and exterior-grade power cord with these cooling units.

  • This unit can operate in extreme temperature conditions (-20 to 115°F), with the rear of the unit exposed to external environments.
  • Dual high-output centrifugal fans come with variable speed settings for your choice of maximum cooling power at the high fan speed. Or quieter operation (66 decibels) at the low fan speed.
  • Adjustable humidity control combines a high-output compressor with flexible fan cycles. In order to maintain a essential level of moisture inside your cellar.



Configurations

Configurations

  • CellarPro 8200VSx-ECX units are self-enclosed. Fully-charged units made to be installed through an external wall.
  • 8200VSx-ECX units can be located remotely from the cellar. With the addition of one of our front duct packages. (however, the entire unit cannot be located in an external environment).
  • Sold with or without insulated flex ducting, in a choice of configurations for low or high humidity conditions. Our front duct packages allow these cooling units to be ducted up to 50 equivalent feet away from the cellar using 10-inch ducting.
  • When calculating equivalent feet, each 90-degree turn counts for 8 feet.
  • For remote or inaccessible installations, we offer a remote control display kit which is wired to the cooling unit and allows the digital display to be mounted inside or outside the cellar.
  • 8200VSx-ECX units require fresh air intake at the rear of the cooling unit. And are made to handle shade environments ranging from 20F to 110F.
  • For installation in environments below 20F down to -20F. It will be necessary to add our Fan-Cycling Switch (P/N 6972).
  • The front of the cooling unit should never be put to temperatures below 32F.
  • A CellarPro cooling unit must always be in the upright position. And should never be operated on its side or upside down.
  • We ship these units strapped to a pallet via common carrier with curbside delivery. Inside delivery is available for an additional charge.

Specs & Resources

Brand: CellarPro

UPC: 077757147876

Size: 16 1/4w x 31 3/4d x 22 1/8h (in)

Weight: 180 lbs

Power/Rating:
115V AC / 60 Hz
Compressor Amps:
– Common dedicated 15-amp circuit is essential to power the unit.
– Startup: 48.3 Amps
– Unit Amp Rating: 9.7 Amps (high fan speed)
– Total Watts with Low Fan: 862
– Total Watts with Evaporator Off / Low Fan: 862
BTUH @ 55F:
– Low Fan Speed: 6254 / 57 decibels
– High Fan Speed: 6438 / 59 decibels
– 1 Ton Nominal
Compatible with 15-Amp Dedicated Circuit

Click on one of the following links for more information:

WARNING - This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Features

CellarPro 8200VSx-ECX Cooling Unit (P/N 14787). Made for external installations. CellarPro engineered the 8200VSx-ECX cooling unit to provide maximum cooling power and adjustable humidity control. For wine cellars up to 2,200 cubic feet. 8200VSx-ECX units are built with high-output Tecumseh rotary compressors and oversized coils. For maximum performance in high-temperature environments up to 110F.

These units also feature variable-speed fans with a low setting for quieter operation when conditions permit. Beginning with the 8200VSi cooling unit for interior installations. We add an exterior weather hood, cold-temperature compressor heater. Coated condenser coils, double-powder coated exterior case, reusable aluminum filter and exterior-grade power cord.

All air-cooled refrigeration equipment requires fresh air intake to dissipate the heat generated by the cooling unit. The fresh air intake CANNOT come from the wine cellar space – it must come from space outside the cellar.

  • Now with energy-efficient EC Fans on both the cold and hot sides. Save $300.18 in annual energy costs vs AC fans. (assumes 75% runtime and $0.15/kWh)
  • This unit can operate in extreme temperature conditions (-20 to 110F). With the rear of the unit open to shaddy external environments.
  • Dual high-output centrifugal fans come with variable speed settings for your choice of maximum cooling power. At the high fan speed, or quieter operation (57 decibels) at the low fan speed.
  • Adjustable humidity control combines a high-output compressor with flexible fan cycles. In order to maintain a necessary level of moisture inside your cellar.
  • Extra-large coils generate maximum cooling power inside the cellar.
  • Excess condensate is managed with a high-capacity stainless steel drain pan. Welded 1/2″ drain line and 100W electric heating element with “On/Off” Control.
  • Commercial-grade Electrofin coating protects the evaporator and condenser coils from leaks and corrosion.

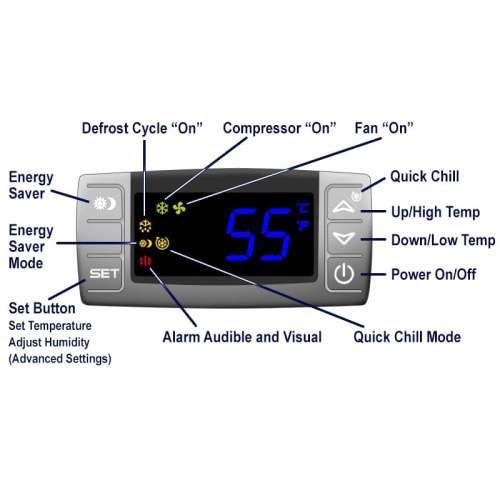

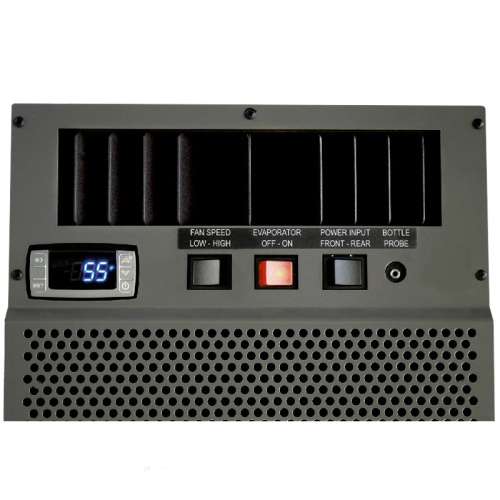

  • Intuitive LED display panel mounted on the evaporator with digital programmable thermostat. Which is simple and easy to use. Remote thermostat is available as an upgrade.
  • Energy-saver mode, quick-chill mode, and auto-defrost cycle provide convenient solutions to common cellar needs.
  • Temperature set point range is 47F to 62F when the cooling unit is of right size.
  • Unit operates with minimal vibrations and less noise than comparable units from competitors.
  • Audible and visual alarms and maintenance  indicator protect the cooling unit and the wine cellar.
  • Common dedicated 15-amp circuit is essential to power the unit.
  • With dual power sources and a 10-foot power cord. The unit can be plugged into a receptacle. From either the front or the rear of the cooling unit, providing flexibility for most installations.

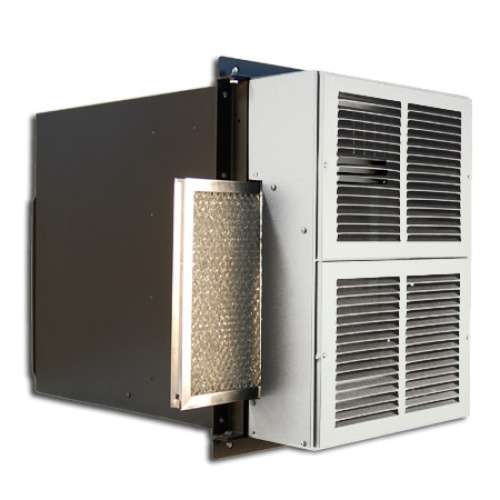

  • Our easy-access reusable aluminum air filter protects the condenser coils. And increases the expected useful life of the cooling unit.
  • Adjustable mounting brackets, include standard equipment, ensure easy installation.
  • Removable steel case and refrigerant access valve provides access to the internal components for servicing and repair.
  • CellarPro’s 5-Year Standard Warrantythe most thorough in the industry, protects the unit against manufacturing defects.
  • An optional Extended Warranty (P/N 1836) is available for additional protection.
  • ETL Tested and Certified to rigorous UL Standards for safety.

Options & Upgrades

Cold Temperature

  • Compressor Heater #1727: protects the unit when installed in environments that drop below 40F down to 20F – INCLUDED.
  • Fan Cycling Switch #6972: supports the unit in temperatures below 20F. And as low as -20F when combined with our compressor heater.


Duct Hoods

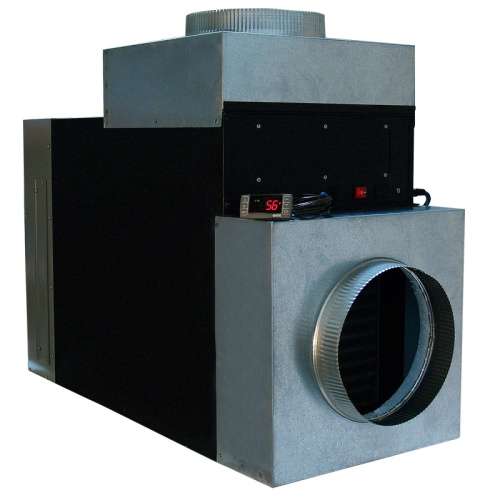

  • Duct Hoods (Cold Side) (#16667 for low-humidity environments. Or #16668 for high-humidity environments). And Kits (#14680 for low-humidity environments or #15088 for high-humidity environments). It permits the cooling unit to be located remotely, up to 50 equivalent feet away from the cellar.
  • Duct Kits are the same as Duct Hoods, and also include 2 x 25-feet of 10-inch insulated (R-6) flex ducting.


Filters & Grills

  • Use our filter & grill guide to find the cooling unit filter. Or duct filter and/or duct grill that is appropriate for your cooling unit.


Remote Thermostats, Displays & Probes

  • Networkable Thermostats #27346 and #27310: connect your cooling unit to a networkable, wi-fi enabled thermostat (sold separately). You must order it at the same time that the equipment order is given. Other limitations apply – read the networkable thermostat description for more information. Includes 10 feet of wiring.
  • Remote Display #1603: lets you place the digital panel wherever you want. Whether inside or outside the cellar. Includes 10 feet of wiring.
  • Bottle Probe #1434: this remote thermostat with a 10-foot cord overrides the thermostat on the face of the cooling unit, and allows it to monitor air or liquid temperatures at various locations inside the cellar.
  • Extension cords available in 25-foot (#1780) and 50-foot (#1781) lengths.

DID YOU KNOW?
Nobody protects your wine cellar better than CellarPro Cooling Systems! In the event your cooling unit fails and the failed components are covered by our warranty, we’ll send a replacement cooling unit to you per the terms of our Replacement Unit Program

CellarPro Replacement Unit Program
If your CellarPro cooling unit fails and the parts that failed are still covered by warranty, we’ll send a replacement cooling unit to you, as follows:

  1. Your cooling unit must be registered at CellarPro
  2. Your cooling unit must have been properly sized, installed and maintained
  3. Your cooling unit may not have been permanently modified, damaged or disfigured

Please note:

  • Replacement units are factory-refurbished cooling units with a similar build date as your original unit
  • You are responsible for the shipping cost to send the replacement unit to you and return the original unit to us, and the cost (if any) to remove the original unit and install the replacement unit
  • In order to send a replacement unit, we require a deposit, which will be refunded minus shipping costs upon the return and pending the inspection of the original unit
  • If the original unit failed due to improper intallation or use, the failure is not covered by warranty and we will deduct the cost of the repairs from the refund of your deposit



Additional information

Brand

CellarPro

SPECS

Capacity:6438 BTUH @ 55F Size:16.25w x 31.75d x 22.13h (in) Weight:180 lb Power/Rating:115V AC / 60 Hz Compressor Amps: – Startup: 48.3 Amps – Unit Amp Rating: 11.8 Amps (high fan speed) – Total Watts with Evaporator On / Low Fan: 1135 – Total Watts with Evaporator Off / Low Fan: 1235 3/4 Ton Nominal Compatible with 15-Amp Dedicated Circuit Warranty:2 Years (Entire System) / 5 Years (Compressor) Optional Extended Warranty
