CellarPro 1800H
Houdini 220V / 50Hz
#27247

$3,395.00

Free Shipping
*Shipments to AK and HI – Please call for a quote

1731 SENSIBLE BTUH @ 12.8C.

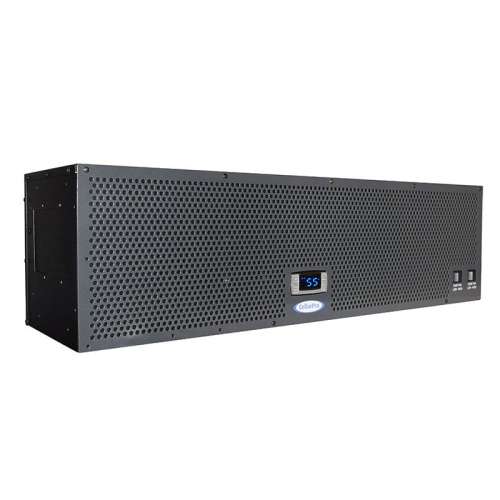

CellarPro’s 1800H-ECX 220V / 50Hz cooling unit (1/6 Ton Nominal) is the first cooling unit designed specifically for glass-enclosed wine cellars, and uses energy-efficient variable-speed EC fans for maximum performance.

This cooling unit is designed for 220V / 50Hz environments only. It should not be used in 60Hz environments (eg North America).

Features include:

  • Shallow height and depth
    • Fits shallow glass enclosures
    • 267mm D x 254mm H
    • 927mm W
  • Can be placed inside the cellar, atop the cellar, partially installed in the cellar ceiling, or completely remote from the cellar (requires duct kit and rigid corners)
    • Choice of airflows for the cold side

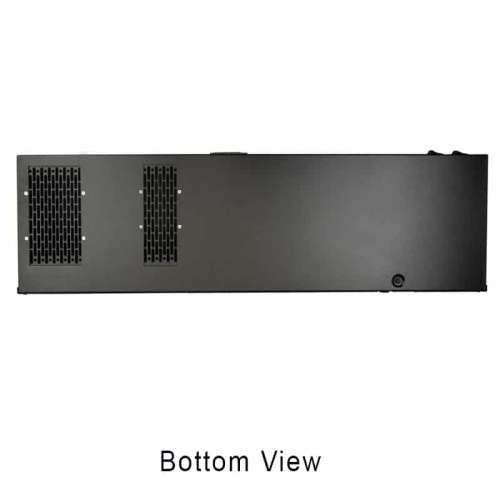

      • Intake from bottom or left side
      • Exhaust from bottom or the front side
      • Air deflector optional
    • Choice of airflows for hot side
      • Intake from the top or right side

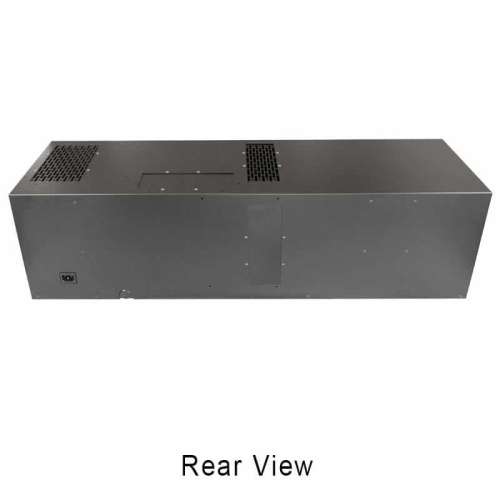

      • Exhaust from the rear or the top side (the top exhaust offers 2 orientations)
      • Air deflector optional
  • Energy-efficient variable-speed EC fans with independent controls
  • The cooling unit can be ducted on hot, cold, or both sides
  • Oversized stainless-steel drain pan with 100W heating element
    • Included as standard equipment
    • No drain line is required for properly constructed, airtight cellars
    • Optional overflow drain fitting and 8′ flexible drain line
  • Choice of power source
    • Side or rear
    • Removable 10-ft cord
  • Optional remote display
  • Optional bottle probe

CellarPro 1800H-ECX Houdini 220V / 50Hz Cooling Unit (P/N 27247). NOW WITH ENERGY-EFFICIENT EC FANS! CellarPro engineered the 1800H-ECX cooling unit specifically for shallow-depth glass wine cellars.

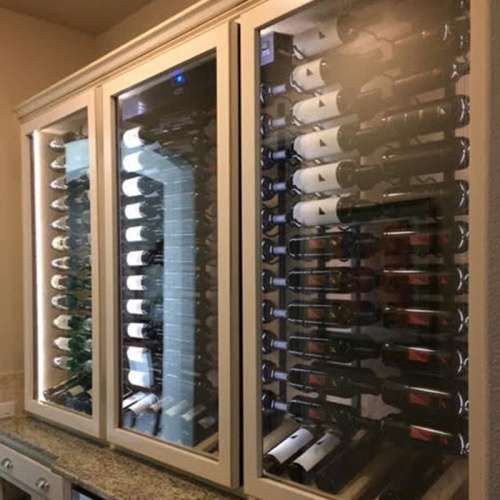

Just 267mm deep and 254mm tall, the 1800H-ECX Houdini cooling unit is designed to “disappear” inside – or atop – the cellar. Dual independent variable-speed fans offer flexibility to trade-off between super-quiet operation vs maximum performance.

For example, assuming 23.9C ambient temperature, R13 insulation in the non-glass walls and no ducting, the 1800H-ECX 220V / 50Hz cooling unit would work in the following cellars:


Cellar Dims
  Cellar
Cu M

Glass Sq M

Glass Pane
Cellar
Temp

BTUH
6’w x 2 1/2’d x 9’h   3.9 5.0 (Front Wall)   Single 15.6C 1735
7’w x 2 1/2’d x 10’h   5.0 6.5 (Front Wall)   Double 12.8C 1681
7’w x 2 1/2’d x 10’h   5.0 11.2 (Front & Side Walls)   Double 14.4C 1922

All air-cooled refrigeration equipment requires fresh air intake to dissipate the heat generated by the cooling unit. The fresh air intake CANNOT come from the wine cellar space – it must come from space outside the cellar.

Variable-speed fans with independent control provide maximum flexibility and versatility, as follows:

  • Variable fan speed for the cold side
    • Provides cooling flexibility
    • Low fan speed: 1520 BTUH @ 12.8C / 10.6C lowest achievable cellar temperature
    • High fan speed: 1731 BTUH @ 12.8C / 8.3C lowest achievable cellar temperature
  • Variable fan speed for the hot side
    • Choose between performance vs noise
    • Low fan speed: 49 dBA / 29.4C maximum intake temperature
    • High fan speed: 55 dBA / 35C maximum intake temperature

Powerful fans on the 1800H-ECX allow the cooling unit to be ducted without the need for an auxiliary fan, as follows:

  • Cold side with 203mm insulated ducting:
    • Up to 15.24 equivalent meters (7.62 meters per duct)
    • Intake from the left / exhaust from the front
  • Hot side with 152.4mm ducting :
    • Up to 15.24 equivalent meters (7.62 meters per duct) and 29.4C maximum intake temperature (no auxiliary fan required)
    • Up to 30.48 equivalent meters (15.24 meters per duct) and 35C maximum intake temperature (requires auxiliary fan)
  • Ducting requires CellarPro duct equipment (sold separately)

Before purchasing this unit, let us calculate the thermal load of your wine cellar.

  • Features energy-efficient EC Fans on both the cold and hot sides
  • This unit can be configured to pull fresh air ranging from -29C to 35C. If the unit’s location does not provide sufficient room for the unit’s exhaust to dissipate and/or fresh air to be provided, you may need to purchase a rear duct kit. Fresh air intake below 4.4C will require the addition of a compressor heater, and fresh air intake below -6.7C also will require the addition of a fan cycling switch.
  • The unit must be placed indoors in an area that is above 0C.
  • Dual high-output fans come with independent variable speed settings for your choice of maximum cooling power at the high fan speed or super-quiet operation (49 decibels) at the low fan speed.
  • Adjustable humidity control combines a high-output compressor with flexible fan cycles to maintain a recommended level of moisture inside your cellar.
  • Custom coils generate maximum cooling power inside the cellar.
  • Excess condensate is managed with a high-capacity stainless steel condensate pan and 100W electric heating element.
  • Commercial-grade Electrofin coating protects the evaporator coils from leaks and corrosion.

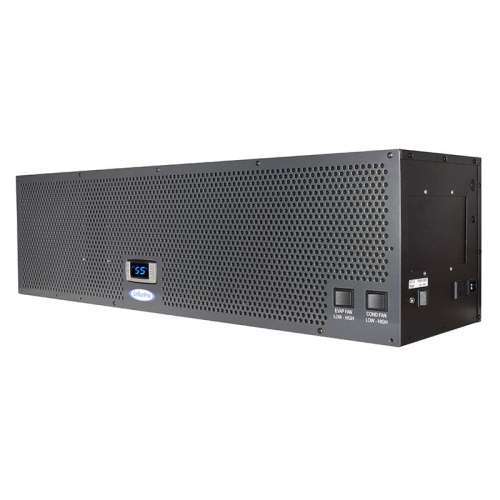

  • An Intuitive LED display panel mounted on the evaporator with a digital programmable thermostat is simple and easy to use. The remote thermostat is available as an upgrade.
  • Energy-saver mode, quick-chill mode, and auto-defrost cycle provide convenient solutions to common cellar needs.
  • The temperature setpoint range is 8.3C to 16.7C when the cooling unit is properly sized.
  • The unit operates with minimal vibrations and less noise than comparable units from competitors.
  • Audible and visual alarms and maintenance-needed indicators protect the cooling unit and the wine cellar.
  • With dual power sources and a 3-meter power cord, the unit can be plugged into a receptacle from either the rear or right side of the cooling unit, providing flexibility for most installations.
  • Common 220V/50Hz/1Ph dedicated 15-amp circuit is required to power the unit.

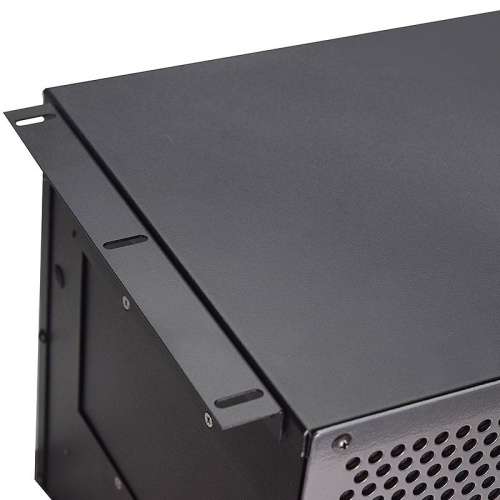

  • Mounting brackets, included as standard equipment, ensure easy installation.
  • A removable steel case provides access to the internal components for servicing and repair.
  • CellarPro’s 2-Year Standard Warrantythe most thorough in the industry, protects the unit against manufacturing defects.

Configurations

  • CellarPro 1800H-ECX cooling units are self-contained, fully-charged units designed to be attached to the ceiling inside the cellar, or above the cellar.
  • 1800H-ECX units also can be located remotely from the cellar with the addition of one of our cold-side duct packages. Offered with or without insulated flex ducting, in a choice of configurations for low or high humidity conditions, our cold-side duct packages allow these cooling units to be ducted up to 15.24 equivalent meters (7.62 meters per duct). Ducting must be 203mm (or greater) diameter from start to finish
  • When calculating equivalent feet, each 90-degree turn counts for 2.4 meters.
  • For remote or inaccessible installations, we offer a remote control display kit which is wired to the cooling unit and allows the digital display to be mounted inside or outside the cellar.
  • 1800H cooling units require fresh air intake without interference from the unit’s hot air exhaust. If sufficient space does not exist to provide fresh air, you may need our hot-side duct kit.
  • If the fresh air intake (on the hot side) will pull air below below 4.4C, the cooling unit will require our Compressor Heater (P/N 1727) .
  • If the fresh air intake (on the hot side) will pull air below -6.7C down to -29C, we recommend our Fan-Cycling Switch (P/N 6972) combined with our compressor heater.
  • The cooling unit should never be exposed to temperatures below 0C.
  • A CellarPro cooling unit must always be used in the upright position, and should never be operated on its side or upside down.

Brand: CellarPro

Size: 927w x 267d x 254h (mm)

Weight: 80 lbs

Power/Rating:
220V AC / 50 Hz
Compressor Amps:
– Startup (LRA): 13.5 Amps
– Unit Amp Rating: 2.82 Amps
– Total Watts with Fans on High: 420
– Total Watts with Fans on Low: 404
– Compatible with Dedicated 220V/50Hz/1Ph 15-Amp Circuit

BTUH @ 12.8C:
– Low Fan Speed: 1520 BTUH
– High Fan Speed: 1731 BTUH
– 1/4 Ton Nominal

Warranty Resources

Click on one of the following links for more information:

WARNING - This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

CellarPro 1800H-ECX Houdini 220V / 50Hz Cooling Unit (P/N 27247). CellarPro engineered the 1800H-ECX cooling unit specifically for shallow-depth glass wine cellars.

Just 267mm deep and 254mm tall, the 1800H-ECX Houdini cooling unit is designed to “disappear” inside – or atop – the cellar. Dual independent variable-speed fans offer flexibility to trade-off between super-quiet operation vs maximum performance.

For example, assuming 23.9C ambient temperature, R13 insulation in the non-glass walls and no ducting, the 1800H-ECX 220V / 50Hz cooling unit would work in the following cellars:


Cellar Dims
  Cellar
Cu M

Glass Sq M

Glass Pane
Cellar
Temp

BTUH
6’w x 2 1/2’d x 9’h   3.9 5.0 (Front Wall)   Single 15.6C 1735
7’w x 2 1/2’d x 10’h   5.0 6.5 (Front Wall)   Double 12.8C 1681
7’w x 2 1/2’d x 10’h   5.0 11.2 (Front & Side Walls)   Double 14.4C 1922

All air-cooled refrigeration equipment requires fresh air intake to dissipate the heat generated by the cooling unit. The fresh air intake CANNOT come from the wine cellar space – it must come from space outside the cellar.

Variable-speed fans with independent control provide maximum flexibility and versatility, as follows:

  • Features energy-efficient EC Fans on both the cold and hot sides
  • This unit can be configured to pull fresh air ranging from -29C to 35C. If the unit’s location does not provide sufficient room for the unit’s exhaust to dissipate and/or fresh air to be provided, you may need to purchase a rear duct kit. Fresh air intake below 4.4C will require the addition of a compressor heater, and fresh air intake below -6.7C also will require the addition of a fan cycling switch.
  • The unit must be placed indoors in an area that is above 0C.
  • Dual high-output fans come with independent variable speed settings for your choice of maximum cooling power at the high fan speed, or super-quiet operation (49 decibels) at the low fan speed.
  • Adjustable humidity control combines a high-output compressor with flexible fan cycles to maintain a recommended level of moisture inside your cellar.
  • Custom coils generate maximum cooling power inside the cellar.
  • Excess condensate is managed with a high-capacity stainless steel condensate pan and 100W electric heating element.
  • Commercial-grade Electrofin coating protects the evaporator coils from leaks and corrosion.
  • Intuitive LED display panel mounted on the evaporator with digital programmable thermostat is simple and easy to use. Remote thermostat is available as an upgrade.
  • Energy-saver mode, quick-chill mode, and auto-defrost cycle provide convenient solutions to common cellar needs.
  • Temperature set point range is 8.3C to 16.7C when the cooling unit is properly sized.
  • Unit operates with minimal vibrations and less noise than comparable units from competitors.
  • Audible and visual alarms and maintenance-needed indicator protect the cooling unit and the wine cellar.
  • With dual power sources and a 3-meter power cord, the unit can be plugged into a receptacle from either the rear or right side of the cooling unit, providing flexibility for most installations.
  • Common 220V/50Hz/1Ph dedicated 15-amp circuit is required to power the unit.
  • Mounting brackets, included as standard equipment, ensure easy installation.
  • Removable steel case provides access to the internal components for servicing and repair.
  • CellarPro’s 2-Year Standard Warrantythe most thorough in the industry, protects the unit against manufacturing defects.

Cold Temperature

  • Compressor Heater #1727: protects the unit when installed in environments that drop below 40F down to 20F.
  • Fan Cycling Switch #6972: supports the unit in temperatures below 20F and as low as -20F when combined with our compressor heater.


Duct Hoods

  • Duct Hood (Hot or Cold Side)#25563and Kit#25562: permits the cooling unit to be located remotely and duct the airflow up to 50 equivalent feet (25′ per duct); also permits the unit to be installed in a small space and use ducting for airflow up to 50 equivalent feet (25′ per duct)
  • Duct Kits are the same as Duct Hoods, and also include 2 x 25-feet of \insulated (R-6) flex ducting.


Filters & Grills

  • Use our filter & grill guide to find the cooling unit filter or duct filter and/or duct grill that is appropriate for your cooling unit.


Remote Control & Probe

  • Remote Display #1603: lets you place the digital panel wherever you want, whether inside or outside the cellar. Includes 10 feet of wiring.
  • Bottle Probe #1434: this remote thermostat with a 10-foot cord overrides the thermostat on the face of the cooling unit, and allows it to monitor air or liquid temperatures at various locations inside the cellar.
  • Extension cords available in 25-foot (#1780) and 50-foot (#1781) lengths.


Other Options & Upgrades

  • Condensate Drain Line: strongly recommended for wine cellar installations that are not airtight, a drain line allows excess moisture to drain from the the cooling unit (#1606).

DID YOU KNOW?
Nobody protects your wine cellar better than CellarPro Cooling Systems! In the event your cooling unit fails and the failed components are covered by our warranty, we’ll send a replacement cooling unit to you per the terms of our Replacement Unit Program

CellarPro Replacement Unit Program
If your CellarPro cooling unit fails and the parts that failed are still covered by warranty, we’ll send a replacement cooling unit to you, as follows:

  1. Your cooling unit must be registered at CellarPro
  2. Your cooling unit must have been properly sized, installed and maintained
  3. Your cooling unit may not have been permanently modified, damaged or disfigured

Please note:

  • Replacement units are factory-refurbished cooling units with a similar build date as your original unit
  • You are responsible for the shipping cost to send the replacement unit to you and return the original unit to us, and the cost (if any) to remove the original unit and install the replacement unit
  • In order to send a replacement unit, we require a deposit, which will be refunded minus shipping costs upon the return and pending the inspection of the original unit
  • If the original unit failed due to improper intallation or use, the failure is not covered by warranty and we will deduct the cost of the repairs from the refund of your deposit
