1800 Duct Hood

CellarPro 1800 Duct KIT + Inline Fan (Hot Side) and 50′ of Duct RETROFIT
#1832

$465.00

Shipping:  $55.00

CellarPro 1800 Duct KIT (Hot Side) RETROFIT. This RETROFIT kit should be used if the cooling unit has already shipped. It includes:

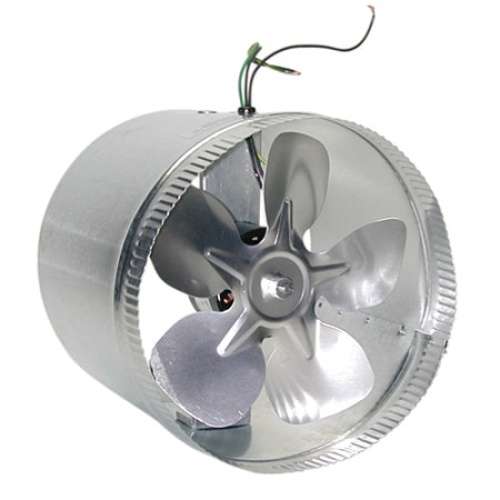

  • 6-inch inline fan (120 CFM)

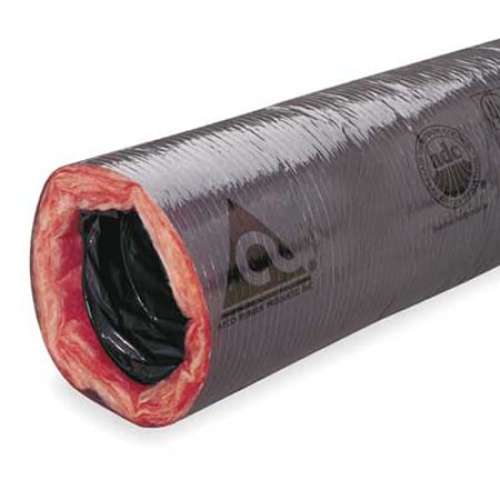

  • 50 feet (2×25 feet) of 6-inch insulated ducting (R-6)
  • Galvanized metal duct hood slides over the rear of the cooling unit and baffles the air intake and exhaust
  • RETROFIT WIRE HARNESS + 8-foot power line provides switched power for the inline fan to match the on/off cycle of the wine cooling unit

The duct hood is designed with an easy-access panel to replace the air filter (sold separately), and openings for the drain line and power cord.

SKU: CPRO-1832 Category:

RETROFIT Kit allows CellarPro 1800 Series cooling units to be ducted up to 100 equivalent feet (50 feet per duct) using 6-inch or greater ducting from start to finish. Order this kit if your 1800 cooling unit already has been shipped.

  • RETROFIT Rear Duct Kit for CellarPro 1800 Cooling Units
  • Inline fan (3000RPM, 120 CFM) has a permanently lubricated, impedance protected motor
  • Heavy gauge plated steel brackets
  • Switched power to match the cooling unit
  • 50 feet of 6-inch insulated ducting (R-6)
  • Designed to fit over the rear of all CellarPro 1800 wine cooling units
  • Includes an easy-access panel to replace air filters (sold separately)
  • Grommet openings for the drain line and power cord

Brand: CellarPro

Size: 18 1/4w x 6 3/4d x 10 1/4h (in)

Weight: 34 lbs

Power/Rating:
115V, 60 Hz, 0.6 amps (Inline Fan)

Capacity: 100 Equivalent Feet

Warranty:
1 Year

The depth of the hood includes 2 1/4 (in) for the 6-inch dia. duct adapters. The hood is designed to slide over the rear of the cooling unit, and will overlap the cooling unit by approximately 1-2 (in). Click on one of the following links for more information:



RETROFIT Kit allows CellarPro 1800 Series cooling units to be ducted up to 100 equivalent feet (50 feet per duct) using 6-inch or greater ducting from start to finish. Order this kit if your 1800 cooling unit already has been shipped.

  • RETROFIT Rear Duct Kit for CellarPro 1800 Cooling Units
  • Inline fan (3000RPM, 120 CFM) has a permanently lubricated, impedance protected motor
  • Heavy gauge plated steel brackets
  • Switched power to match the cooling unit
  • 50 feet of 6-inch insulated ducting (R-6)
  • Designed to fit over the rear of all CellarPro 1800 wine cooling units
  • Includes an easy-access panel to replace air filters (sold separately)
  • Grommet openings for the drain line and power cord
