CellarPro 1800 Duct KIT (Hot Side) with Inline Fan and 50′ of Duct
#1439

$425.00

Factory Installed

CellarPro 1800 Duct Kit (Rear) with Inline Fan. This kit includes:

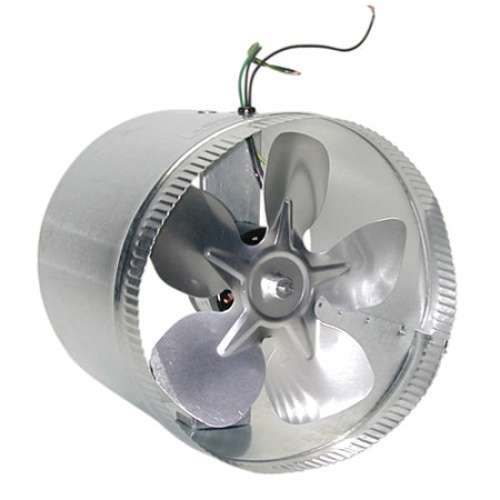

  • 6-inch inline fan (120 CFM)

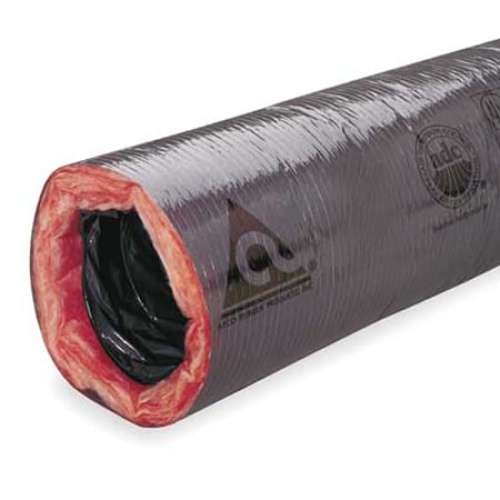

  • 50 feet (2×25 feet) of 6-inch insulated ducting (R-6)

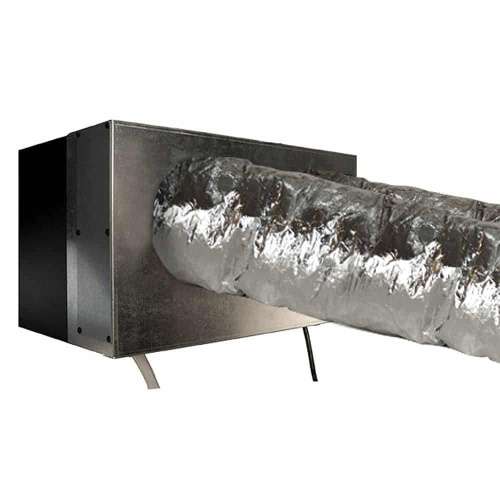

  • Galvanized metal duct hood slides over the rear of the cooling unit and baffles the air intake and exhaust
  • 8-foot power line provides switched power for the inline fan to match the on/off cycle of the wine cooling unit

The duct hood is designed with an easy-access panel to replace the air filter (sold separately), and openings for the drain line and power cord.

IF YOUR CELLARPRO 1800 COOLING UNIT ALREADY HAS SHIPPED WITHOUT WIRING FOR THE AUXILIARY FAN, DO NOT ORDER THIS ITEM. INSTEAD, ORDER OUR RETROFIT DUCT HOOD or KIT.

SKU: CPRO-1439 Category:

Allows CellarPro 1800 Series cooling units to be ducted up to 100 equivalent feet (50 feet per duct) using 6-inch ducting from start to finish (ducting must not be reduced).

  • Inline fan (3000RPM, 120 CFM) has a permanently lubricated, impedance protected motor
  • Heavy gauge plated steel brackets
  • Switched power to match the cooling unit
  • 50 feet of 6-inch insulated ducting (R-6)
  • Designed to fit over the rear of all CellarPro 1800 wine cooling units
  • Includes an easy-access panel to replace air filters (sold separately)
  • Grommet openings for the drain line and power cord

IF YOUR CELLARPRO 1800 COOLING UNIT ALREADY HAS SHIPPED WITHOUT WIRING FOR THE AUXILIARY FAN, DO NOT ORDER THIS ITEM. INSTEAD, ORDER OUR RETROFIT DUCT HOOD #7410 OR KIT #1832.

Brand: CellarPro

UPC: 077757014390

Size: 18 1/4w x 6 3/4d x 10 1/4h (in)

Weight: 30 lbs

Power/Rating:
115V, 60 Hz, 0.6 amps (Inline Fan)

Capacity: 100 Equivalent Feet

Warranty: 1 Year

The depth of the hood includes 2 1/4 (in) for the 6-inch dia. duct adapters. The hood is designed to slide over the rear of the cooling unit, and will overlap the cooling unit by approximately 1-2 (in). Click on one of the following links for more information:

Allows CellarPro 1800 Series cooling units to be ducted up to 100 equivalent feet (50 feet per duct) using 6-inch ducting from start to finish (ducting must not be reduced).

  • Inline fan (3000RPM, 120 CFM) has a permanently lubricated, impedance protected motor
  • Heavy gauge plated steel brackets
  • Switched power to match the cooling unit
  • 50 feet of 6-inch insulated ducting (R-6)
  • Designed to fit over the rear of all CellarPro 1800 wine cooling units
  • Includes an easy-access panel to replace air filters (sold separately)
  • Grommet openings for the drain line and power cord
