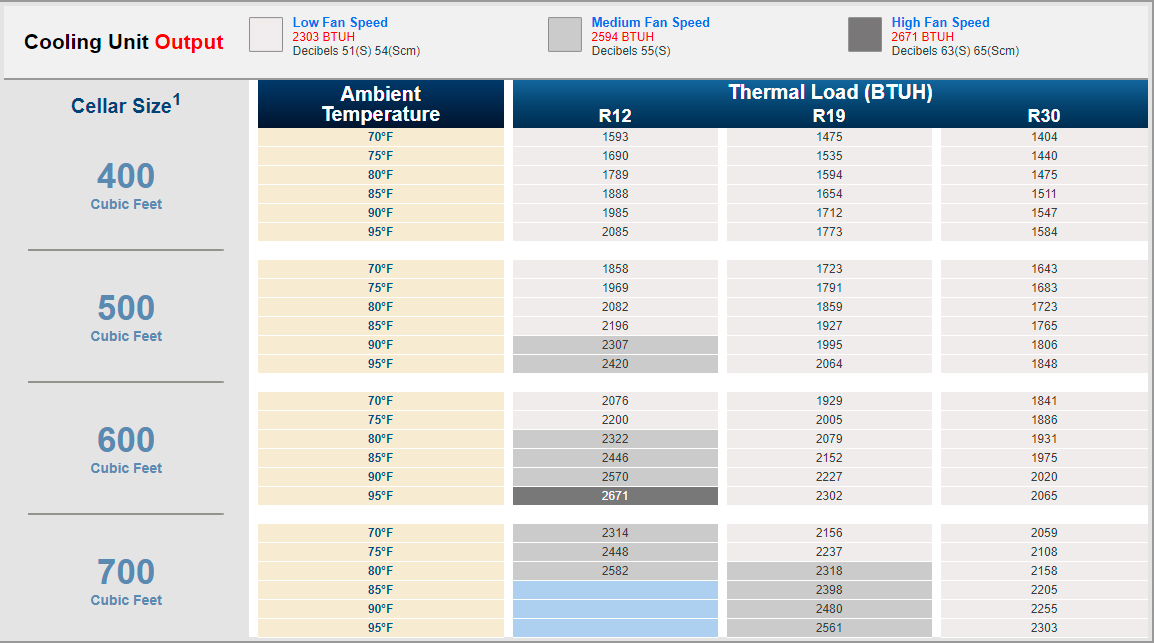

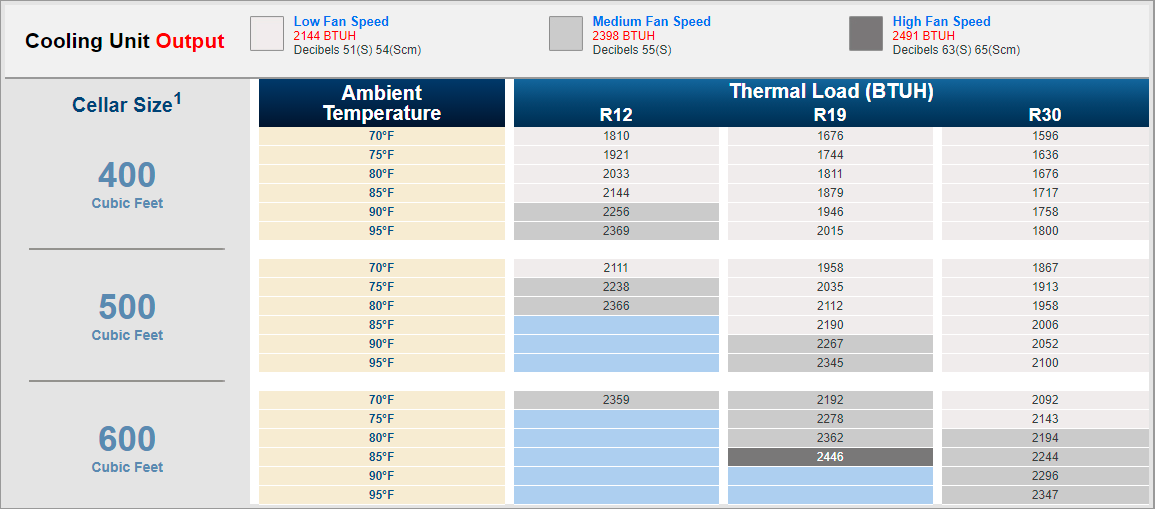

The upper sizing table 400-300 shows how the CellarPro mini-split 3000S/Scm refrigeration unit will work at maintaining 55°F. The lower sizing table 400-300 at maintaining 60°F.  Inside the wine cellar using various fan speeds. And under different thermal loads. The thermal loads are derived from assumptions about the size of the cellar. The R-value in the six cellar surfaces (ie walls, floor and ceiling).  And the ambient temperature outside the cellar. CellarPro mini-split 3000S/Scm refrigeration units are designed. To maintain optimal wine storage temperatures.  In wine cellars with adequate insulation. And can be operated with the condenser exposed to conditions up to 110°F.

For more information. Click on the 3000S/Scm mini-split performance and test data.



(1) The thermal loads in the table above are calculated based on the R-Values. Shown for all walls and ceiling, and a concrete floor. Lower R-Values in the cellar (eg from glass doors) will increase the thermal load on the wine cellar. And will require the cooling unit to operate at higher fan speeds. Warmer climates require higher insulation to enable the cooling unit. To operate at lower fan speeds. To be certain that the thermal load won’t exceed the capacity of the cooling unit.  Email your wine cellar specifications to us. And we’ll be glad to assist you.

Cells shaded blue indicate loads. That exceed the capacity of the cooling units shown in this table.

For reference purposes.  The calculated BTUH at 55° for WhisperKool Platinum Mini is 1465. And the calculated BTUH at 60°F is 1590 in this table. For more details visit our website.
